Variable inductors

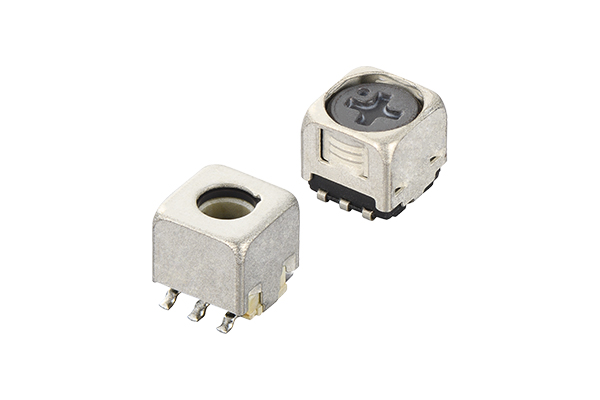

Variable inductor products are coil products that allow the inductance to be easily varied by changing the position of the ferrite core in a threaded structure.
The interior is covered by a metal case that is magnetically shielded, while a resin molded structure protects the windings with a high degree of reliability.

Variable inductors

Product Lineup
Specifications
Other documentation
Inquiries

Product Lineup

5CCEG
6.5×5.9×6.0(H) mm MAX.

Supported inductance range：0.05 to 2.7uH

Features

High reliability that conforms to automotive standards
Operating temperature range:
-40°C to +85°C

Applications

Ideal for use as RF matching transformers for car tuners

FSDVA
5.8×5.8×5.5(H) mm MAX.

Supported inductance range：0.1 to 52 mH(1 to 7 mH for corner sensor applications)

Features

Resistant to mechanical stress
Operating temperature range:
Up to 20 mH (-40°C to +105°C) 20 mH or more (-40°C to +85°C)
High reliability that conforms to automotive standards
Lead coplanarity guaranteed within 0.1 mm

Specifications

Surface mount variable coil

5CCEG series
Part Number	Test Frequency (MHz)	Resonance Capacitor Range (pF)	UnloadedQ	Specifications Sheet
#A1313AN-0001GGH=P3	100	11.4 +3/-3%	72 +/-20%	-
Replacement products #A1313B-0029GGH=P3	100	11.4 +3/-3%	72 +/-20%
#A1313AN-0002GRG=P3	100	11.4 +5/-2%	61 +/-20%	-
Replacement products #A1313B-0030GRG=P3	100	11.4 +5/-2%	61 +/-20%
#A1313AN-0003GRG=P3	100	11.4 +2/-4%	54 +/-20%	-
Replacement products #A1313B-0031GRG=P3	100	11.4 +2/-4%	54 +/-20%
#A1313AN-0004GGH=P3	100	11.7 +3/-3%	72 +/-20%	-
Replacement products #A1313B-0032GGH=P3	100	11.7 +3/-3%	72 +/-20%

FSDVA series
Winding Connection (Bottom View)	Part Number	Test Frequency (kHz)	Inductance Range (mH)	UnloadedQ	Specifications Sheet
	N1342JC-0143UG=P3	252	4.4 +3/-3%	25min
	N1342LE-0144BQE=P3	252	2.5 +5/-5%	25min

Other documentation

RoHS certificate of compliance / REACH SVHC certificate of compliance

Environment-related documents (RoHS Certificate of Compliance / REACH Certificate of Compliance) are available for download here.

MSL (Moisture Sensitivity Level)

The moisture sensitivity level (MSL) for each product is listed here.
Use this information to assess details such as the functionality of any products you may be considering.

Structure diagram, Materials chart

Structure diagram, Materials chart by series.
