LPWA ProductsType 2GD LBAD0ZZ2GD

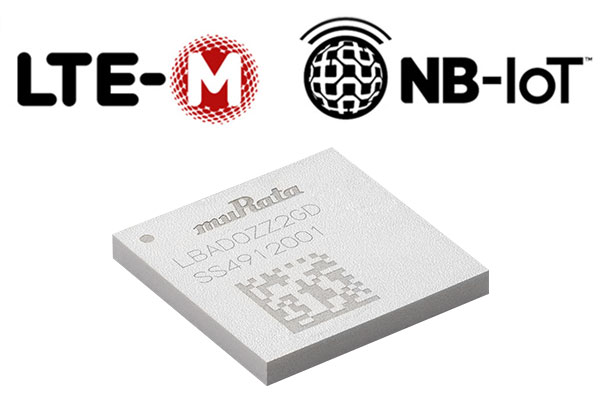

Type 2GD is an ultra-small, ultra-low power Cat.M1 IoT module. It integrates the LTE SoC, RF front end, crystal and SRAM and flash memory.

Product Status

Series Overview
Block Diagram
Technical Support
Application Guide

Minimum Order Quantity	2000
Product Type	Module
Part Name	LBAD0ZZ2GD
Grade	Industrial
Support LTE Band	Low Bands 5, 8, 12, 13, 14 (Cat.M1 Only), 17, 18, 19, 20, 26, 28 Mid Bands 1, 2, 3, 4, 25
Chipset	ALT1350
Modulation	3GPP Release 14
Antenna	External (Find out more)
System Clock	Integrated 26MHz (TCXO) & 32KHz (X'Tal)
Operating Temp Min	−40
Operating Temp Max	85
Type Mounting	LGA
Type Package	Resin Mold
Dimension	10.8 × 11.0 mm (typ), 1.35mm (max)
Interface Voltage	1.8v
Supply Voltage	VBAT 2.2-4.6V VBAT_FEM 2.5-5.5V
Transmit Power	+23dBm max
Power Class	Optimized for Class 3 LTE output power
Sleep Mode Current	eDRX Current Consumption (avg) / Cat.M1 10.6 µA PSM Current Consumption (avg) / Cat.M1 1.3 µA
Host Interface	UART
RoHS	Yes

Series Overview

LTE Cat.M1 compliant with 3GPP release 14 to ensure operation with 5G networks.
Hardware-based dedicated security.
Advanced silver-free resin packaging technology for high reliability and ease of assembly.
Small size: 10.8 × 11 × 1.35mm

Ultra-low Power:

80% reduction in eDRX mode compared to previous generation
85% reduction in sending short messages compared to previous generation
4x better battery life for typical IoT application compared to previous generation

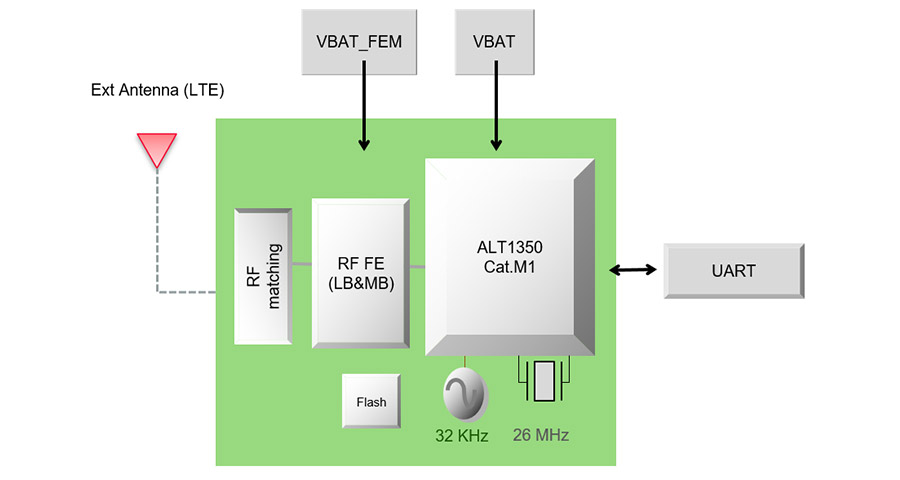

Block Diagram

Technical Support

Technical support documents

Application notes, datasheets, etc.
are available here for reference. For additional documents:

Type 2GD technical support documents page

Evaluation kits and steps before implementation

See here for the available evaluation kits and the steps before implementation.

Evaluation kit page

Application Guide

Standard examples of application

Typical applications for this module includes smart metering, wearables, tracking, M2M and internet of things (IoT) edge nodes.
Accomodating a wide range of temperature.
IoT Business Cases, which presents a number of new IoT application concepts, is available for download.

*Click the image above to download IoT Business Cases.
