Approved Murata RF filters for Texas Instruments wireless ICs

A direct reference for matching selected Texas Instruments IC series to approved Murata RF filter options by part number, passband, package size, RF function, and current status.

View product lineup Contact Murata

Product Lineup

Approved RF filters by Texas Instruments IC series

Select the TI IC series first, then compare approved Murata filter options by passband, package, RF function, and status.

CC112X
CC131x
CC1352P / CC1352R
CC131XP / CC1352P / CC1354P
CC140xP

Selected TI wireless IC series and approved Murata RF filter options
TI IC	Murata part no.	Passband	Size & height	RF function	Production	Approval
CC112X	LFD21868MMF1D386	2400-2500 MHz	2.00 x 1.25 x 0.7 mm	Sub-GHz dual matching filter	MP	Approved
CC131x	LFB18868MBG9E212	863-876 MHz902-928 MHz	1.6 x 0.8 x 0.65 mm	Balance matching band pass filter	MP	Approved
CC1352PCC1352R	LFB21868MDZ5E757	863-870 MHz2402-2480 MHz	2.00 x 1.25 x 0.7 mm	Band pass filter	MP	Approved
CC1352PCC1352R	LFB21433MDZ6F112	426-435 MHz2402-2480 MHz	2.00 x 1.25 x 0.7 mm	Band pass filter	MP	Approved
CC131XPCC1352PCC1354P	LFB21892MBGGF670* For HPA only	863-928 MHz	2.00 x 1.25 x 0.7 mm	Band pass filter	MP	Approved
CC131XPCC1352PCC1354P	LFB182G45BGEF296* For HPA only	2400-2480 MHz2402-2480 MHz	1.60 x 0.80 x 0.65 mm	Band pass filter	MP	Approved
CC140xP	LFB21892MBGGF964	863-928 MHz	2.00 x 1.25 x 0.7 mm	Band pass filter	MP planned CQ2 2026	Approved

Product availability, approved status, and mass-production timing should be confirmed with the appropriate Murata representative before final design selection.

Why Murata

RF filter experience behind the approved line-up

Murata support for these TI wireless IC series is backed by long-running RF filter production, supplier scale, and application experience across connected wireless systems.

Production history

RF filter production since 1989

More than 35 years of RF filter production background for wireless and connectivity applications.

Supplier scale

43% market share

Murata is shown with 43% market share in the provided RF filter reference material.

Application coverage

Broad RF design experience

Experience across low-power wireless, cellular, connectivity equipment, M2M, and infrastructure applications.

IoT
Cellular
AP / CPE
M2M
Base station

Technical Reference

Supporting RF filter information

Optional background for engineers who need context on LTCC integration, board-space reduction, and final selection checks.

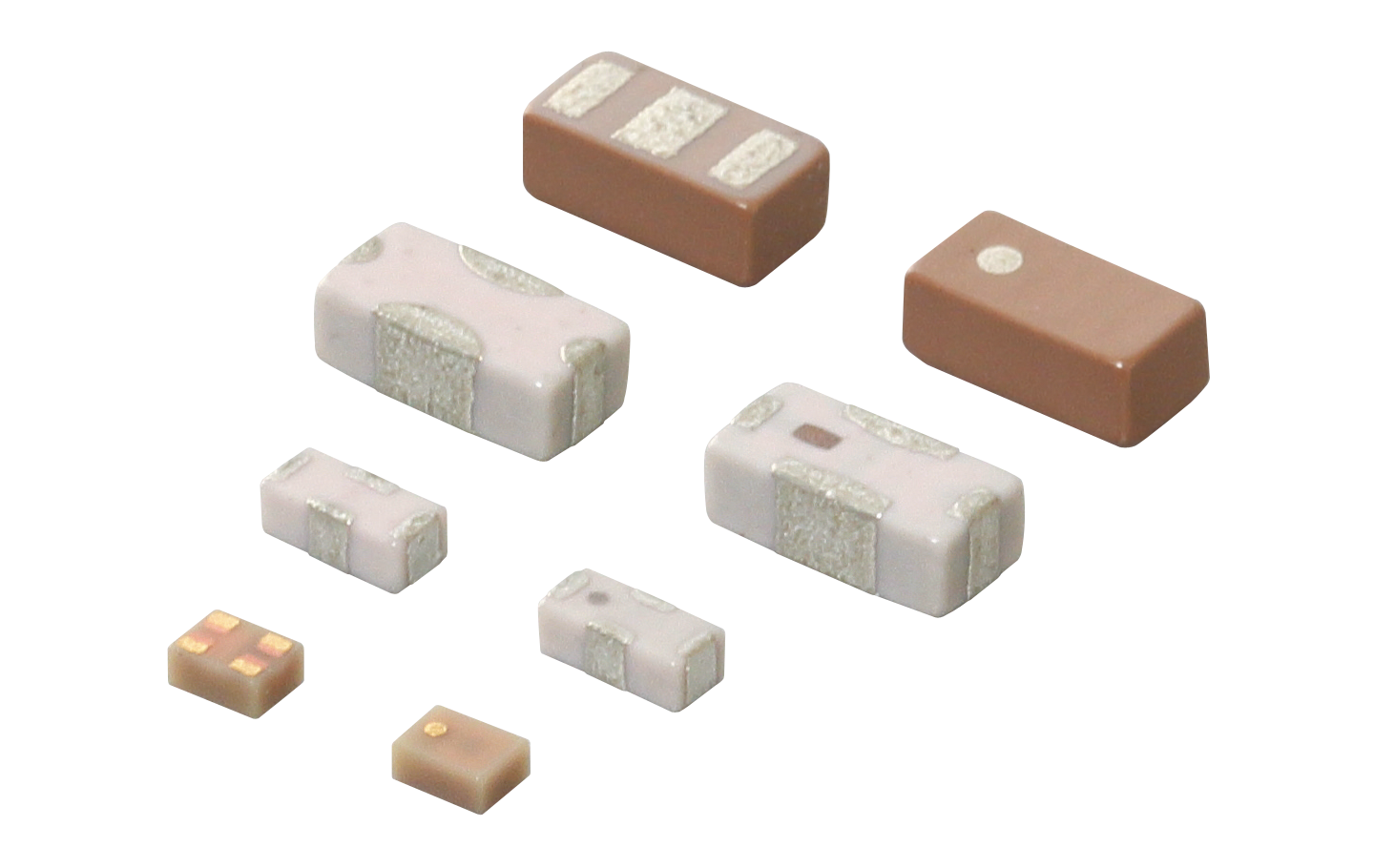

LTCC technology

LTCC, Low Temperature Cofire Ceramics, combines multilayer ceramic substrates with embedded passive structures.

Ceramic sheets are stacked to form a compact multilayer substrate.
Electrode patterns create passive elements such as inductors, capacitors, ground patterns, and strip lines.
Multiple RF functions can be integrated into one compact module or chip structure.

Board-space benefit

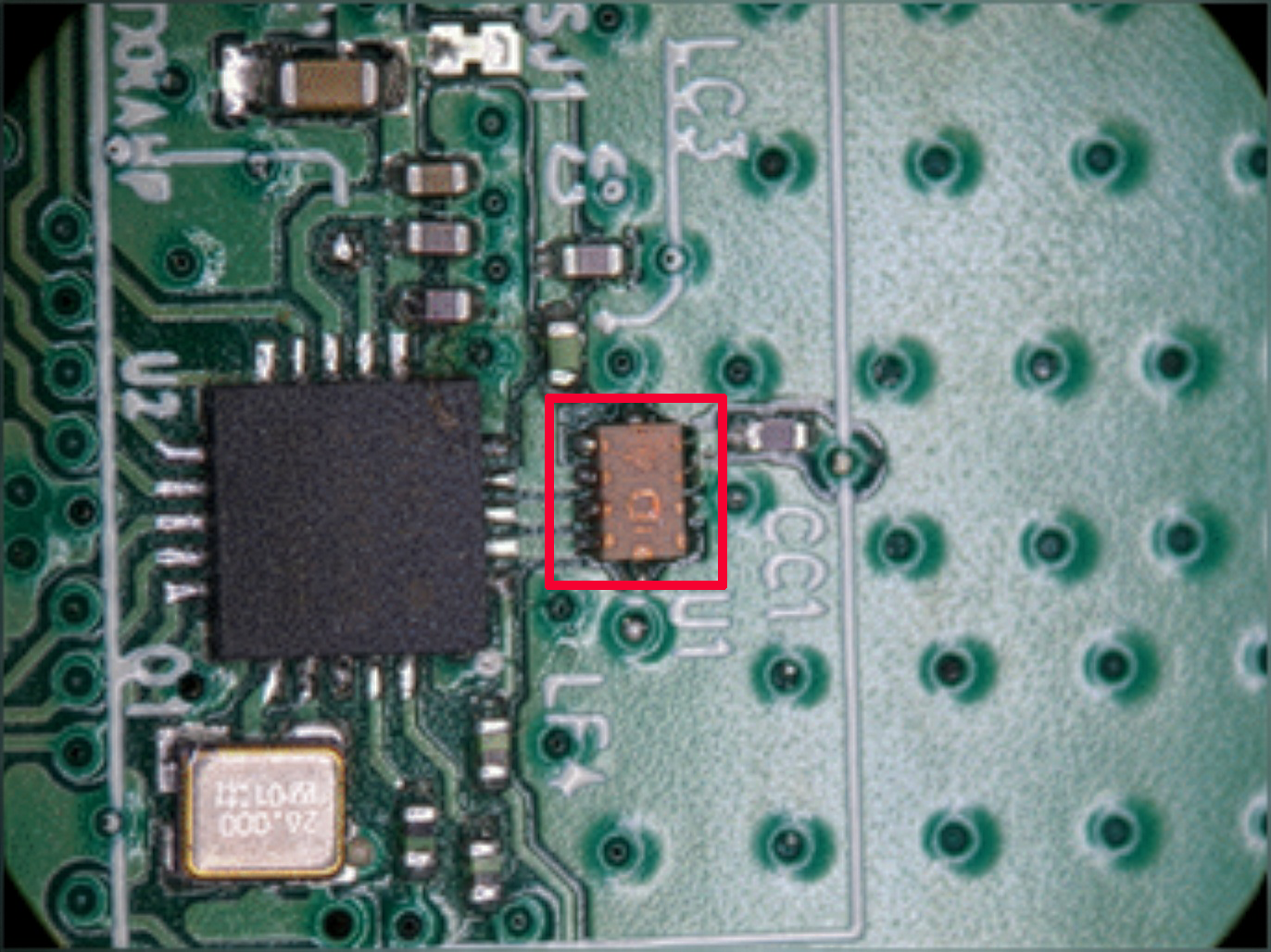

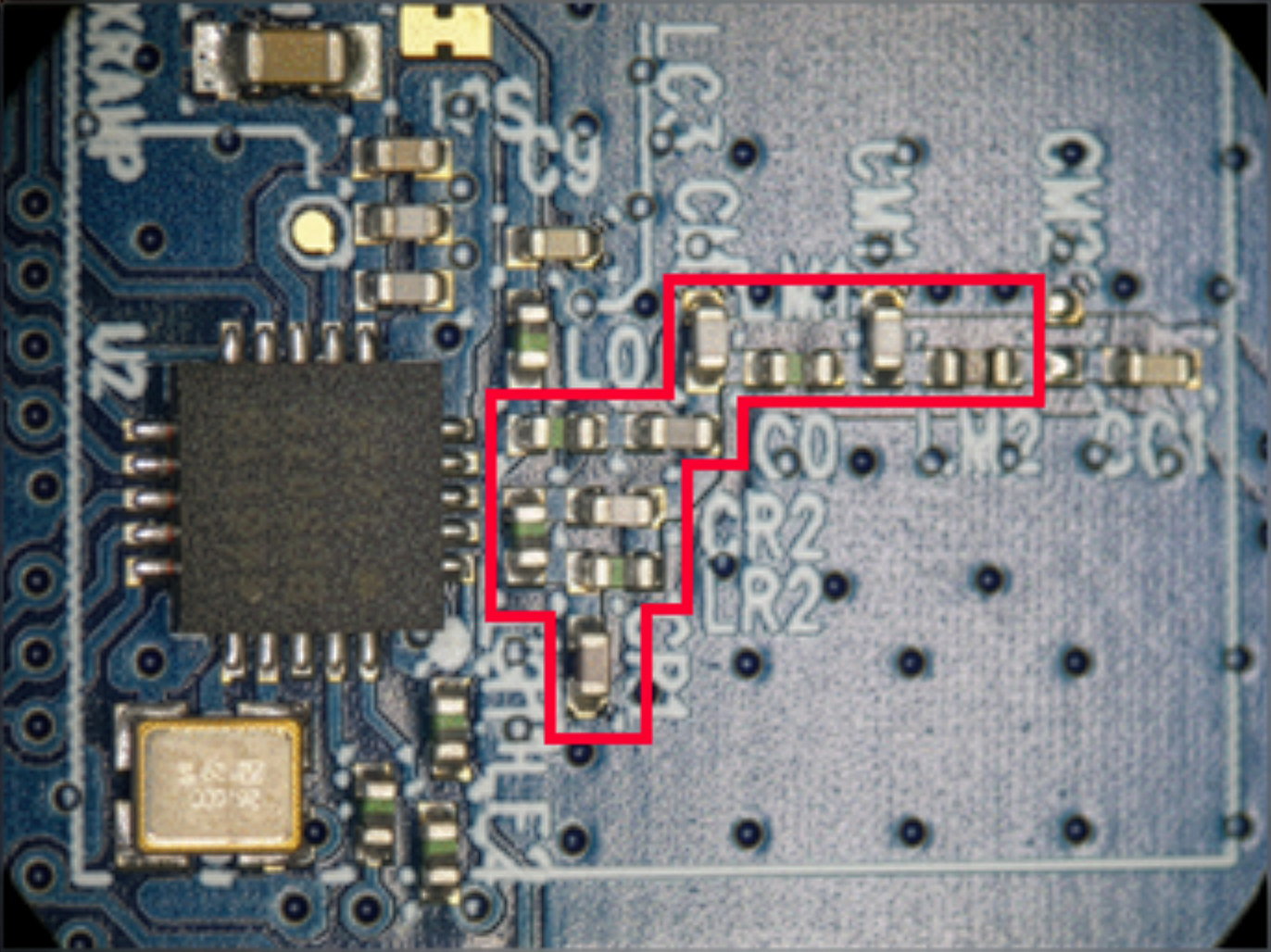

Replacing a discrete L&C circuit with an LTCC filter can consolidate multiple passive components into one compact chip.

11 pcs L&C

Just 1 chip

Selection notes

Use the TI IC series as the first lookup key.
Confirm passband alignment with the target regional frequency plan.
Confirm package constraints, layout requirements, and production timing with Murata before final selection.
