TVS Diodes (ESD Protection Devices) FAQ QImplementation evaluation

Sample : 01005 size or 0201 size

Test result

Level	Load	Stress (Reference value)	Test result NG / G
A	+0.7mm	13N	0 / 25
B	+0.4mm	4N	0 / 25
C	+0.3mm	3N	0 / 25

Equipment	:	SIGMA-G5
Nozzle	:	Buffing Nozzle (With shock absorption mechanism) (01005 : HG22C / 0201 : HG33C)
Speed	:	Maximum 130000 [cph]

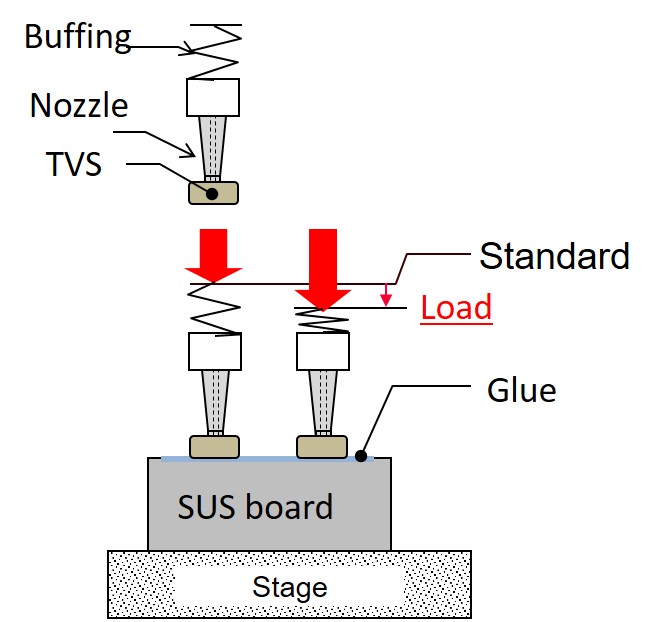

Test Method
