Murata introduces lead type multilayer ceramic capacitors for 200°C automobile use

  • Capacitor


Murata Manufacturing Co., Ltd.
President/Statutory Representative Director:
Tsuneo Murata

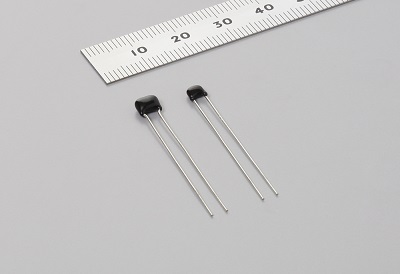

Murata Manufacturing Co., Ltd. developed the RHS series of lead type multilayer ceramic capacitors for automobile use at maximum usage temperature of 200°C. The rated voltage lineup includes 200Vdc and 500Vdc, and the range will be expanded hereafter. These products are primarily meant for use in equipment located in severe temperature environments such as the engine compartment  of an automobile. Production starts in May 2017.


A power train control system uses a DC motor drive to increase control in order to improve the fuel economy of an automobile. A capacitor is used to suppress the electrical noise generated by this DC motor. The automobile control equipment is mounted in an extreme environment, where temperatures can approach 200°C for short periods of time. A high degree of durability is needed for a capacitor that is implemented in this environment. The new Murata product applies a coating of newly developed heat resistant resin around a highly heat resistant multilayer ceramic capacitor, allowing use at a 200°C maximum temperature. The company expects to expand sales of products for equipment mounted in high temperature environments such as engine rooms.


Complies with AEC-Q200*1 and therefore the lead wire type capacitor can be connected by welding or “crimping*2” close to a noise generating source.
Passes the extreme surge test of the ISO7637-2*3 standard.

Electrical Performance

Usage Temperature Range: -55°C~200°C
Temperature Characteristics: 7J Characteristic (See table below.)

Standard Temperature
Temperature Range
Temperature Coefficient
25 -55~25 -750 +120/-347
25~125 -750 ±120
125~200 -750 +347/-120
Rated Voltage: 200Vdc and 500Vdc
Electrostatic Capacity: 100pF~0.01uF

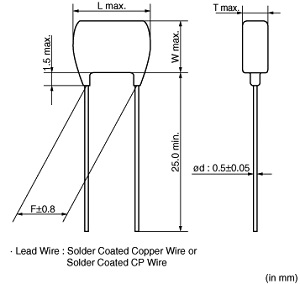

External Dimensions

LxW: 4.0×3.5mm or 5.5×4.0mm (Determined by the combination of rated voltage and electrostatic capacity.)
F: Can be selected from either 2.5mm or 5.0mm

About Voltage/Temperature Derating

When the temperature of the product is to exceed 150°C, usage should be with reduction of the voltage to be applied to the capacitor for the rated voltages shown below.

Explanation of Terms

*1 AEC-Q200: Test standards for reliability sought in automobile electrical parts, as decided by the Automotive Electronics Council.

*2 Crimping: A metal component or fitting is fastened using a pliers or custom tool without using an adhesive

*3 ISO7637-2: Test standards for checking durability against noise generated by automobile electrical equipment.
