■Soldering Condition with iron
Pre-heating（60 to 80ﾟC, 10 sec. min)
|
Component Part
|
Temperature (ﾟC)
|
Time (sec. max.)
|
|

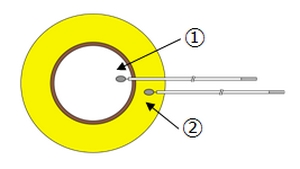

①
|
Electrode
|
320 to 350
|
0.5
|
|
②
|
Metal Plate
|
410 to 450
|
3.0
|
■ Position
The farthest position from the center of the Piezoelectric Diaphragm is recommended, because the soldering point works as a load that restricts its oscillation.
The lead wire should also be as fine as possible. (Ex: AWG32).
