CERALOCK have two built-in load capacitors inside, CL1
at input side and CL2
at output side. Capacitance value of CL1
are not completely equal.

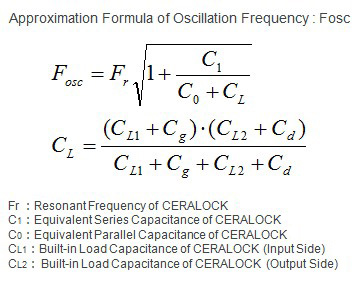

Oscillation frequency : Fosc is approximated by following formula.
When CERALOCK is mounted in opposite side, positions of built-in load capacitors CL1
are switched. Because of the difference of capacitance value of CL1
, frequency correlation occur.
