    Vibration Sensor Devices FAQ QWhat are the recommended land information and precautions for the vibration sensor devices?

    A
    • Since TEST1 and TEST2 terminals are inspection terminals, short circuit between the two terminals on the board and do not connect them to other terminals.
    • Since the outer top and side surface except the bottom of the product are covered by shield electrode (the same potential as GND), design the substrate so that the opening land and the outer surface of the product are not adjacent as over resist.

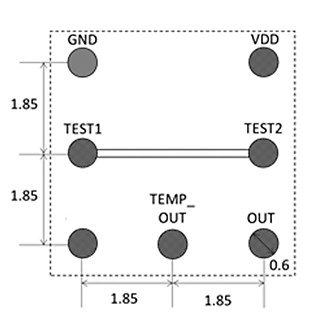

    Fig of Standard soldering pattern

    Standard soldering pattern (Top View)
    Opening Land Pitch : 1.85mm
    Opening Land Diameter : 0.6mm
