ESD Protection Devices (anti-static components) FAQQImplementation evaluation

A
Sample : 01005 size or 0201 size

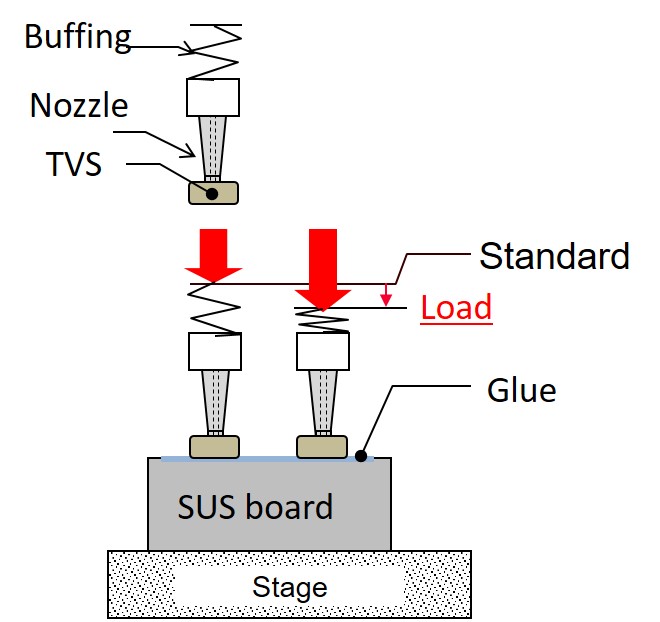

Test Method
Test result
Level Load Stress
(Reference value)
Test result
NG / G
A +0.7mm 13N 0 / 25
B +0.4mm 4N 0 / 25
C +0.3mm 3N 0 / 25
Equipment : SIGMA-G5
Nozzle : Buffing Nozzle
(With shock absorption mechanism)
(01005 : HG22C / 0201 : HG33C)
Speed : Maximum 130000 [cph]
