General Circuits inductor Selection Guide

Main type

  • Multilayer type
  • Wire-wound type
  • 2-in-1 type
General Circuits inductor Main type: Multilayer type / Wire-wound type / 2-in-1 type

We have an extensive lineup of general purpose inductors for a variety of circuits.
You can select an inductor to match your particular application. Wire-wound type LQH_M, LQH_N series are suitable for large inductance, multilayer type LQM_M, LQM_N series are suitable for small size.

In addition, we have the 2-in-1 type HEAWS series inductors for digital audio amplifiers.

Lineup

Infotainment
The product for entertainment equipment like car navigations, car audios, and body control equipment like wipers, power windows.
Please note that it cannot be used for products which require high reliability, including powertrains and safety equipment.
Powertrain
The product for high reliability applications like powertrain and safety, in addition to infortainment applications.
Swipe left or right to change screens View in landscape mode.
General purpose (For General)
Size Code
in inch
(in mm)
Structure short series name/view Series Thickness
(mm/max)
Inductance Range Rated Current Range specifications
sheet
Part Number
List
0402
(1005)
Wound
Ferrite Core
Type
LQW15CA LQW15CA LQW15CA_00 0.66 22nH - 2µH 130mA - 1.3A Open PDF file Click
0603
(1608)
LQW18CA image LQW18CA_00 0.95 32nH - 580nH 450mA - 2.2A Open PDF file Click
1206
(3216)
LQH31MN image LQH31MN_03 2.0 150nH - 100µH 45mA - 250mA Open PDF file Click
1210
(3225)

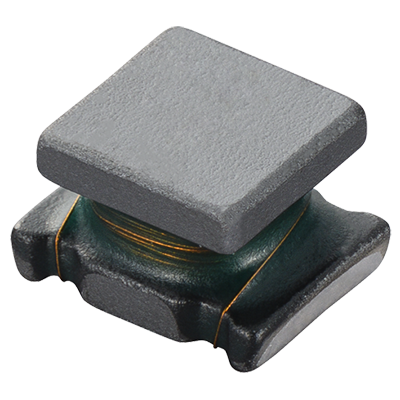

LQH32MN image LQH32MN_23 2.2 1µH - 560µH 40mA - 445mA Open PDF file Click
4mm
square

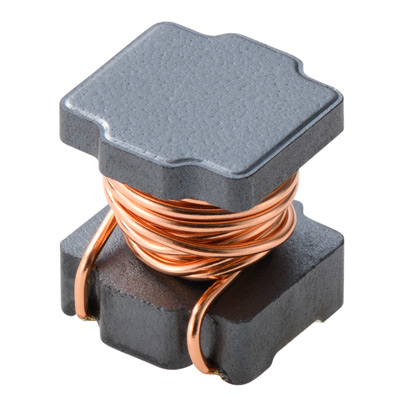

LQH44NN image LQH44NN_03 4.5 510nH - 470µH 145mA - 4.5A Open PDF file Click

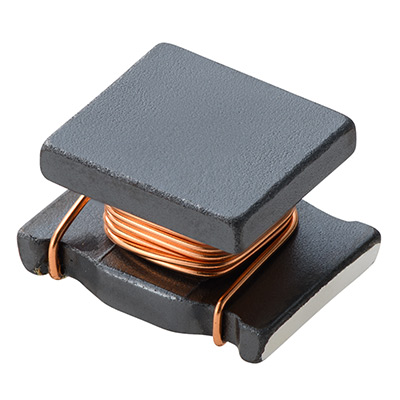

LQH43M/N image LQH43MN_03 2.8 1µH - 1.5mH 40mA - 500mA Open PDF file Click
LQH43NN_03 2.8 1µH - 2.4mH 25mA - 500mA Open PDF file Click
0402
(1005)
Multilayer
Type
LQB15NN image LQB15NN_10 0.55 220nH - 560nH 300mA - 380mA Open PDF file Click
0603
(1608)
LQB18NN image LQB18NN_10 0.95 220nH - 560nH 300mA - 450mA Open PDF file Click

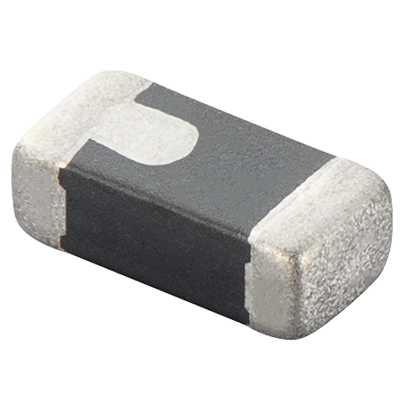

LQM18JN image LQM18JN_00 0.65 100nH - 160nH 550mA - 650mA Open PDF file Click
LQM18NN image LQM18NN_00 0.95 47nH - 2.2µH 15mA - 50mA Open PDF file Click
0805
(2012)
LQM21NN image LQM21NN_10 1.05 100nH - 4.7µH 30mA - 250mA Open PDF file Click
Swipe left or right to change screens View in landscape mode.
General purpose (For Automotive Infotainment)
Size Code
in inch
(in mm)
Structure short series name/view Series Thickness
(mm/max)
Inductance Range Rated Current Range specifications
sheet
Part Number
List
1210
(3225)
Wound
Ferrite Core
Type
LQH32NZ image LQH32NZ_23 2.2 1µH - 470µH 45mA - 445mA Open PDF file Click
4mm
square
LQH43NZ image LQH43NZ_03 2.8 1µH - 2.4mH 25mA - 500mA Open PDF file Click
10mm square
and over
2in1 type HEAWS image HEAWS 10.0 3.3µH - 10µH 5A - 8A Open PDF file Click
Swipe left or right to change screens View in landscape mode.
General purpose (For Automotive Powertrain)
Size Code
in inch
(in mm)
Structure short series name/view Series Thickness
(mm/max)
Inductance Range Rated Current Range specifications
sheet
Part Number
List
1210
(3225)
Wound
Ferrite Core
Type
LQH32NH image LQH32NH_23 2.2 1µH - 560µH 40mA - 780mA Open PDF file Click
4mm
square
Wound
Ferrite Core
Type
LQH43NH image LQH43NH_03 2.8 1µH - 2.2mH 30mA - 1.3A Open PDF file Click
