    Vibration Sensor Devices How to Use PKGX-22-4041 Vibration Sensor Device Operating Sample Evaluation Boards

    You can easily experience vibration sensor device characteristics and abnormality detection with these evaluation boards. Measure vibrations and then visualize abnormal vibrations using FFT analysis.

    Vibration Sensor Device Operating Sample Evaluation Board Shapes

    Murata Manufacturing has two types of vibration sensor device operating sample evaluation boards available: a screw fixing type and an adhesive tape type.
    We will provide the evaluation boards after having a meeting with you and making other preparations.
    If you are interested in these evaluation boards, please contact us at .

    How to Connect the Vibration Sensor Device Operating Sample Evaluation Boards

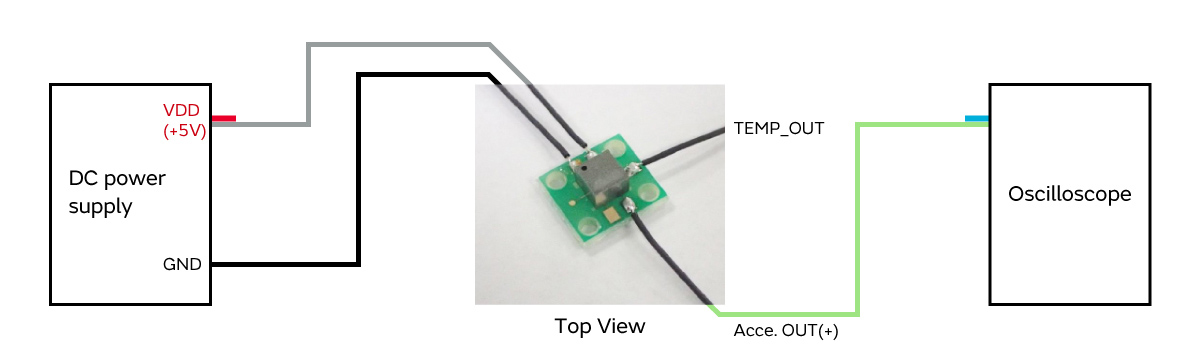

    • Please connect the leads as shown in the diagram below.
    • If measuring acceleration, connect the VDD to a DC power supply and supply 5 Vdc.
    • Next, please connect the acceleration output (OUT) to an oscilloscope.

    P/N : PKGX-22-4041

    Fig.1
    • *Note : If using PKGM-200D-R (differential output model) without using the acceleration output (OUT−), the acceleration output (OUT+) will be halved.

    How to Fix the Evaluation Boards in Place

    • Please mount the evaluation board to the device under test (DUT) with adhesive or screws.
    • To measure high-frequency vibrations, it is important to fix the evaluation board in place to the DUT without any gaps. For the initial evaluation, you can use double-sided tape or Kapton tape.
    • However, for more accurate measurements, we recommended fixing the evaluation board in place with adhesive or screws rather than double-sided tape.
    • *We do not recommend mounting the evaluation boards with soft materials as it will impede high-frequency transmission.
    Fig.2

    Evaluation Sample Purchases

    We will provide the evaluation boards after having a meeting with you and making other preparations. If you are interested in these evaluation boards, please contact us at .

    Small Vibration Sensor Devices Failure Detection Demo Video

    You can view a demo video here that clearly shows the detection of failures by vibration sensor devices.
