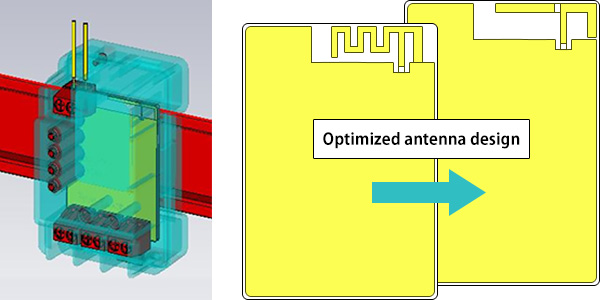

Antenna design support by simulation

• We can evaluate the antenna performance before PCB prototyping
• We can propose how to get better antenna performance

• 3D CAD data (format: .stp, .sat)
• Schematics and PCB Layout for distinguishing the target antenna and proposing an optimized antenna design

Antenna performance evaluation by measurement

• We can measurement Return Loss waveform data, Efficiency, Antenna Gain and Directivity
• Murata can propose the optimized matching components, and can propose the improvement plan for customer's antenna

• The customer's product with the exterior case (At least one, two sets are preferable)

• Disassembling manual for exposing the antenna to be measured
• Schematics and PCB Layout for distinguishing the target antenna
• If possible, Murata approval is needed, for not returning the test products (This is not mandatory requirement)
