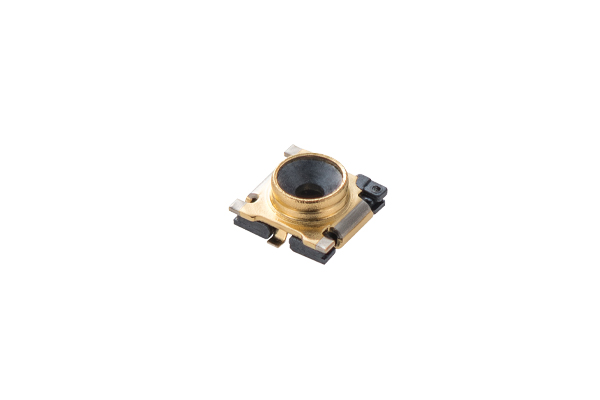

    RF / Microwave Coaxial Connectors with SwitchSWG Series

    Part Number : MM8030-2610

    SWG Series

    Features

    1. The RF / Microwave coaxial connector with switch is very useful for electrical characteristics measurement of microwave circuit for PC, tablet and cellular phone.
    2. Nominal Frequency Range is DC to 11GHz.
    3. Size 2×2×0.9mm (L×W×H), Occupation area 4mm2
    4. Excellent characteristics, low IL 0.2dB max. (@6GHz) and 0.5dB max. (@11GHz) V.S.W.R. 1.3 max. (DC to 6GHz) and 1.5 max. (6GHz to 11GHz)
    5. Connector durability is 100 cycles with probe.

    Characteristics

    Specs

    Swipe left or right to change screens View in landscape mode
    Part Number Center Contact Resistance
    (mΩ max.)    		 Withstanding Voltage
    (Vrms)    		 Insulation Resistance
    (MΩ)    		 Durability
    (Cycle)    		 Nominal Frequency Range (GHz) VSWR
    (dB max.)    		 Insertion Loss (On)
    (dB max.)    		 Isolation (Off)
    (dB min.)
    MM8030-2610# 70 300 500 100 Up to 11 1.2 (DC to 3GHz)
    1.3 (3GHz to 6GHz)
    1.5 (6GHz to 11GHz)     		0.1 (DC to 3GHz)
    0.2 (3GHz to 6GHz)
    0.5 (6GHz to 11GHz)     		20 (DC to 3GHz)
    15 (3GHz to 6GHz)
    10 (6GHz to 11GHz)

    "#" indicates the package specification code.

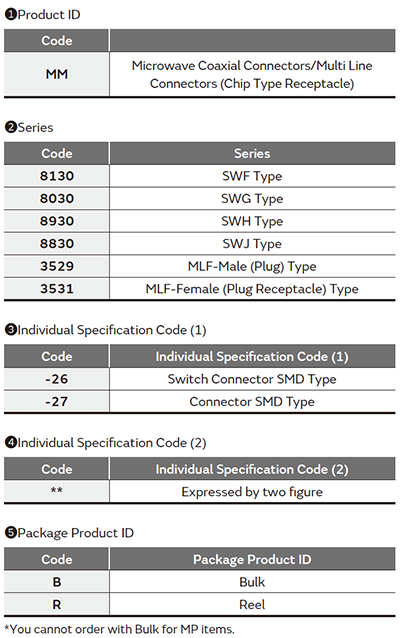

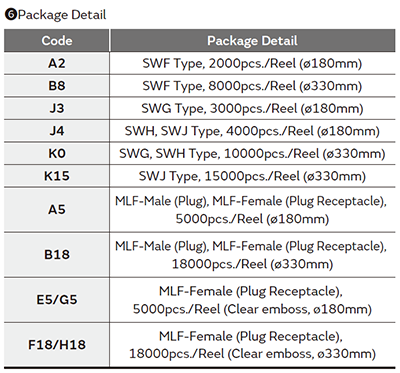

    See here for how to read part numbers and package specification codes
    • Nominal Impedance : 50Ω
    • Rated Voltage : 30Vrms
    • Temperature Rating : −40 to 85°C

    Specification (Insertion Loss & VSWR)

    Figure of specification This data is reference only.

    Measurement method of switch connectors

    Removing test fixture characteristics from the overall measured results.

    Figure of measurement method
    • ① Network Analyzer Port 1
    • ② Network Analyzer Port 2
    • ③ Microwave Coaxial Cable
    • ④ Interface Connector
    • ⑤ Printed Circuit Board Transmission Line
    • ⑥ Microwave Switch Connector

    Packaging Information

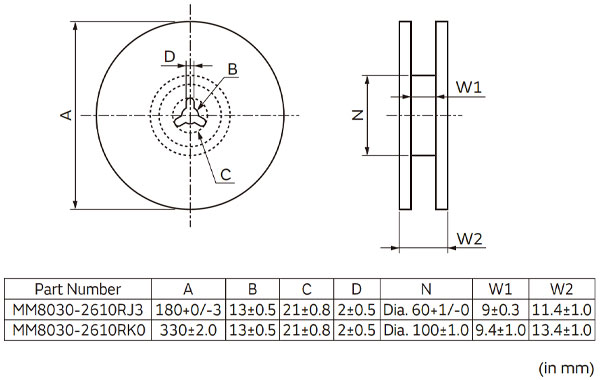

    Reel Dimensions Diagram

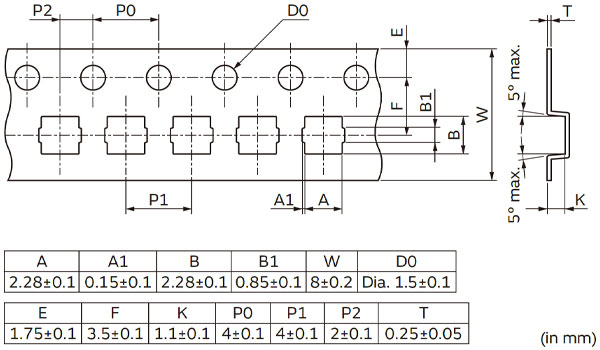

    Tape Dimensions Diagram

    Minimum Number of Units for Each Order

    • MM8030-2610RJ3 : 180 mm dia. reel/3000 pcs
    • MM8030-2610RK0 : 330 mm dia. reel/10000 pcs

    Probe Lineup

    SWG probe lineup

    Swipe left or right to change screens View in landscape mode
    Auto probe with floating mechanism Manual probe Calibration adapter
    SMA type SMPM type With cable No cable Straight type Right angle type
    MM126330 PDF MM206417 PDF MXHQ87WJ3000
    (SMA-Female, 300mm) PDF     		MM126311 PDF MM126317 PDF MM126312 PDF
    MXHQ87WJ1000
    (SMA-Female, 100mm) PDF
    MXHQ87WS3000
    (SMA-Female, 300mm,
    Low height)     PDF
    A description of probes can be found here

    Technical Support

    "my Murata Connector Site" Website for Members

    Design support data Open in New Window

    You can download 3D Models (STEP), 3D CAE Data (For Ansys HFSS™), instruction manuals, and more here.

    See all
    • *We have posted this data on the "my Murata Open in New Window " website for members. You need to create a my Murata account, log into it, and then apply to use the "Connector Site" to view the data.
    Inquiries

    Send your inquiry
    SimSurfing Open in New Window

    The software 'SimSurfing' simulates the characteristics of Murata products.
