    General Circuit Inductor

    General Circuit Inductor Selection Guide

    Main type

    • Multilayer type
    • Wire-wound type
    Image of General Circuits inductor

    We have an extensive lineup of general purpose inductors for a variety of circuits.
    You can select an inductor to match your particular application. Wire-wound type LQH_M, LQH_N series are suitable for large inductance, multilayer type LQM_N series is suitable for small size.

    Lineup

    Infotainment
    The product for entertainment equipment like car navigations, car audios, and body control equipment like wipers, power windows.
    Please note that it cannot be used for products which require high reliability, including powertrains and safety equipment.
    Powertrain
    The product for high reliability applications like powertrain and safety, in addition to infortainment applications.
    Swipe left or right to change screens View in landscape mode.
    General purpose (For General)
    Size Code
    in inch
    (in mm)    		 Structure Short series name/view Series Thickness
    (mm/max)    		 Inductance Range Rated Current Range Specifications
    sheet    		 Part Number
    List
    0402
    (1005)    		 Wound
    Ferrite Core
    Type    		 LQW15CA LQW15CA LQW15CA_00 0.66 22nH - 2µH 130mA - 1.3A Open PDF file Click
    0603
    (1608)    		 LQW18CA LQW18CA LQW18CA_00 0.95 32nH - 580nH 450mA - 2.2A Open PDF file Click
    1210
    (3225)    		 LQH32MN image LQH32MN_23 2.2 1µH - 560µH 40mA - 445mA Open PDF file Click
    4mm

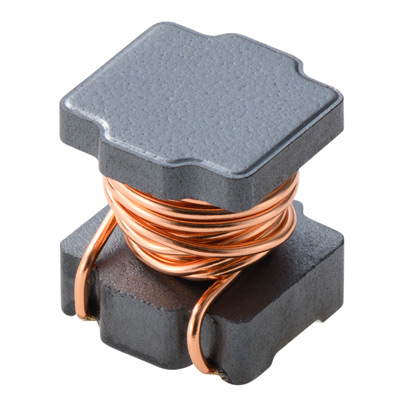

    square    		 LQH44NN image LQH44NN_03 4.5 510nH - 470µH 145mA - 4.5A Open PDF file Click

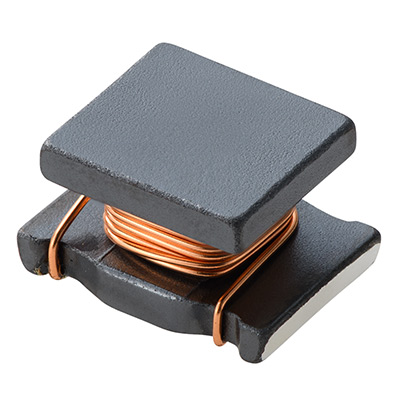

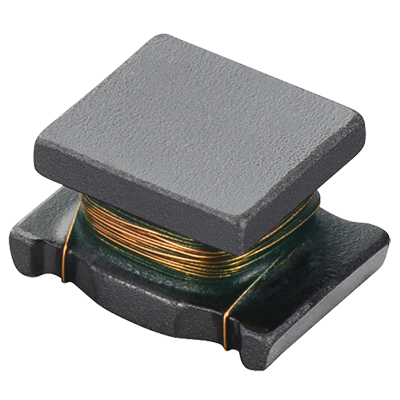

    LQH43M/N image LQH43MN_03 2.8 1µH - 1.5mH 40mA - 500mA Open PDF file Click
    image LQH43NN_03 2.8 1µH - 2.4mH 25mA - 500mA Open PDF file Click
    0603
    (1608)    		 Multilayer
    Type    		 LQM18JN image LQM18JN_00 0.65 100nH - 160nH 550mA - 650mA Open PDF file Click
    Swipe left or right to change screens View in landscape mode.
    General purpose (For Automotive Infotainment)
    Size Code
    in inch
    (in mm)    		 Structure Short series name/view Series Thickness
    (mm/max)    		 Inductance Range Rated Current Range Specifications
    sheet    		 Part Number
    List
    1210
    (3225)    		 Wound
    Ferrite Core
    Type    		 LQH32NZ image LQH32NZ_23 2.2 1µH - 470µH 45mA - 445mA Open PDF file Click
    4mm
    square    		 LQH43NZ image LQH43NZ_03 2.8 1µH - 2.4mH 25mA - 500mA Open PDF file Click
    Swipe left or right to change screens View in landscape mode.
    General purpose (For Automotive Powertrain)
    Size Code
    in inch
    (in mm)    		 Structure Short series name/view Series Thickness
    (mm/max)    		 Inductance Range Rated Current Range Specifications
    sheet    		 Part Number
    List
    1008
    (2520)    		 Wound
    Ferrite Core

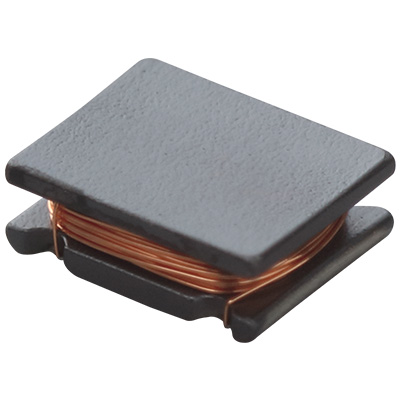

    Type    		 LQH2HNH image LQH2HNH_03 1 0.56µH - 100µH 53mA - 600mA Open PDF file Click
    1210
    (3225)    		 Wound
    Ferrite Core
    Type    		 LQH32NH image LQH32NH_23 2.2 1µH - 560µH 40mA - 780mA Open PDF file Click
    4mm
    square    		 Wound
    Ferrite Core
    Type    		 LQH43NH image LQH43NH_03 2.8 1µH - 2.2mH 30mA - 1.3A Open PDF file Click
