Power ProductsMurata Power Solutions Regulated DC-DC Power Converters

Powering Your Industrial, Rail, Transportation, & Data Networking Applications. Delivering high reliability in demanding conditions. DC-DC Power Supplies.

Relevant Applications
Product Benefits
Application Notes
Technical Help

Providing your Industrial, Rail, Transportation, & Data Networking Power Solution Needs

High power efficiency and reliability
Offering a range of footprint sizes: 1/32 bricks up to 1/2 bricks in some models
Small footprint package
From 1 to 1000 Watts output power
Positive or negative on/off logic
Optional load sharing of two or more modules

Relevant Applications

EV Charging Stations
Artificial Intelligence
Industrial Automation
Rail

Local / Decentralized Data Centers
Manufacturing Robots
Server, Storage, Networking
Power over Ethernet (PoE) Devices

Main image of Relevant Applications

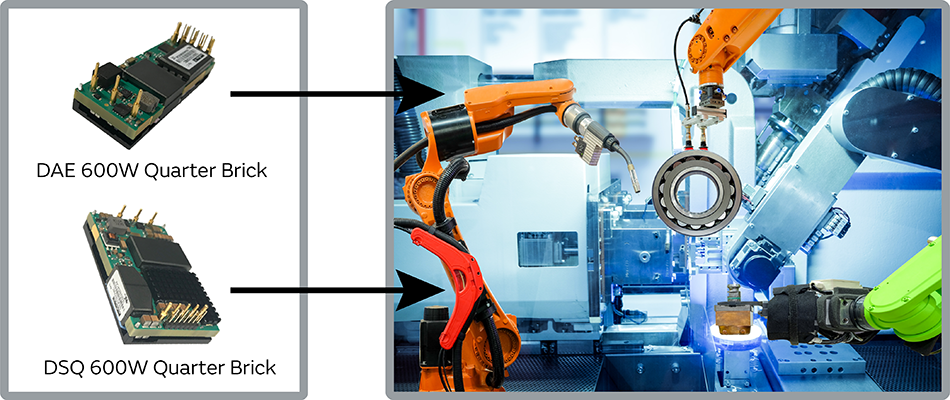

Murata Power Supplies are in Manufacturing Robots

Main image of Murata Power Supplies are in Manufacturing Robots

Product Benefits

Non-Isolated Switching Regulator DC-DC

Series	Output Current	Vin	Vout	Model Specific Features
OKI-78SR (OKI-78SR-E Series)	1 - 1.5 Amp	7 - 36 Vin or 15 - 75 Vin	3.3, 5, 12 Vout	Horizontal or Vertical Mount
MonoBK (MYMGM1R824ELA5RP)	2.5 - 40 Amp	3.3 - 4.2 Vin	0.7 - 25 Vout	Small SMD footprint, high efficiency
UltraBK (MYTNA1R84RELA2RA)	4-6 Amp	6.0 - 14 Vin	0.7 - 1.8 Vout	Two stage buck, high efficiency, low noise
UltraCP (MYC0409)	6-10 Amp	5.5 - 60 Vin	2.7 - 15 Vout	12 Vin or 48 Vin charge pump

Isolated Bus Converters

Series	Power	Vin	Vout	Available sizes	Model Specific Features
DSQ	600W	36 - 75 Vin	12 Vout	1/4 brick	DOSA Digital Brick with PMBus
DAQ	600W	36 - 75 Vin	12 Vout	1/4 brick	DOSA Brick with Sense & Trim
DCQ	600W	36 - 75 Vin	12 Vout	1/4 brick	DOSA 5 pin IBC
DSE	400W	36 - 75 Vin	12 Vout	1/8 brick	DOSA Digital Brick with PMBus
DAE	400W	36 - 75 Vin	12 Vout	1/8 brick	DOSA Brick with Sense & Trim
DCE	400W	36 - 75 Vin	12 Vout	1/8 brick	5 pin IBC
DBQ	420W	36 - 75 Vin	3.3, 5, 12 Vout	1/4 brick	ABC with PMBus sense & trim
DVQ	420W	36 - 75 Vin	3.3, 5, 12 Vout	1/4 brick	5 Pin IBC
DBE	300W	36 - 75 Vin	3.3, 5, 12 Vout	1/8 brick	ABC with PMBus sense & trim
DVE	300W	36 - 75 Vin	3.3, 5, 12 Vout	1/8 brick	5 Pin IBC

Bus Converter Narrow Input Range

Series	Power	Vin	Vout	Available sizes
DRE 11.4/53 (DRE-11.4/53-L48)	600W	36 - 60 Vin	11.4 Vout	1/8 brick
RBS-10.2/25-L48 *No data sheet link.	250W	45 - 56 Vin	10.2 Vout	1/16 brick

Isolated Board Mount DC-DC Power Solutions

Series	Power	Vin	Vout	Available sizes	Model Specific Features
RBE (RBE-12/20-D48 Series)	240W	36 - 75 Vin	12 Vout	1/8 brick	Baseplate for optimal thermal performance
UEE	150W	36 - 75 Vin	3.3, 5, 12 Vout	1/8 brick	Baseplate for optimal thermal performance
ULS	100W	36 - 75 Vin	3.3, 5, 6.5, 12 Vout	1/16 brick	Through hole
UWE	75W or 120W	9 - 36 Vin or 18 - 75 Vin	3.3, 5, 12, 24 Vout	1/8 brick
UWS	54W	9 - 36 Vin or 36 - 75 Vin	3.3, 5, 12, 15, 24 Vout	1/16 brick	Through hole & SMT package options
ULS	30W	36 - 75 Vin	3.3, 5, 6.5, 12 Vout	1/16 brick	Through hole
ULT	30W	36 - 75 Vin	3.3, 5, 6.5, 12 Vout	1/32 brick	Through hole & SMT package options
UEI15	15W	9 - 36 Vin or 36 - 75 Vin	3.3, 5, 12, 15 Vout	1 × 1 open frame	Through hole & SMT package options
BEI15	15W	9 - 36 Vin or 36 - 75 Vin	±5, ±12, ±15 Vout	1 × 1 open frame

Rugged Board and Chassis Mount Power

Series	Power	Vin	Vout	Package Dimensions (L × W × H)
IRH-12/21-W80NB-C	250W	16 - 160V	12V	63.2 × 60.7 × 14.0 mm
IRQ-12/12.5-W80NB-C	150W	16 - 160V	12V	61.21 × 39.62 × 13.0 mm
IRV300-12W80-C	300W	16.8 - 160V	12V	184.6 × 116.0 × 39.7 mm
IRV300-24W80-C	300W	16.8 - 160V	24V	184.6 × 116.0 × 39.7 mm
IRV300-54W80-C	300W	16.8 - 160V	54V	184.6 × 116.0 × 39.7 mm

PoE (Power over Ethernet) Modules

Model	Output Power	Output Current	Output Voltage	Package Dimensions (L × W × H)
MYBSP01206AZFT	72W	6A	12V	22.2 × 56.4 × 8.52 mm
MYBSP0055AABFT	25.5W	5.1A	5V	22.4 × 35.5 × 10.55 mm
MYBSP0122BABFT	25.5W	2.125A	12V	22.4 × 35.5 × 10.55 mm
MYBSP01201ABF	12W	1A	12V	14.8 × 26 × 6.2 mm
MYBSP00502ABF	10W	2A	5V	14.8 × 26 × 6.2 mm

Low Power Isolated DC-DC Power Solutions

Model	Features
MGJ Series	1-6W isolated gate drive voltages for IGBT or SiC transistors
NXJ Series	1-2W isolated DC-DC 3.3 - 24 Vin 3.3 - 15 Vout

Application Notes

PMBus™ Commands Application Note (PDF: 0.8 MB)

Meeting EMI Requirements for Rolling Stock & Railway Applications (PDF: 2.0 MB)
