SWL Series | RF / Microwave Coaxial Connectors with Switch

Features

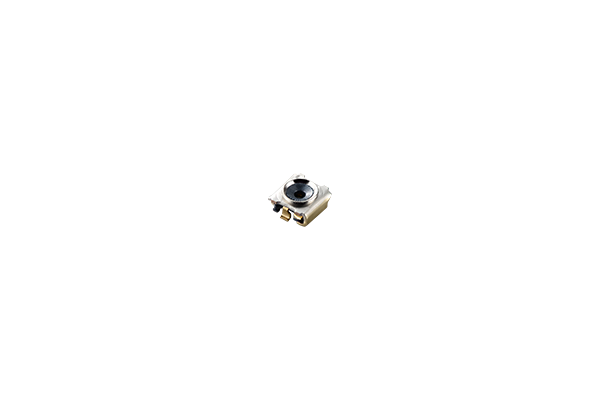

These are the world's smallest (according to Murata's research; at the time of release) RF / microwave coaxial connectors with a switch that are ideally suited for the output inspection of internal circuits in compact and high-density devices, such as mobile phones, wearable devices, smartwatches, TWS, and AR / VR glasses.
With a size of 1.0 mm × 1.0 mm × 0.55 mm (L × W × H), the SWL series reduces the connector mounting area by approximately 40% compared to our conventional SWJ series products.
This contributes to high-density mounting in limited board spaces and thinner devices.
The SWL series reduces the keep-out area during measurement by approximately 60%.
When combined with dedicated auto probes, the keep-out area required during RF measurement is reduced by approximately 60% compared to the use of SWJ products with standard auto probes.
Supports frequencies up to 15 GHz.

Please feel free to contact us through the inquiries page below if you would like more detailed information on the SWL series or to request samples.

Inquiries

You can download 3D Models (STEP), 3D CAE Data (For Ansys HFSS™), instruction manuals, and more here.

See all

*We have posted this data on the "my Murata" website for members. You need to create a my Murata account, log into it, and then apply to use the "Connector Site" to view the data.
