Microwave Coaxial Connectors with Switch

The RF circuit and ANT characteristics can be measured by mounting in an RF transmission line.

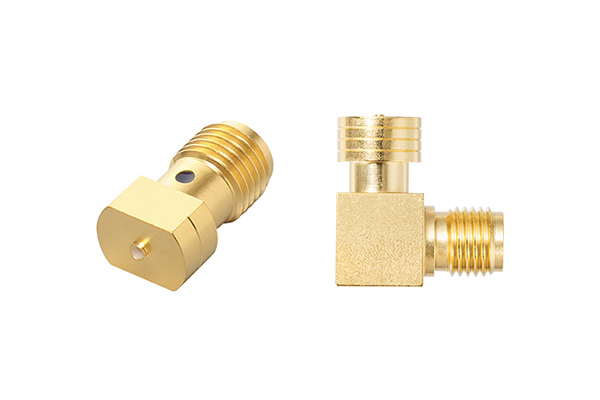

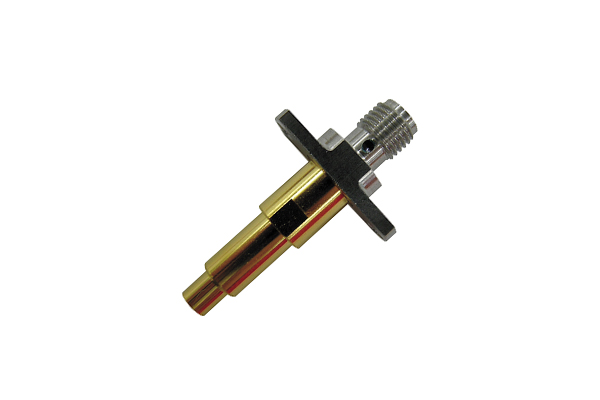

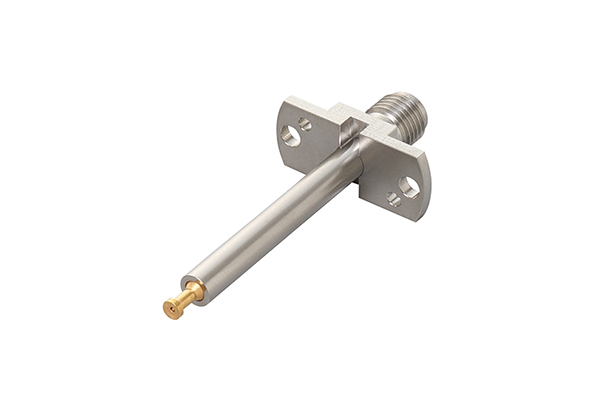

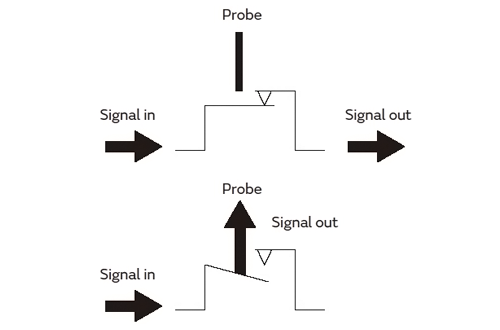

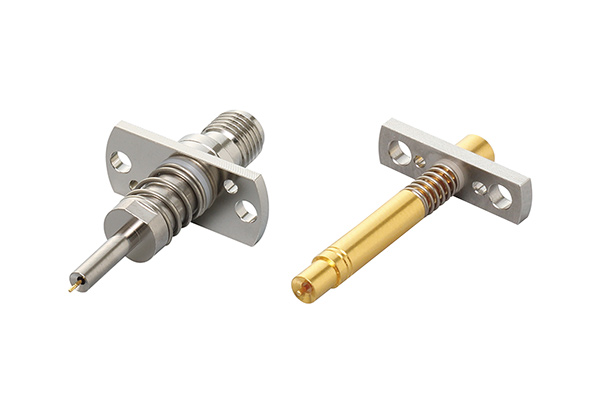

The internally built-in mechanical switch separates the RF circuit and ANT circuit, so that the circuit can be measured without any mutual effect using a dedicated probe made by Murata.

Microwave Coaxial Connectors with Switch

Product Lineup

  • SWD Series

    It is used for PC mainly.

    SWD Series
  • SWF Series

    It is used for PC mainly.

    SWF Series
  • SWG Series

    It is used for such as PC, tablet PC, mobile phone mainly. ...

    SWG Series

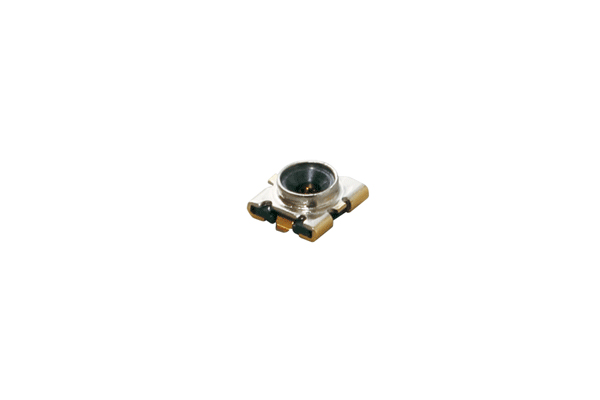

  • SWH Series

    It is used for the small device such as mobile phone and the...

    SWH Series

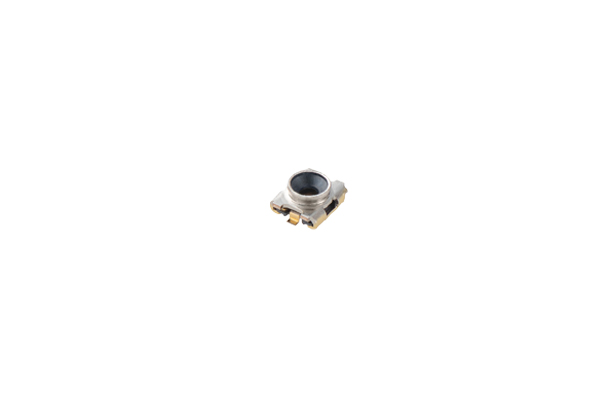

  • SWJ Series

    It is used for the small device such as mobile phone and the...

Related videos

Contributing to more efficient circuit measurements. Introduction to our switch connectors

Switch connectors are found in communication equipment of all types. They are widely used for circuit measurements on manufacturing lines.

PDF Catalog

PDF catalogs for Microwave Coaxial Connectors with Switch are available at the following links:

Microwave Connectors (PDF: 1.2 MB)

CAT NO.
o30e-11
UPDATE
19/03/2021
