    Bluetooth® ModulesType 2EG

    Order Number LBCA1HN2EG

    • In Production
    • New
    • Recommended
    Read more
    Image of Type 2EG, BEST OF Sensors AWARD 2023

    Contents

    Overview

    Bluetooth® 5.2 Module with on-board antenna
    • Onsemi RSL15 Wireless SoC
    • Bluetooth® 5.2
    • 48MHz Arm® Cortex® M33 MCU core
    • UART, QSPI, SPI, GPIO, ADC, DAC, PWM, 12C interfaces
    • Arm® CryptoCell 312
    • Regulatory Certification: FCC/IC, ETSI, MIC (Japan)
    Benefits
    • Powerful MCU core for user applications
    • Ultra-low power consumption
    • Integrated IoT cybersecurity platform
    • Rich peripheral interface
    • Ultra-small size
    • Both on-board and external antenna option

    Data Sheet & Contact menu

    Data Sheet PDF
    Contact Us
    Where to Buy | Disti Inventory
    Micro Batteries for Bluetooth Low Energy Modules
    Micro Batteries

    Click here for product site
    Sensors

    Click here for product site
    Back to the contents

    Description

    Type 2EG is an ultra-low power, ultra-small, and secure Bluetooth Low Energy 5.2 wireless module for connected IoT edge devices in industrial and medical applications.

    Murata Community Forum
    Back to the contents

    Specs

    Back to the contents

    Documents

    Products Data Sheet

    Last Update: December 15, 2023

    Data Sheet PDF

    Products Related Files

    If you would like a product catalog or technical data, please check the check box and download it from the download button below.

    Swipe left or right to change screens. View in landscape mode.
    Type File Name File size Last Update
    Product Brief type2eg-product-brief.pdf PDF: 510KB -
    Schematic type2eg-schematic.pdf PDF: 272KB -
    Additional Docs type2eg-antenna-layout-guide.pdf PDF: 481KB -
    type2eg-quick-start-1-2.pdf PDF: 203KB -
    type2eg-quick-start-2-0.pdf PDF: 201KB -
    type2eg-user-guide-1-2.pdf PDF: 480KB -
    type2eg-user-guide-2-0.pdf PDF: 384KB -
    type2eg-footprint.dxf DXF: 31KB -
    type2eg-ref-bom.pdf PDF: 246KB -
    type2eg-red-doc.pdf PDF: 66KB -
    Download

    Related material of environment

    RoHS Certificate of Compliance (Wi-Fi®/Bluetooth®/LoRa/UWB Module)
    Back to the contents

    Software

    Software
    Back to the contents

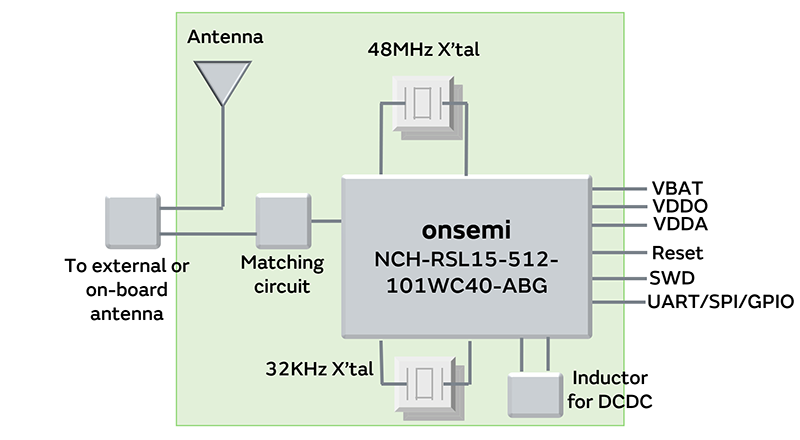

    Block Diagram

    Block Diagram : Type 2EG
    Back to the contents

    Eval Tool

    Dev Kit Features

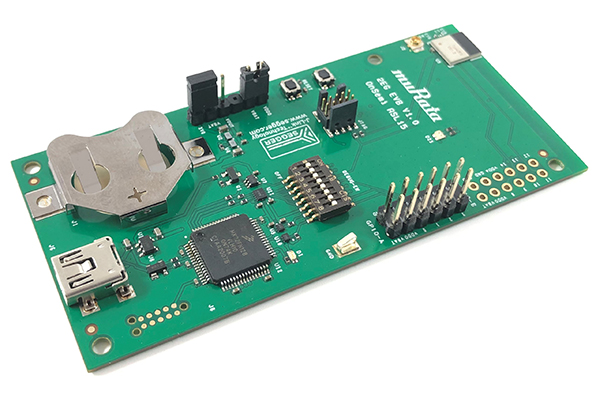

    Type 2EG Development Kit
