InductorsBasic Facts about Inductors [Lesson 5] Technology for mounting inductors onto products

Contents

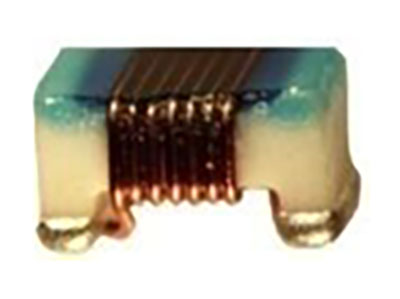

This product is different from an ordinary layered ceramic capacitor in that, even though it has two terminal parts, only the bottom side of the part forms an electrode in order to achieve a high Q value. (Figure 1) In this type of product, it is necessary to provide a solder quantity that is proportionate to the surface area of the bottom-side electrode.

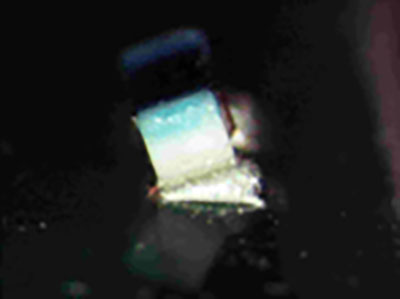

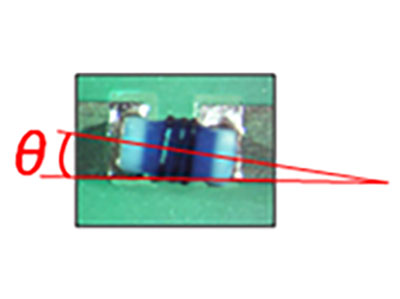

Mounting problems can occur when the part is mounted at an angle (Figure 2) or mounted with θ displacement from the land^*1 (Figure 3). These problems result from over-soldering the surface area of the bottom-side electrode on the part.

In order to prevent these types of problems, it is necessary to use reflow soldering to appropriately control the solder quantity supplied to the circuit board land to match the area of the electrode. We provide suitable land patterns and solder printing patterns in mounting information pages and other sections of our catalogs.

Miniaturization of sets has led to rapid size reduction of parts from size 1005 to 0603 and recently even to 0402, in order to minimize their mounting area. Ultra-compact parts like those shown in (Figure 4) can present mounting problems due to minute changes in the mounting environment.

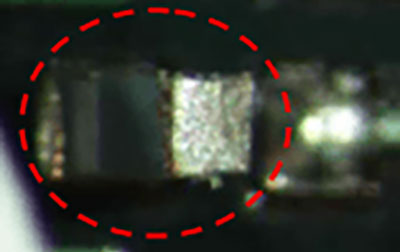

One example is the tombstone phenomenon (or Manhattan effect), which is a mounting problem where one side of the part is raised because it does not contact the soldering (Figure 5).
Possible causes of this phenomenon:

It is important to be particularly careful not to mount the part under the above conditions.

Many 1005 size or smaller inductors that are currently in the market use paper tape as their taping material, and the smallest size, size 0402 LQP02 film-type inductors for high frequency, also used paper tape when initially launched in the market.

However, use of paper tape is problematic because of changes in cavity dimensions caused by changes in humidity during transportation or storage. This problem worsens as product size decreases, where it has been noted that paper tape may not be able to achieve essential mounting quality in surface mounting and highly reliable mounting surfaces.

To combat this problem, LQP02 series parts use W4P1 plastic tape taping specifications that have proven results with multilayer capacitors and already have a mounting infrastructure.

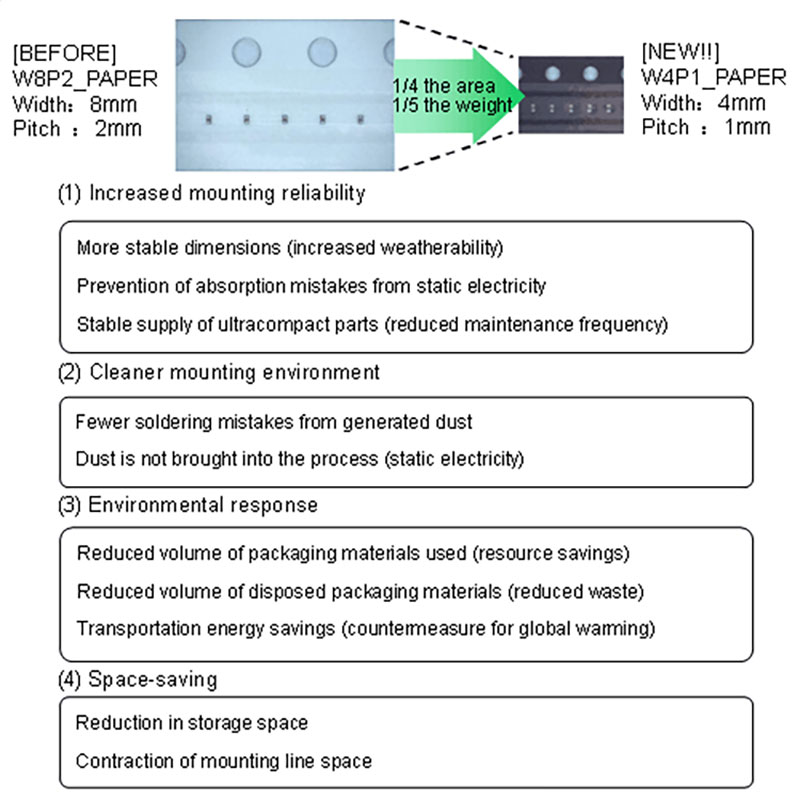

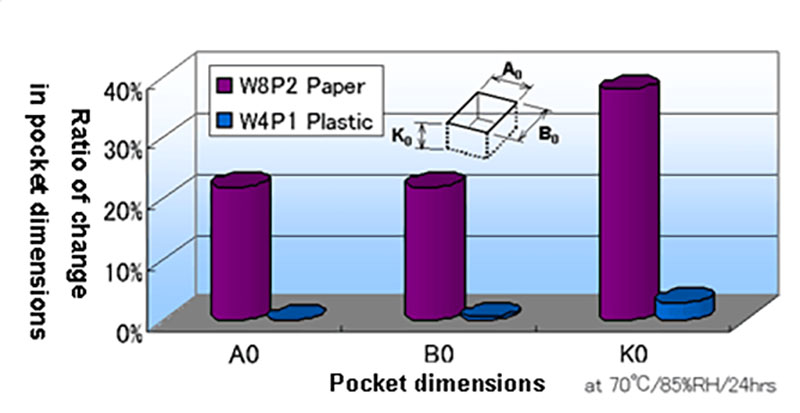

Figure 6 shows changes in cavity dimensions in conventional paper tape and W4P1 plastic tape under high humidity conditions. Figure 7 lists the merits of switching to W4P1. We will continue from here on as well to actively use W4P1 plastic tape in the LQP02 series.
