    Piezoelectric Film Sensor (Picoleaf™)

    Piezoelectric Film Sensor (Picoleaf™)Where to Buy / Distributor Inventory

    Picoleaf installation process

    Picoleaf installation step flow

    Standard product

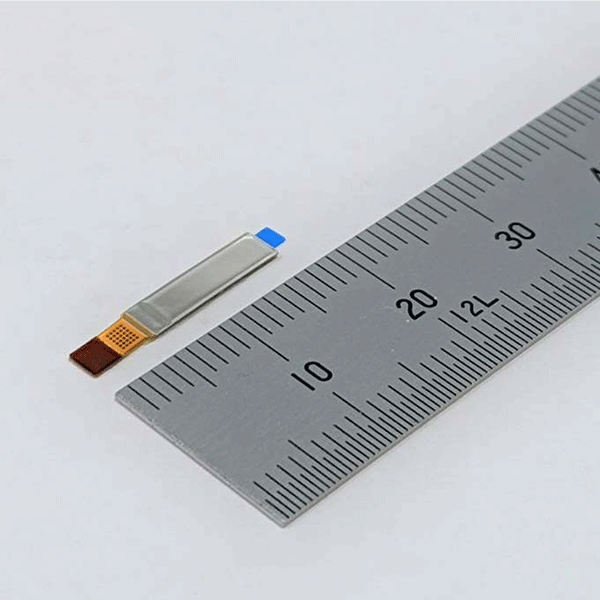

    Picoleaf standard product image
    Item Specification
    Size 3×17mm
    Thickness 0.25mm (adhesive 0.1mm)
    Asembly method Adhesive
    Sensitivity 1µm
    Detection data Deformation speed
    I/F 4-pin ZIF connection
    Circuit information
    Supply voltage Vdd=Typ: 3.3V
    Current consumption <10µA
    Response time <10mSec
    Download product datasheet

    Request Samples/Request quote

    For sample requests and quote request, please click the "Inquiries" button.
