Variable Capacitors

Variable Capacitors
Variable capacitors have capacitance values that can be varied by applying voltage to their electrodes.

All products from this series (10 pieces each) and three evaluation boards (for DFN/CSP and LXRW19V201-58)

Product Lineup
Sample requests
Other Links

Murata Icon X Product Lineup

▼See the series lineup and specifications here.

Variable Capacitors

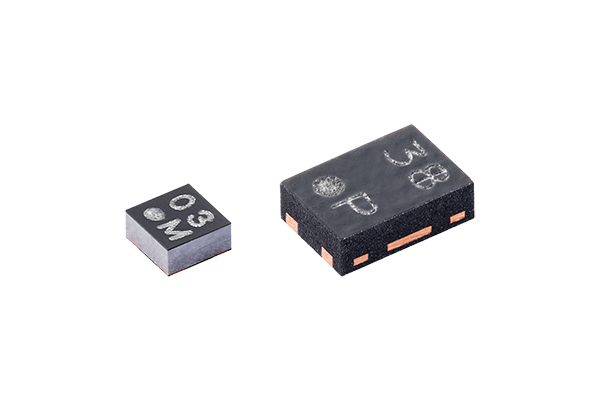

What is a variable capacitor (VAC)?

VACs are passive components with capacitance values that can be varied according to the control voltage. They can be considered for applications such as frequency adjustment.

Murata offers products suited to the HF band (13.56 MHz) used for near field communication (NFC)

Characteristics :
  1. Compact, slim package
  2. Capacitance variable range of 50%
  3. The capacitance can be finely adjusted by applying voltage.

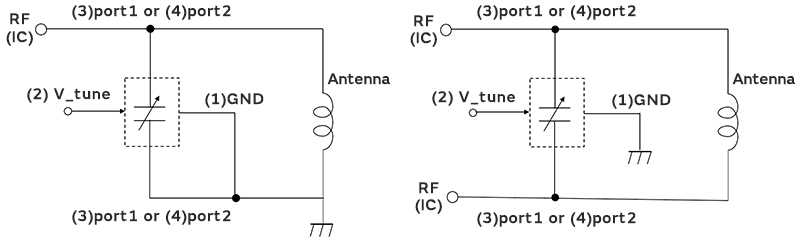

  Basic   Merits of using VAC for NFC
・The variable capacitor absorbs the antenna L value variance for easier f0 adjustment!
・Easier debugging during certification tests.
・Easier variance adjustment when building into cases.
>>Click here for Details

Click here for a video demonstrating frequency variation. >

Sample requests and inquiries

Request a Free Sample Kit

*We ask that customers please report the evaluation results by around one month
  after the samples are received.
*Note that quantities are limited and the free sample offer will end as soon as
  supplies run out.
*See the FAQ here for evaluation boards and capacitance measurement methods.
