In-vehicle PoC inductors

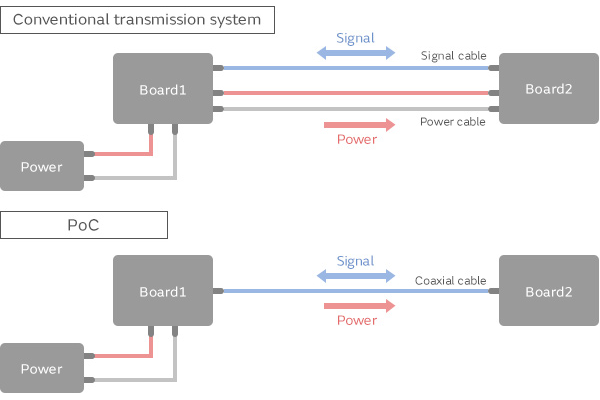

By making use of suitable inductors from Murata’s extensive lineup, such as the LQW-F series developed for PoC applications such as ADAS camera interfaces, it is possible to create wide-band Bias-T circuits that employ fewer components.
The “Bias-T Inductor Selection tool” on the Murata website can help you select the best components for your Bias-T circuits.

Product Lineup
Bias-T circuit configuration example
Component selection support tool
Related Articles
Related Webinars
Related Links
Inquiries
Related News
Product Search

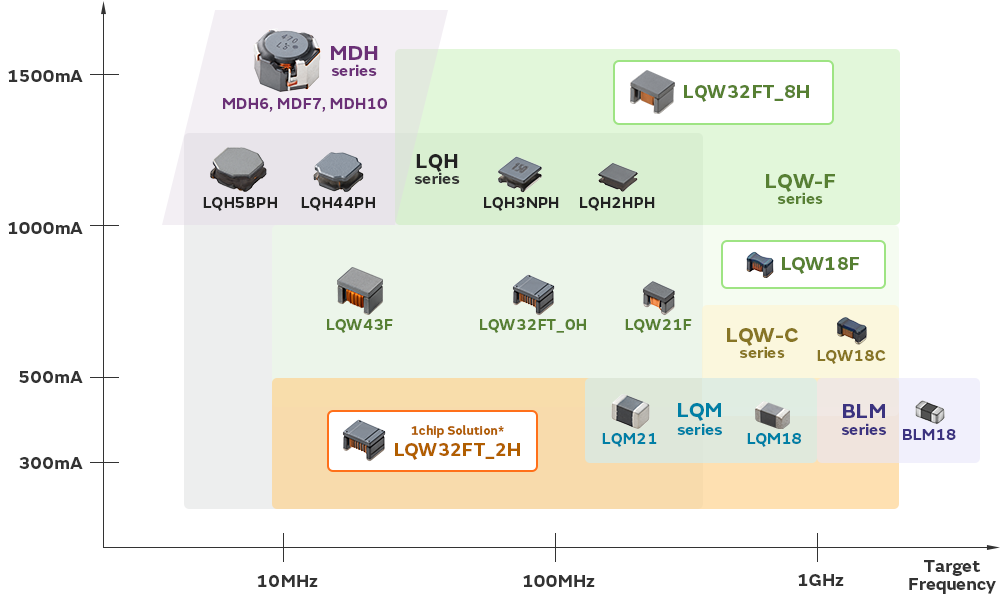

Product Lineup

View Murata’s extensive lineup of inductors for in-vehicle PoC applications.

You can find product overviews for:
LQW, LQH, LQM series
BLM series

You can find specifications for:
LQW series
LQH series
LQM series
BLM series

Main image of Product Lineup

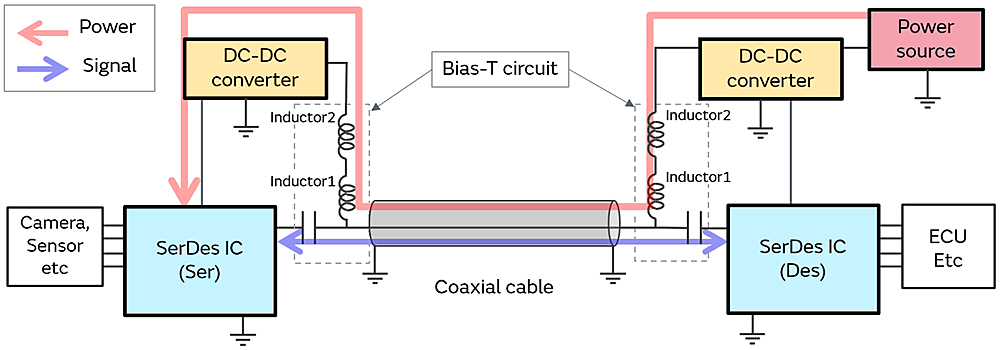

Bias-T circuit configuration example

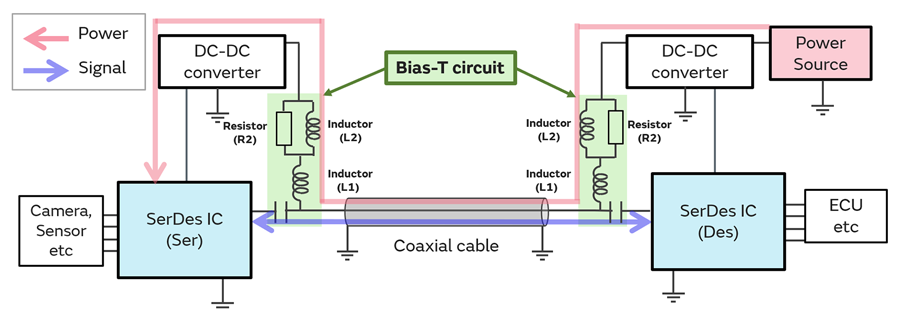

Bias-T circuit separating signal line and power line

Bias-T circuit current value @ camera environment temperature	Bias-T circuit inductor suggestions
	Inductor 1	Inductor 2
300mA@115°C	LQW21FT1R5M0H	LQW32FT220M0H
500mA@105°C	LQW21FT1R5M0H	LQW43FT180M0H
800mA@105°C	LQW21FTR82M0H	LQW43FT180M0H

Example of characteristics of Bias-T circuit configuration combining LQW21FT1R5M0H and LQW32FT220M0H
(Result output by Bias-T Inductor Design support tool)

Component selection support tool

Inductor selection support tool for Bias-T circuits

Use this tool when designing Bias-T circuits.

Component characteristics
viewer Design support tool

The software 'SimSurfing' simulates the characteristics of Murata products.

Supporting the Introduction of the PoC Method for High-speed Automotive Networks Through Component Selection Efficiency

Explains how to select components for Bias-T circuits used in deployment of Power over Coaxial (PoC) technology.

Murata's vehicle-mounted inductors: Supporting advancements in vehicle-mounted networks with strategic product development (Part 1 of 2)

Describes Murata’s in-vehicle inductor products. (Part 1)

Murata's Vehicle-mounted Inductor Products for Supporting Advancements in Vehicle-mounted Networks Through Timely and Appropriate Product Development (Part 2 of 2)

Describes Murata’s in-vehicle inductor products. (Part 2)

PoC system requirements for inductors and noise suppression (1)

Starts by answering the basic question “What is Power over Coax (PoC)?” and proceeds to a description of noise suppression examples.

Related Webinars

Webinars

[From Beginners to Advanced Practitioners]
We’re updating the webinars we have one after another! We explain the keys to noise suppression based on actual examples.
