PE25200 | FlexiCP™ | Murata Manufacturing Co., Ltd.

Product Detail

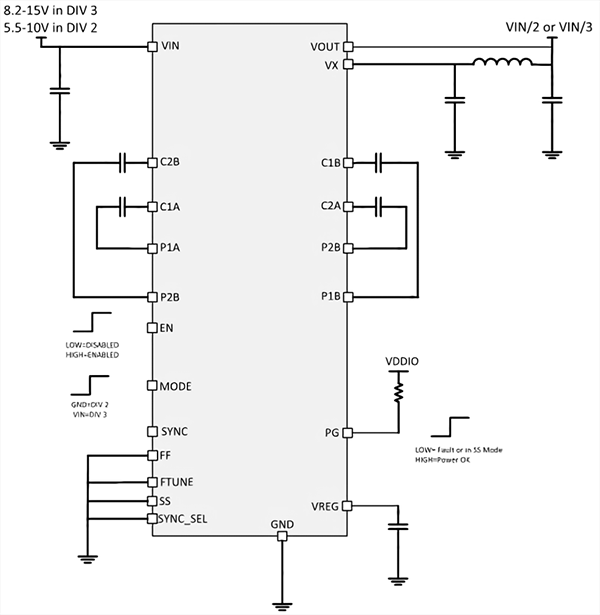

PE25200 is user selectable divide-by-2 or 3 charge pump capacitor divider IC with integrated FETs.
Capable of delivering up to 45 watts of power with peak efficiency of 97%.
Choice of divider ratio between 2 and 3 enables to convert 2-cell or 3-cell lithium platforms into 1-cell platform in mobile computing application.
PE25200 devices can also take up a front-end DC-DC converter as part of 12Vin point-of-load designs in datacenter, networking and optical equipment powering FPGA, DDR memory and ASICs.

Io [A]	10
Divider Ratio	2	3
Vin [V]	5.5-10	8.2-15
Vo [V]	Vin/2	Vin/3
Efficiency [%] at cycle skipping	97.5 (10Vin/5Vo)	96.4 (12Vin/4Vo)
Efficiency [%] at fixed frequency	97.0 (10Vin/5Vo)	95.8 (12Vin/4Vo)
Package	WLCSP
Feature	Enable, Power Good, Frequency Synchronization, Cycle Skipping, Over Current Protection, Over Temperature Protection, UVLO, Parallel Operation
Product Family	FlexiCP™

Technical Reference

You can view technical documents about Power Semiconductor.
Click the download button to view or download the file.
*The information in the datasheets may be modified without notice or may become unavailable.

Datasheet: This provides the features, specifications, and measurement directions.
Evaluation Kit (EVK) User's Manual: This provides how to use the evaluation board.

Datasheet (PDF: 0.5 MB)

Download

Evaluation Kit (EVK) User's Manual (PDF: 7.9 MB)

Download
