CeramicCapacitorGA3 Series

GA3 Series Safety Standard Certified Chip Multilayer Ceramic Capacitors for General Purpose / Acquired certifications of IEC60384-14 Class X1/Y2 and UL60950-1

Safety Standard Certified Chip Multilayer Ceramic Capacitors for Consumer Electronics & Industrial Equipment

IEC60384-14 X1/Y2 Class Certified Product (Basic insulation product)

Specific Applications
Features
Specifications
Lineup

Specific Applications

For the detail of specific applications, please refer to the following links or specification sheets.
Specific Applications Details
Precautions for use

Consumer equipment	Industrial equipment	Automotive infotainment/comfort equipment	Automotive powertrain/safety equipment	Medical equipment [GHTF A/B/C] except for implant equipment	Implanted medical equipment or medical equipment [GHTF D]
✔	✔	✔		✔

Features

1. IEC60384-14 Class X1/Y2 certified product.

Please down load Safety Standard Certification (Type GF: X1/Y2) from here.

2. Can be used as a Class Y2 capacitor.

Switching Power Supply - Class 1 Equipment -

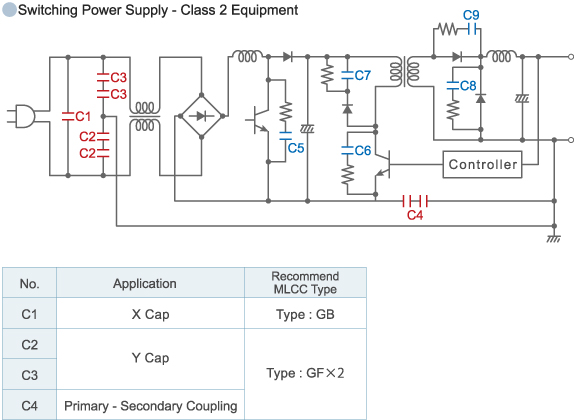

Switching Power Supply - Class 2 Equipment -

3. Realized large capacitance value and small size while maintaining high withstand voltages by the multilayer structure.

4. This product is only for reflow soldering.
