CeramicCapacitorGR4 Series

GR4 Series Chip Multilayer Ceramic Capacitors for Splitter Circuit of G-Fast, xDSL

Chip Multilayer Ceramic Capacitors for Information Devices only of Consumer Electronics & Industrial Equipment (For Splitter Circuit of G-Fast, xDSL)

Size 3.2x2.5mm / U2J Char. / DC630V
Meet with ITU-T K.20 Standard (Impulse Test: 1.5kV, 10x700usec, 10 times (+/-) )

Specific Applications
Features
Specifications
Lineup

Specific Applications

For the detail of specific applications, please refer to the following links or specification sheets.
Specific Applications Details
Precautions for use

Consumer equipment	Industrial equipment	Automotive infotainment/comfort equipment	Automotive powertrain/safety equipment	Medical equipment [GHTF A/B/C] except for implant equipment	Implanted medical equipment or medical equipment [GHTF D]
✔	✔	✔		✔

Features

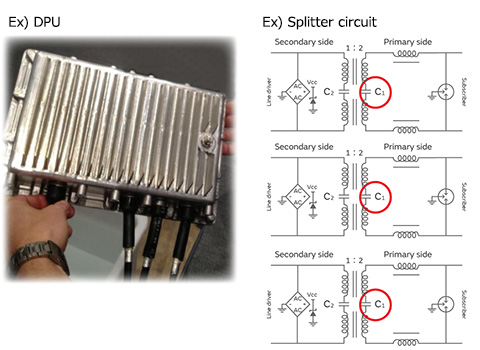

1. For Splitter Circuit of G-Fast, xDSL

2. Realized large capacity and small size while maintaining high withstand voltages by the multilayer structure.

3. Dedicated for reflow soldering.
