LoRa (LoRaWAN) Modules

LoRa (LoRaWAN) ModulesSelect / Search

Selection Guide (By Specifications)
LoRa (LoRaWAN) Modules: Product Information
FAQ
Inquiries

Selection Guide (By Specifications)

LPWA Module	Chipset	Transmission Power	Size	Package	Frequency/Band	Remarks
Type ABZ CMWX1ZZABZ	SX1276 and STM32L	Up to +18.5 dBm	12.5 x 11.6 x 1.76 mm	Metal shield	860-930 MHz	ABZ-Open MCU ABZ-LoRa
Type 1SJ LBAA0QB1SJ	SX1262 and STM32L	Up to +22 dBm	10.0 x 8.0 x 1.6 mm	Resin	860-930 MHz	1SJ-OpenMCU 1SJ-Modem 1SJ-Modem WW
Type 1WL LBEU5ZZ1WL	LR1110 STM32WB MT3333	Please refer to datasheet	17.0 x 17.5 x 2.15(max) mm	Metal shield	860-930 MHz	1WL

LoRa (LoRaWAN) Modules: Product Information

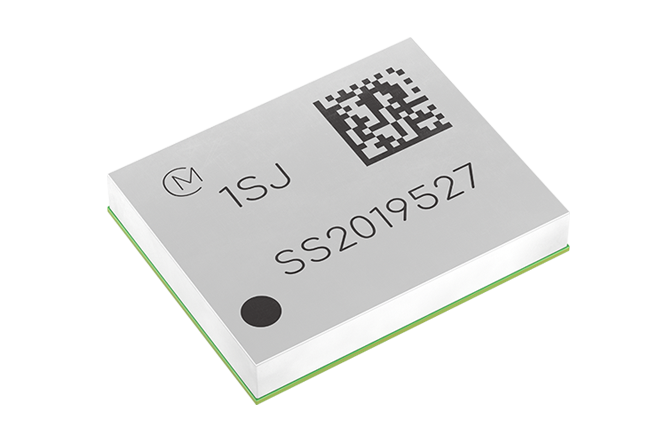

LBAA0QB1SJ

Type 1SJ
The LBAA0QB1SJ module is one of the smallest LoRaWAN™ modules in the industry. This module has a lower power consumption and higher output than previous products. Radio Law certification has already been obtained for major regions.

Detailed Specifications

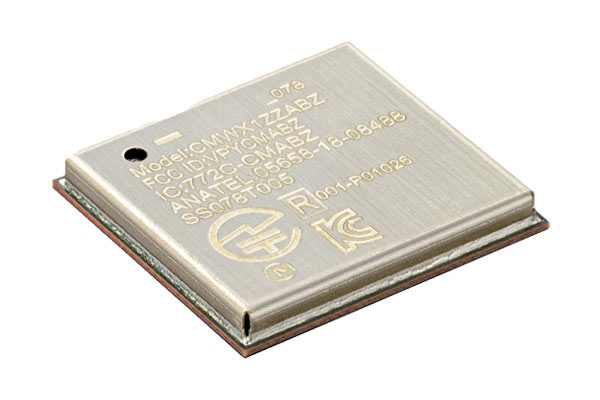

CMWX1ZZABZ

Type ABZ
The CMWX1ZZABZ module is a LoRaWAN™ module that operates in many regions and operator networks around the world. Radio Law certification has already been obtained for major regions.
This module can also support Sigfox by modifying the software.

Detailed Specifications
LBEU5ZZ1WL

Type 1WL
The Type 1WL (LBEU5ZZ1WL) module is a multi-technology fused LoRaWAN geolocation module.
This module offers ultra-low power design for long battery life, superior sensitivity, and high flexibility to build low-cost Internet of Things (IoT) tracking devices for both indoor and outdoor environments.

Detailed Specifications
