LC Trap Filters

01005 inch size one-chip notch filter
Suitable for carrier frequency interference countermeasures.

Noise suppression for wireless headphones
Sound skipping countermeasures and size reduction
Solving your design problems!

Appearance & Shape
Specifications
Product Data
Document download
Related Links
Inquiries

Appearance & Shape

LQZ02HQ Series

Specifications

LQZ02HQ Series

Specifications Sheet : Download PDF

Part number	Impedance (Ω Typ.)			Insertion Loss Characteristic (dB Typ.)			DC Resistance Max. (Ω)	Rated Current (mA)	Self Resonant Frequency (GHz Typ.)
Part number	at 2.40GHz	at 2.44GHz	at 2.50GHz	at 2.40GHz	at 2.44GHz	at 2.50GHz	DC Resistance Max. (Ω)	Rated Current (mA)	Self Resonant Frequency (GHz Typ.)
LQZ02HQ242A02	460	600	345	15.0	15.7	13.0	0.55	200	2.44

Operating Temperature. −55°C to +125°C

Product Data

LQZ02HQ Series

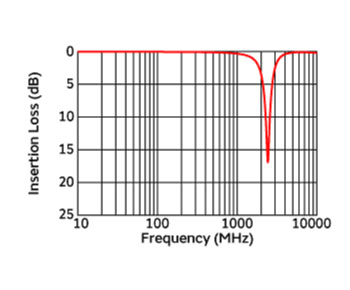

Insertion Loss Characteristics
