Crystal UnitsThe Advantages of Murata's Crystal Units

Murata's crystal units use a groundbreaking and unique packaging technology that is unparalleled in existing products, providing superior quality, production scale, and cost performance.

■ Advantages of Murata's crystal units

  • *Click to jump to each item

The origins of Murata's crystal units

Murata has been providing ceramic resonators (CERALOCK®) to the market for over forty years, to use as a reference clock in microcomputers and other devices.

In order to support devices requiring a clock with higher frequency precision than ceramic resonator's, using our unique technology, Murata and Tokyo Denpa jointly developed miniature and highly reliable crystal units.

We have started supplying products for consumer market since 2009, and for automotive market since 2013.

Market performance

Murata's crystal units are active in various applications

The products, jointly developed with Tokyo Denpa, have been adopted more as HDD/SSD/USB and other storage devices started to use small crystal units due to the increased need for speed and capacity.

Later, Murata's crystal units began to be adopted for use in NFCs with smart phone's features of personal authentication / electronic money payment sophisticated.

The adoption of small crystal units is still increasing due to the growing demand for small devices in AV/PC/automotive equipment and Wi-Fi communications equipment as well as the market growth of wearable and smart phone peripheral devices equipped with BT/BLE communication features that connect to smart phones.

Reason why customers choose Murata's crystal units

Adoption of the high-reliability/low-cost packages cultivated by ceramic resonators (CERALOCK®)

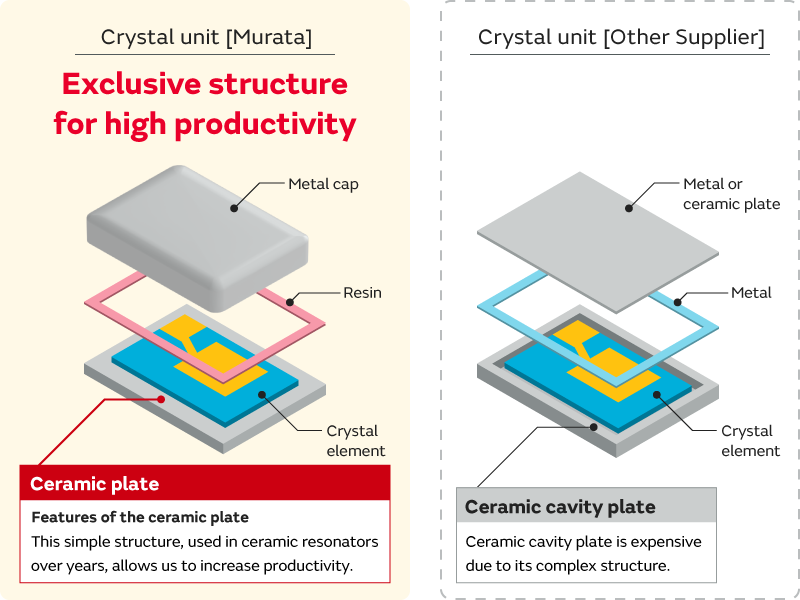

Murata's crystal units use a package structure which differs from typical crystal units.

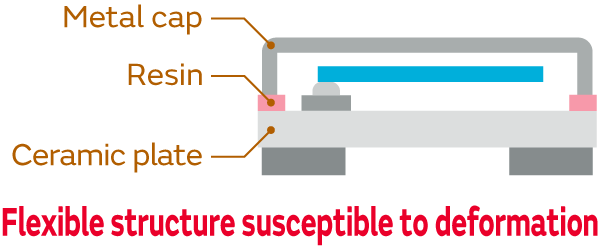

While regular crystal units use a ceramic substrate with a cavity structure, Murata's crystal units use a structure which combines a metal cap with a planar ceramic substrate, which has a ceramic resonator with a proven track record extending back many years.

Using the highly versatile planar ceramic substrate and metal cap allows us to reduce the material costs compared with conventional crystal units, achieve stable supply, and increase production.

Providing value to customers

We have an integrated system from crystal stone production, design, manufacturing with our own original equipment, to worldwide sales network.

Introducing this system to our own manufacturing leads us to open up new fields and provide new value to customers.

Worldwide sales system

Murata global network

Product lineup

Click the series name to see the recommended part number.

左右にスワイプ可能です 横持ちでご覧ください
Series Type Size(mm) Frequency Notes
XRCGB
HCR2016 2.0×1.6×0.7 24 to 50MHz Resin sealed package
for wireless communication devices
for consumer devices
XRCPB
HCR2016 2.0×1.6×0.5 24 to 48MHz
XRCHA
HCR2520 2.5×2.0×0.8 16 to 20MHz
XRCHA_F_A
HCR2520 2.5×2.0×0.8 16 to 24 MHz for automotive
Ethernet/FlexRay
XRCGE_F_A
HCR2016 2.0×1.6×0.7 20 to 23.99 MHz for automotive
MCU etc.
XRCGB_F_A
HCR2016 2.0×1.6×0.7 24 to 48 MHz for automotive
Ethernet/FlexRay
XRCGB_F_C
HCR2016 2.0×1.6×0.7 27.6 MHz for automotive
Comfort/Security
Infotainment
XRCGB_F_G
HCR2016 2.0×1.6×0.7 24 to 48MHz for automotive
Only for infotainment
