CeramicCapacitorGRM Series

Chip Multilayer Ceramic Capacitors for Consumer Electronics & Industrial Equipment

This is Murata primary products renowned for both small size and large capacitance value with latest advanced technology.

Specific Applications
Features
Specifications
Lineup

Specific Applications

For the detail of specific applications, please refer to the following links or specification sheets.
Specific Applications Details
Precautions for use

Consumer equipment	Industrial equipment	Automotive infotainment/comfort equipment	Automotive powertrain/safety equipment	Medical equipment [GHTF A/B/C] except for implant equipment	Implanted medical equipment or medical equipment [GHTF D]
✔	✔	✔		✔

<Related Links>
You can find the recommended uses for each series in the “Applications” section of the FAQ below.

What are the differences between the GCM, GRT, and GRM series?

Features

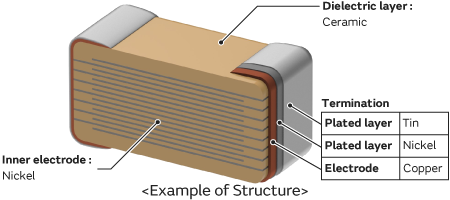

1. Achieves large-capacity and small size in a multilayer structure.

2. Sn plating is applied to the external electrodes; excellent solderability.

3. High quality and no polarity.

Excellent > Good > Average > Poor

Capacitor classification	Chip multilayer ceramic capacitors		Tantalum capacitors	Can-type aluminum electrolytic capacitors (SMD)	Polymer Aluminum Electrolytic Capacitors
Capacitor classification	High dielectric constant series	Temperature compensation type	Tantalum capacitors	Can-type aluminum electrolytic capacitors (SMD)	Polymer Aluminum Electrolytic Capacitors
Polarity	No	No	Yes	Yes	Yes
Low ESR	Excellent	Excellent	Average	Average	Excellent
Temperature characteristics	Good	Excellent	Good	Good	Excellent
DC bias characteristics	Average	Excellent	Excellent	Excellent	Excellent
High-frequency compatible	Excellent	Excellent	Poor	Poor	Average
Small / thin	Excellent	Excellent	Average	Poor	Average
Acoustic noise	Average	Excellent	Excellent	Excellent	Excellent
Long life	Excellent	Excellent	Average	Average	Excellent
Failure mode	Short	Short	Short	Open	Open

Explanation of Product Characteristic Icons

150℃max.

Can be used up to 150℃ max.

*There are icons of plural temperature.

rohs

RoHS Directive compliant product

This product contain no restricted substances specified by RoHS Directive with more than maximum concentration value by weight in homogeneous material, except for cases falling under RoHS exemptions.

Restricted substances	Maximum concentration value
Lead	0.1%
Mercury	0.1%
Cadmium	0.01%
Hexavalent chromium	0.1%
Polybrominated biphenyls (PBB)	0.1%
Polybrominated diphenyl ethers (PBDE)	0.1%
Bis (2-ethylhexyl) phthalate (DEHP)	0.1%
Butyl benzyl phthalate (BBP)	0.1%
Dibutyl phthalate (DBP)	0.1%
Diisobutyl phthalate (DIBP)	0.1%

REACH

REACH Regulation compliant product:

The Product complies to provisions of REGULATION (EC) No 1907/2006(Reach)

Restriction of the substances contained in the article under Reach:: REACH regulation impose restrictions of product applications and substance ban on the basis of Article 67.1.
The inclusion of a Substance of Very High Concern (SVHC) in the Candidate List creates the duty to communicate information on substances in articles to allow safe use of the article, which is applicable to suppliers in Europe (Reach Article 33). It does not impose any restrictions on the use of the products, nor is it a substance ban. Please check "Murata products containing SVHC and Information on safe use"

AEC-Q200

AEC-Q200 compliant product

Safety Standard

Safety Standard: Products that acquired safety standard certification IEC60384-14.

Safety Standard Certification

Based on the Electrical Appliance and Material Safety Law of Japan

Japanese Safety Law

Japanese Safety Law: Products that are based on the electrical appliance and material safety law of Japan.

Ultrahigh-voltage

Product of 10 to 40kV rated voltage

HIQ

Low dissipation for high frequency: By devising ceramic materials and electrode materials, low dissipation is achieved in frequency bands of VHF, UHF and microwave or beyond.

LowESL

Low inductance: This capacitor is designed so that the parasitic inductance component (ESL) that the capacitor has on the high frequency side becomes lower.

Lowacousticnoise

Product suitable for acoustic noise reduction and low distortion: This product suppresses acoustic noise, which occurs when a ceramic capacitor is used, by devising the materials and configuration.

Deflectingcrack

Product resistant to deflection cracking: This capacitor is designed to prevent failures as much as possible by short mode caused by cracking when there is board deflection.

Solderingcrack

Product with solder cracking suppression: “This capacitor is configured with metal terminals and leads connected to the chip. The metal terminals and leads relieve the stress from expansion and contraction of the solder, to suppress solder cracking.”

No DC bias Characteristics

No DC bias characteristics: Polymer capacitor is no capacitance change with DC bias due to aluminum oxidized film for dielectric.

Anti-ion migration.

By making full use of the water repellence of the capacitor surfaces, this product minimizes Ion migration from the external electrodes (Terminations) that results from condensation.

Product suitable for noise suppression

Low-inductance product suitable for noise suppression.This product has extremely low ESL and is suitable for suppression of noise, including high frequencies.

Contributes to noise suppression as an EMI filter

Reflow

Product for reflow soldering

Flow

Product for flow soldering

Limited to Conductive Glue Mounting

Limited to Conductive Glue Mounting: Since silver palladium is used for the external electrodes,the capacitor can be mounted by conductive adhesive.

Bonding

Product for bonding: Since gold is used for the external electrodes, the capacitor can be mounted by die bonding/wire bonding.

Welding

Product for welding: Capacitor configured with lead electrodes and can be mounted by welding. Please contact us about the lead wire material.
