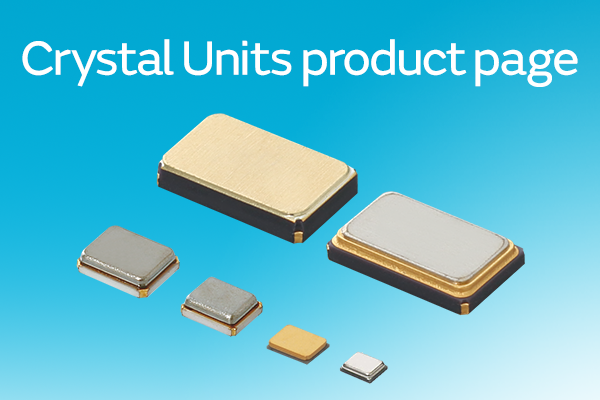

Timing Devices (MEMS Resonator / Crystal Unit / Ceramic Resonator / Oscillator)Crystal Units

Smart Meter Block Diagram

"Ceramic resonators" are used in the displays, ultrasonic flowmeter sensors, and microcomputers equipped in various smart meters (power, gas, heat, waterworks) while crystal units are used in the ICs for wired and wireless communication, and "piezoelectric sounders" are used for data reading check sound devices.

This section introduces "crystal units."

Smart Meter Requirements

What Murata Can Contribute to Smart Meters

Introduction to Crystal Units for Smart Meters

Swipe left or right to change screens View in landscape mode.

Function IC manufacturer IC part number Part number
Click a part number to check detailed product information, spec sheets, and serach for stock at Murata authorized agents, distributors and trading companies
Reference circuit constants*1 CAD data*2
STEP format
BLE Nordic Semiconductors nRF51xxx
nRF52xxx
XRCGB32M000F2P10R0 Open the PDF

nRF51xx


Open the PDF

nRF52xx

Open the PDF

XRCGB_F

Dialog Semicondoctor DA14682/3 XRCGB32M000F2P29R0 Open the PDF
Texas Instruments CC26xx XRCGB24M000FBP12R0 Open the PDF
ZigBee® Qorvo GP502
GP565
GP712
XRCGB32M000FBH50R0
LoRa® SEMTECH SX1272 XRCGB32M000F1H17R0 Open the PDF
  SX1276 XRCGB32M000F1H50R0 Open the PDF
NFC NXP Semiconductors CLRC663
PN54x/55x
XRCGB27M120F3M10R0 Open the PDF
STMicroelectronics CR95xx XRCGB27M120F2P10R0 Open the PDF
NB-IoT Media Tek MTK2625 XRCGB26M000F1H23R0

*1 Please check the actual circuit constants by IC matching service.
*2 You shall not use the DATA for any purpose other than PCB mounting design by using CAD software.

Product Details & Sample Application

Click a part number to browse detailed specifications, characteristic data, packaging data, and other information. You can request free samples on murata's website or search for stock of specific part numbers at Murata authorized agents, distributors and trading companies.

See other product solutions here
