Variable capacitors have capacitance values that can be varied by applying voltage to their electrodes.
*Typical characteristics >

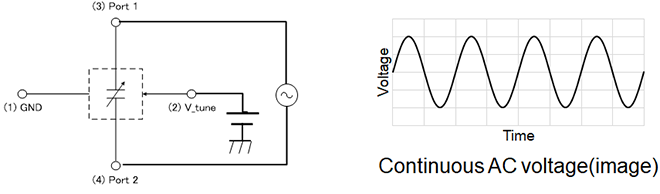

Continuous means that the specified voltage is continuously applied for Port1,2.

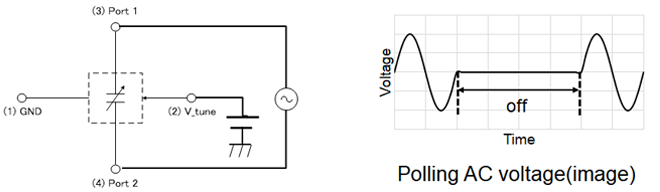

Polling means that the specified voltage is switched on and off and
applied for port1,2.(on: 40msec, off: 360msec)

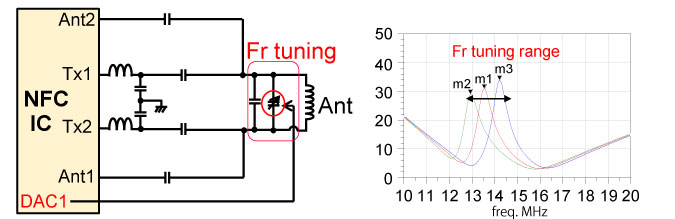

Please choose the suitable VAC for the required tuning range and step.

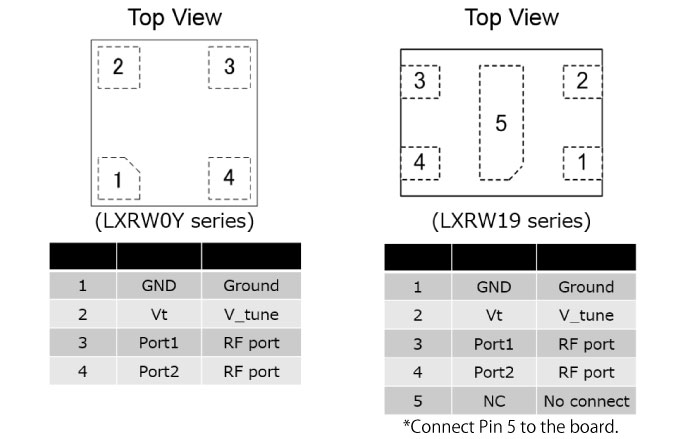

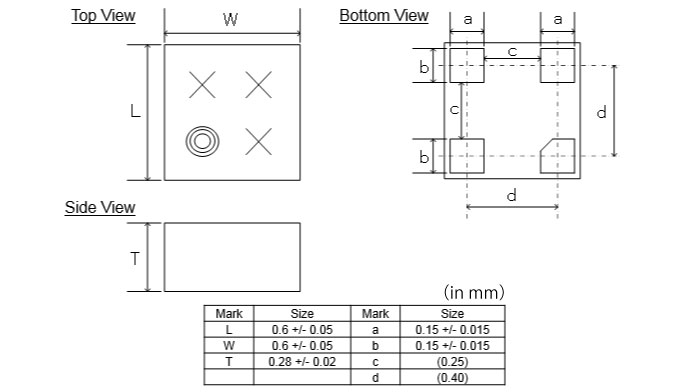

Size：0.6 × 0.6 mm（LXRW0Y series）

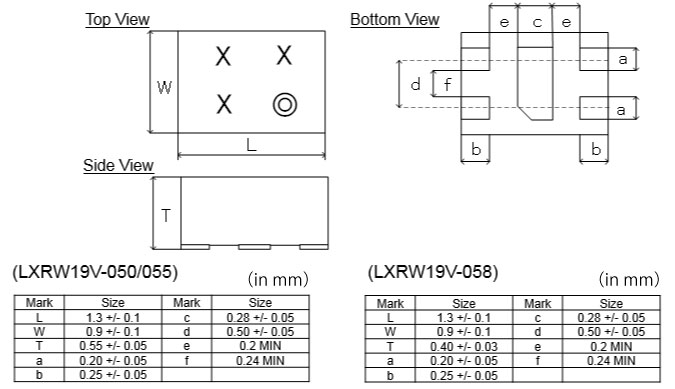

Size：1.3 × 0.9 mm（LXRW19V series）
