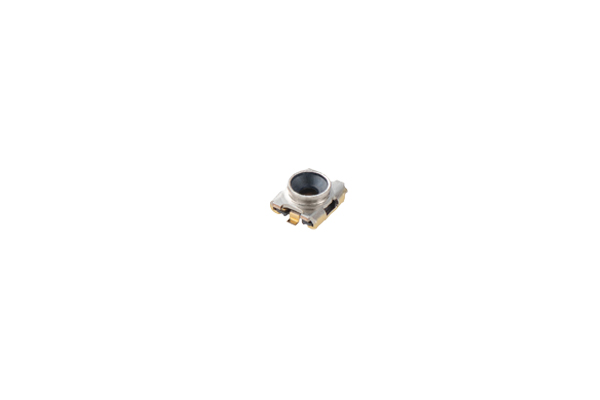

    RF / Microwave Coaxial Connectors with SwitchSWJ Series

    Part Number : MM8830-2600

    SWJ Series

    Features

    1. The worlds smallest level RF / microwave coaxial connector with switch is very useful for electrical characteristics measurement of microwave circuit for cellular phone and small wireless equipment such as wearable equipment.
    2. Size 1.4×1.2×0.65mm (L×W×H), Occupation area 1.68mm2
    3. Excellent characteristics, low IL 0.4dB max. (@12GHz), 1.3dB max. (@20GHz) V.S.W.R. 1.5 max. (9GHz to 12GHz), 1.8 max. (18GHz to 20GHz)
    4. Connector durability is 50 cycles with probe.

    Characteristics

    Specs

    Swipe left or right to change screens View in landscape mode
    Part Number Center Contact Resistance
    (mΩ max.)    		 Withstanding Voltage
    (Vrms)    		 Insulation Resistance
    (MΩ)    		 Durability
    (Cycle)    		 Nominal Frequency Range (GHz) VSWR
    (dB max.)    		 Insertion Loss (On)
    (dB max.)    		 Isolation (Off)
    (dB min.)
    MM8830-2600# 70 200 500 50 Up to 20 1.2 (DC to 8GHz)
    1.3 (8GHz to 9GHz)
    1.5 (9GHz to 12GHz)
    1.5 (12GHz to 15GHz)
    1.6 (15GHz to 18GHz)
    1.8 (18GHz to 20GHz)     		0.1 (DC to 3GHz)
    0.2 (3GHz to 6GHz)
    0.3 (6GHz to 9GHz)
    0.4 (9GHz to 12GHz)
    0.5 (12GHz to 15GHz)
    0.7 (15GHz to 18GHz)
    1.3 (18GHz to 20GHz)     		27 (DC to 3GHz)
    21 (3GHz to 6GHz)
    17 (6GHz to 9GHz)
    15 (9GHz to 12GHz)
    12 (12GHz to 15GHz)
    11 (15GHz to 18GHz)
    11 (18GHz to 20GHz)

    "#" indicates the package specification code.

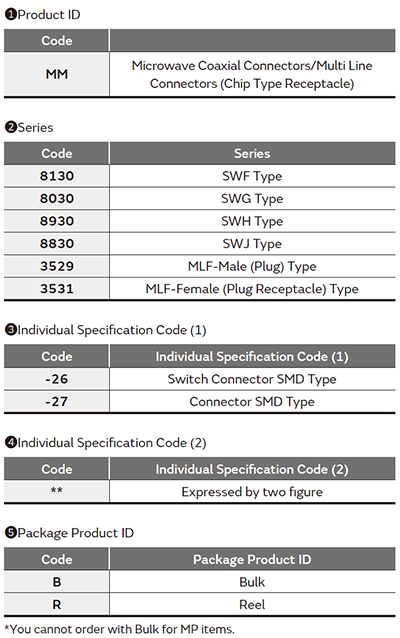

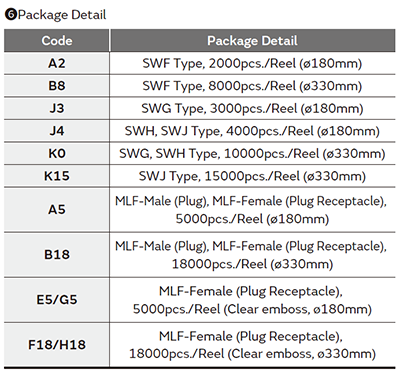

    See here for how to read part numbers and package specification codes
    • Nominal Impedance : 50Ω
    • Rated Voltage : 30Vrms
    • Temperature Rating : −40 to 85°C

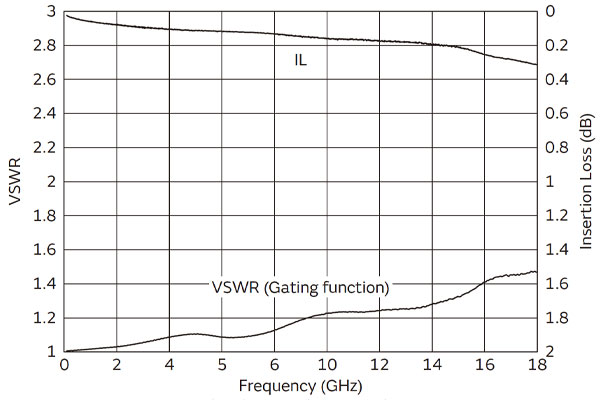

    Specification (Insertion Loss & VSWR)

    Figure of specification This data is reference only.

    Measurement method of switch connectors

    Removing test fixture characteristics from the overall measured results.

    Figure of measurement method
    • ① Network Analyzer Port 1
    • ② Network Analyzer Port 2
    • ③ Microwave Coaxial Cable
    • ④ Interface Connector
    • ⑤ Printed Circuit Board Transmission Line
    • ⑥ Microwave Switch Connector

    Packaging Information

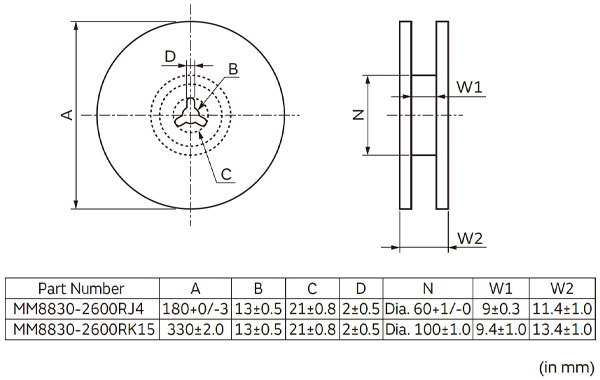

    Reel Dimensions Diagram

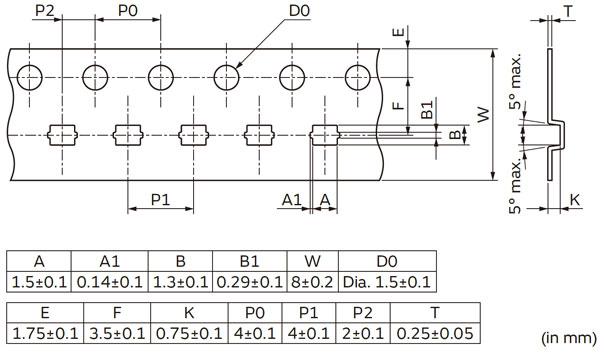

    Tape Dimensions Diagram

    Minimum Number of Units for Each Order

    • MM8830-2600RJ4 : 180 mm dia. reel/4000 pcs
    • MM8830-2600RK15 : 330 mm dia. reel/15000 pcs

    Probe Lineup

    SWJ probe lineup

    Swipe left or right to change screens View in landscape mode
    Auto probe with floating mechanism Manual probe Calibration adapter
    SMA type SMPM type With cable
    (narrow pitch type)    		 With cable No cable Straight type Right angle type
    MM126715 PDF MM206819 PDF MXFQB1PY1000
    (Pitch : min. 2.7mm, 100mm) PDF     		MXHQ87PK3000
    (SMA-Female, 300mm) PDF     		MM126711 PDF MM126714 PDF MM126712 PDF
    MXHQ87PK1000
    (SMA-Female, 100mm) PDF
    MXFQB1RU2000
    (narrow pitch type,
    SMA-Female, 200mm)     PDF
    MXFQB1RU3000
    (narrow pitch type,
    SMA-Female, 300mm)     PDF
    A description of probes can be found here

    Technical Support

    "my Murata Connector Site" Website for Members

    Design support data Open in New Window

    You can download 3D Models (STEP), 3D CAE Data (For Ansys HFSS™), instruction manuals, and more here.

    See all
    • *We have posted this data on the "my Murata Open in New Window " website for members. You need to create a my Murata account, log into it, and then apply to use the "Connector Site" to view the data.
    Inquiries

    Send your inquiry
    SimSurfing Open in New Window

    The software 'SimSurfing' simulates the characteristics of Murata products.
