Soil sensorRecommended Installation Methods for Soil Sensor Main Units

Interface

Sensor main unit size 132.5 × 27 × 16.2 mm

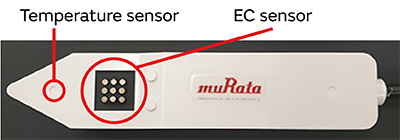

Top surface
(EC electrode surface)
Image of top surface

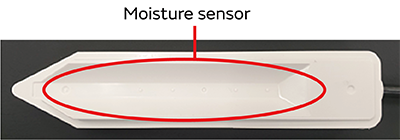

Bottom surface
(V-groove surface)
Image of bottom surface

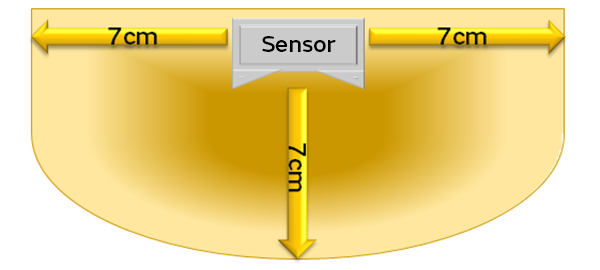

Range of Measurement Effect

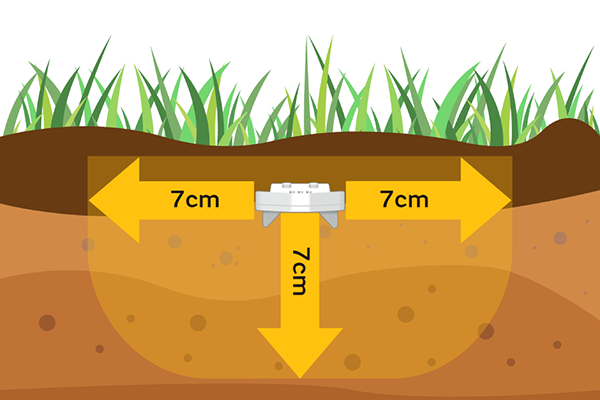

Sensors are able to measure volumetric water content (VWC) and pore EC in soil for a range of 7 cm to either side, and 7 cm downward.

  • Install sensors with the EC sensor (the nine-electrode side) facing up, and the water content sensor facing down.
  • Install each sensor such that the surface of the EC sensor is at the desired depth below the ground surface.
  • Sensors continue to function in the soil after they are installed, even with irrigation, making it possible to obtain measurement data in real time.
Image of range of measurement effect

Precautions for Installation

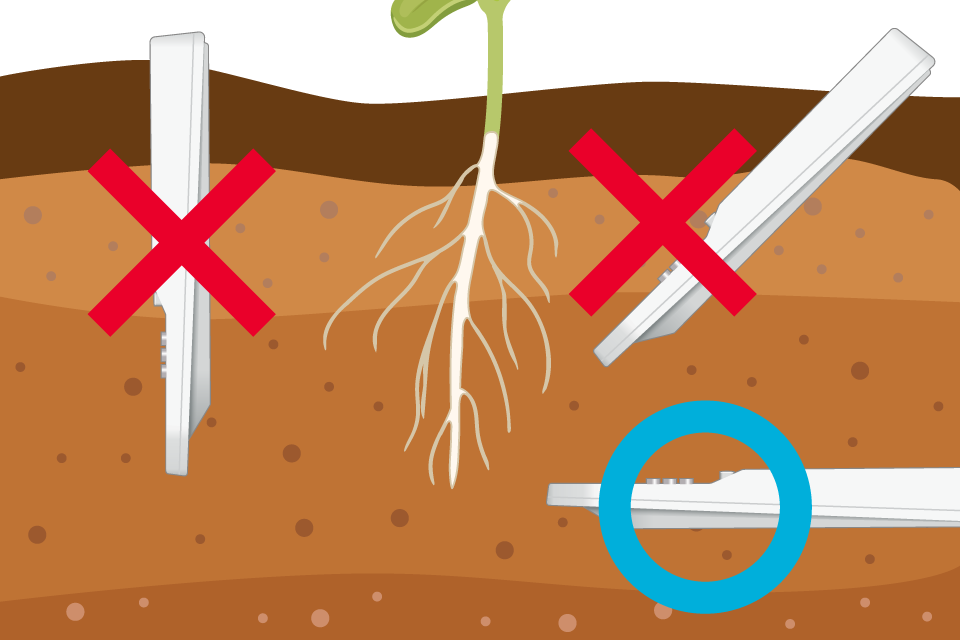

  • Make sure to install horizontally with the EC electrodes facing up and the moisture sensor (V-groove) facing down.
  • Do not insert vertically or at an angle.
Image of installation

Video of the Recommended Installation Methods

Learn about how to install soil sensors and what to keep in mind when installing the soil sensors. The video can be useful as reference when installing soil sensors in farm fields.

Video on how to effectively use soil sensors, including the evaluation system:

Recommended Installation Method

When you want to install the soil sensor in a shallow area of soft soil

Image of method 1
1

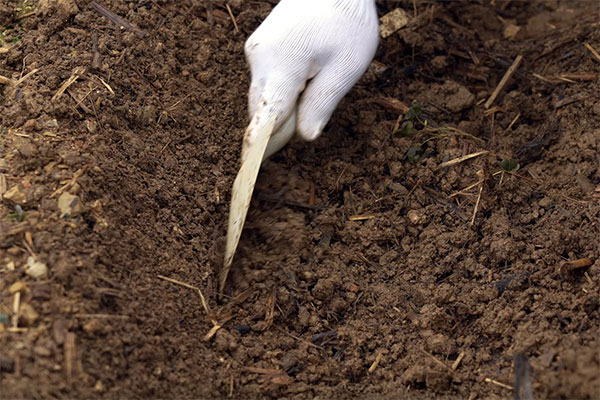

Dig a hole for the sensor.
Image of method 2
2

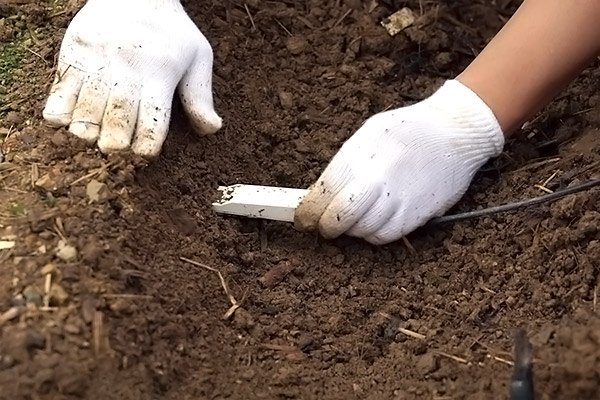

Insert the entire sensor horizontally into the sidewall of the hole with the EC electrodes facing up and then secure it in place.
Image of method 3
3

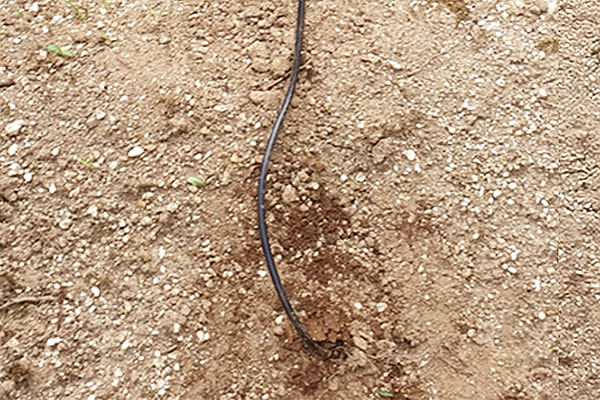

Fill in the hole.
Image of note
Note

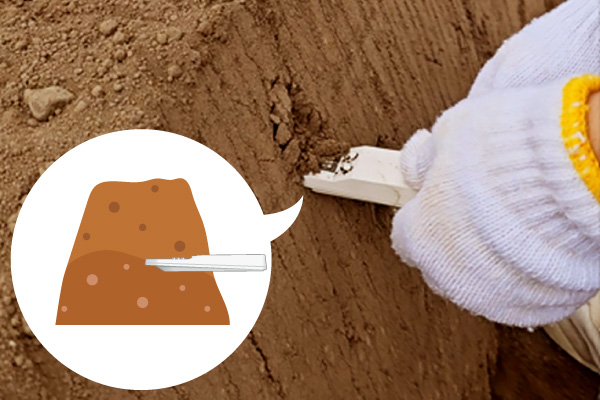

If the field has ridges, thrust the sensor into a ridge from the side.

When you want to install the soil sensor in a shallow area of hard soil

Image of method 1
1

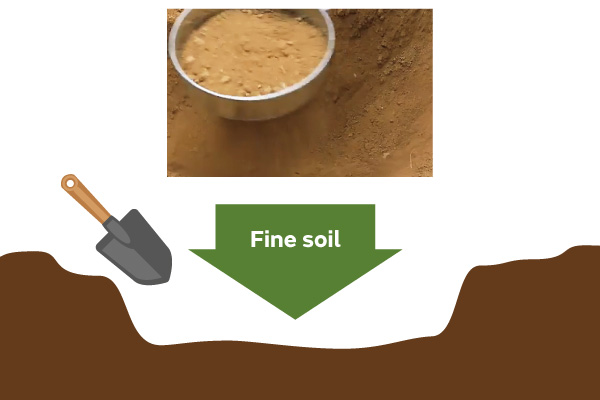

Dig a hole for the sensor and sift fine soil into the hole.
Image of method 2
2

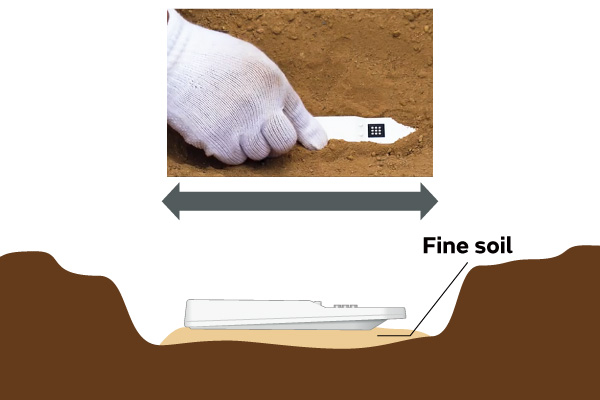

Firmly press the V-groove of the sensor into the soil and rub it back and forth. In this way, firmly press the groove into the fine soil.
Image of method 3
3

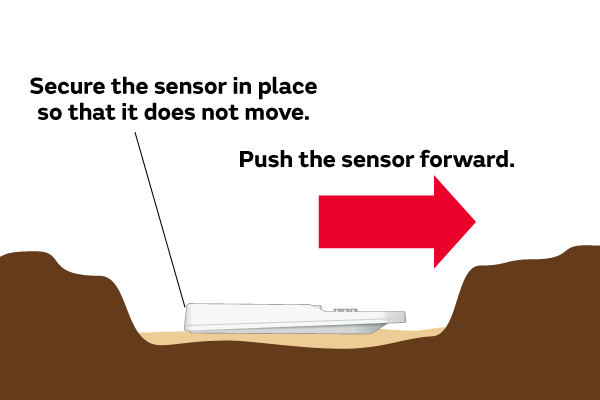

Secure the sensor in place by pushing it forward.
Image of method 4
4

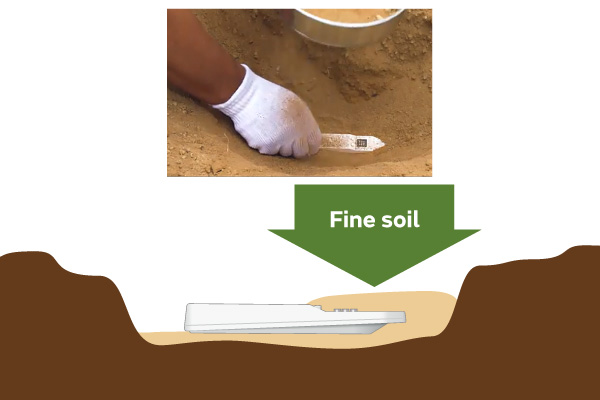

With the sensor secured in place, sift fine soil on top of the EC electrodes until they are covered.
Image of method 5
5

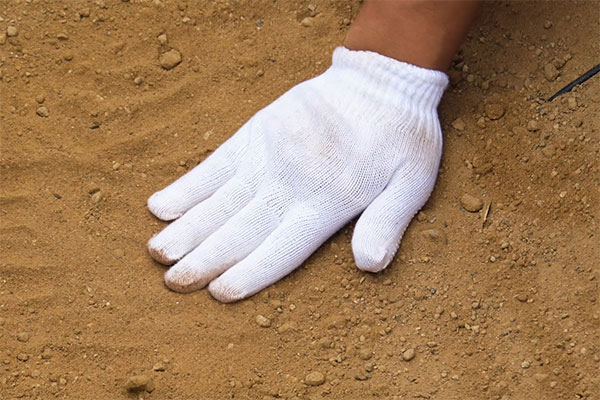

After covering the sensor with some fine soil, mix in soil from the surroundings and continue covering the sensor until it is fully buried.

When you want to install the soil sensor in a deep area of hard soil

Image of method 1
1

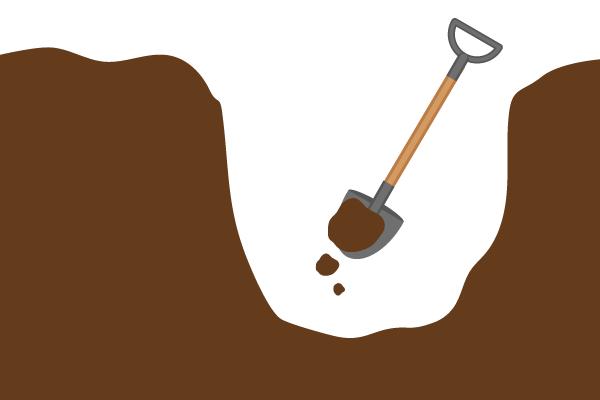

Dig a vertical hole.
Image of method 2
2
Dig a horizontal hole at the target depth. Dig deep enough that the V-groove at the bottom of the sensor is completely buried.
Image of method 3
3

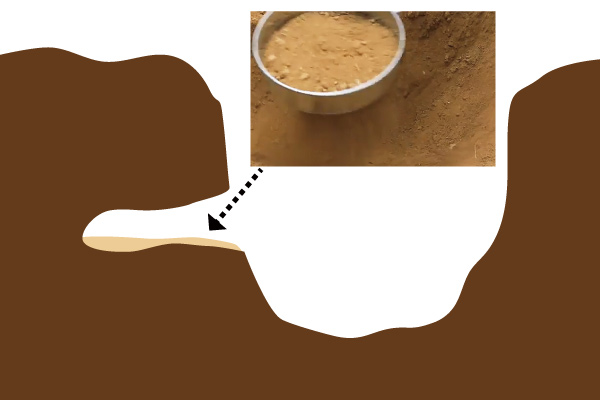

Line the bottom of the hole with sifted soil.
Image of method 4
4
Set the sensor in place and insert it so that soil fills the V-groove at the bottom.
Image of method 5
5

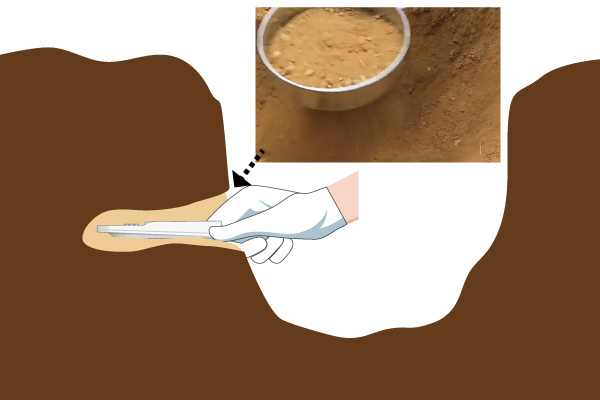

Push the sensor in while sifting soil on top of the nine electrodes to bury them. Fill in the vertical hole.
Image of note
Note

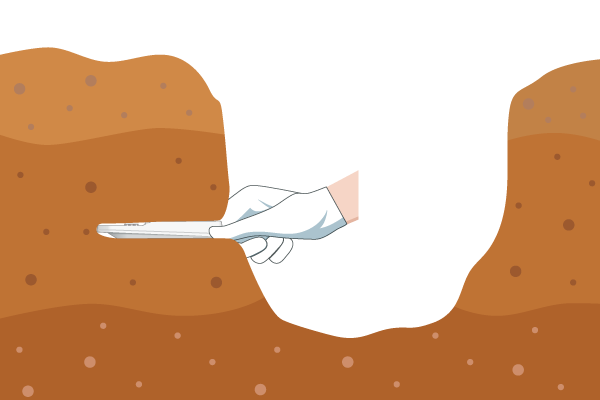

If you want to install the soil sensor in a deep area of soft soil, dig a hole vertically and then thrust it into the side.

Advanced Application: Three-dimensional distribution measurement also possible

The moisture content and EC values in the soil are three-dimensionally distributed from the irrigation tube position.
Three-dimensional distribution measurement of soil conditions is possible by arranging the sensor positions with comprehensive consideration of factors such as the type of crop and positioning of the irrigation tube and seedlings.

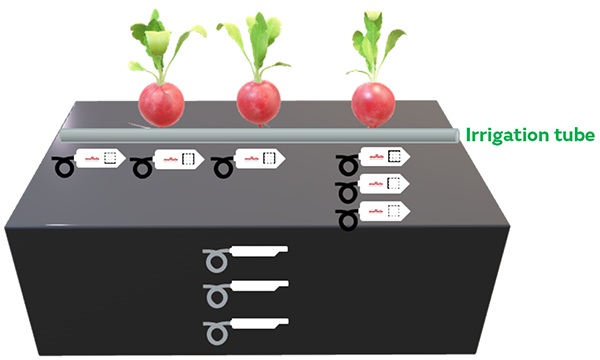

  • Image 1 of three-dimensional distribution measurement

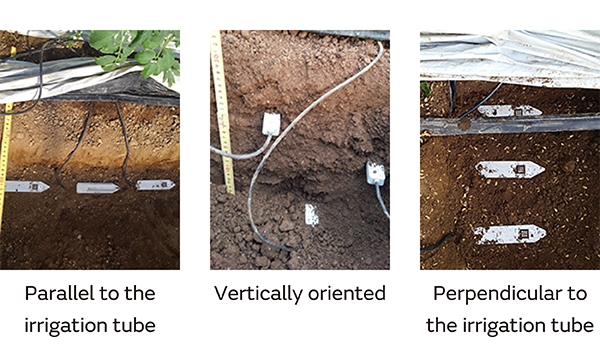

  • Image 2 of three-dimensional distribution measurement

Inquiries

Contact us below for purchasing or any questions or other inquiries about soil sensors.
