Murata Icon X What is currently happening in electric vehicle (EV/PHEV) development?

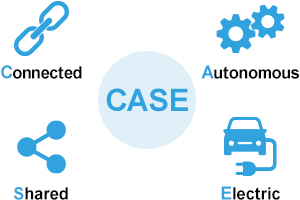

The "CASE" Technological Innovation

"CASE" is the keyword representing the latest trend in the automotive industry. It stands for the technology that is reshaping the automotive industry in a wave that is being called a "once-in-100-years automotive innovation." These four technological developments are proceeding in the automotive industry, and the market is expected to grow further in the future.

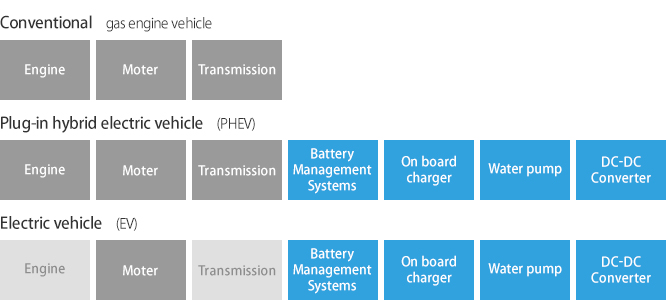

Additional functions due to electrification

With the spread of electric vehicles, demand has increased for vehicle-mounted battery management systems (BMS), on-board chargers (OBC), water pumps (WP), and DC-DC converters in the car.

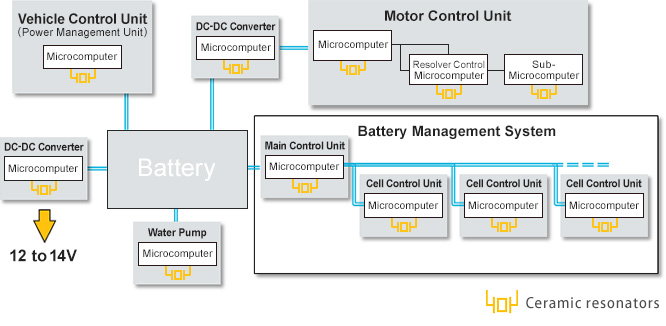

Demand for timing device parts

Demand is increasing for timing device related components in EV/PHEV functions.

A free sample kit

for Electric Vehicle (EV/PHEV) devices is available

The sample kit incorporates seven optimal parts designed for the EV/PHEV market.
We have limited quantities that will only be available while supplies last.
Request an EV/PHEV sample kit
* Please note that feedback will be requested after sending the sample kit to help ensure we are constantly optimizing our selection.
* Please apply with the company email address. (Do not use private email address.)

You must register as a my Murata member to request samples.

Sign in - my Murata

* Please be aware that sample requests may occasionally be canceled for various reasons.
* You may not request samples of the same part number more than once within a 30-day period.
* You must enable cookies in your browser in order to use the my Murata free sample request program. Please also refer to our policy regarding samples.

Why should you choose
Murata's automotive
ceramic resonators (CERALOCK)?

Murata's CERALOCK includes built-in load capacitors, which simplify the oscillation circuit design. The built-in load capacitors also assist in reducing PCB board space utilization by incorporating one component as opposed to three.
We have contributed to the safety and security of our customers for decades by meeting the highest reliability requirements for automotive devices.
  • Compact size and low profile, and reducing number of parts in your design

    Designing without external capacitors reduces the board space used by approximately 48% (compared to the 3225 oscillator) allowing for more component implementation.
  • Contributing to higher reliability for vehicle-mounted devices

    Supporting temperatures up to 150°C in compliance with AEC-Q200, CERALOCK has electrical characteristics compatible with CAN and other high-precision communication. Designed for high-temperature environments, it is suitable for use near the engine, battery, and similar locations.
  • Contributing to safety and reliability

    Murata has a proven track record in the global market for automotive applications and has performed IC matching for more than 40,000 cases.

Murata Icon X Free sample kit containing our optimum products for electric vehicles (EV/PHEV)

The sample kit incorporates seven optimal parts designed for the EV/PHEV market.
We have limited quantities that will only be available while supplies last.
* Please note that feedback will be requested after sending the sample kit to help ensure we are constantly optimizing our selection.
* Please apply with the company email address. (Do not use private email address.)
Request a free sample kit

Download PDF for part numbers in the kit

You can download a PDF containing a list of the part numbers contained in the kit.

PDF download

Recommended for

  • Developers who want to test multiple frequencies
  • Developers who are considering a simple design or Murata's CERALOCK for the first time
  • Developers who want to avoid multiple orders

Details of part numbers in package

Click the part number to view the detailed specifications, characteristics data, package information, and more.
You can request a free sample inventory check with our authorized distributors.

Series Size Frequency Frequency deviation
(at 25℃)
Part number
CSTNR_G_C series 4.5 x 2.0 x 1.2 mm 4MHz ±0.07% CSTNR4M00GH5C000R0
CSTNE_G_C series 3.2 x 1.3 x 0.8 mm 8MHz ±0.07% CSTNE8M00GH5C000R0
10MHz ±0.07% CSTNE10M0GH5C000R0
12MHz ±0.07% CSTNE12M0GH5C000R0
CSTNE_V_C series 3.2 x 1.3 x 1.0 mm 16MHz ±0.07% CSTNE16M0VH3C000R0
20MHz ±0.07% CSTNE20M0VH3C000R0
24MHz ±0.07% CSTNE24M0VH3C000R0
* Please contact us for information about 150℃ compliant products.
CSTNR_G_Y Series (Part Number Example: CSTNR4M00GH5Y***R0)
CSTNE_G_Y Series (Part Number Example: CSTNE8M00GH5Y***R0)
CSTNE_V_Y Series (Part Number Example: CSTNE16M0VH3Y***R0)
