Thin Film Circuit Substrates (RUSUB)Product Lineup for Decoupling

Standard Products

  • 13 types of standard products suitable for decoupling are available.
  • Custom samples are also available upon request.
Swipe left or right to change screens View in landscape mode.
Part Number Capacitance
(pF)
Material
(εr)
Dimensions
(mm)
Thickness
(μm)
Resistance
(Ω)
S-parameters
RUCYT101K00009GNTC 100 3000 1.0×0.5 110 50Ω In preparation
RUCYT101K00011GNTC 100 3000 1.0×0.5 110 100Ω
RUCYT101K00012GNTC 100 3000 1.0×0.5 110 200Ω
RUCYT201K00010GNTC 200 3000 1.0×1.0 120 50Ω
RUCYT201K00013GNTC 200 3000 1.0×1.0 120 100Ω
RUCYT201K00014GNTC 200 3000 1.0×1.0 120 200Ω
RUCQD101RCC007GNTC 100 30000 a=0.34 250 -
RUCQD431RCC001GNZB 430 30000 a=0.70 250 -
RUCQD471RCC002GNZB 470 30000 a=0.73 250 -
RUCQD511RCC003GNZB 510 30000 a=0.76 250 -
RUCQD561RCC004GNZB 560 30000 a=0.80 250 -
RUCQD102RCC008GNZB 1000 30000 a=1.07 250 -
RUCQD201ZCC005GNZB 200×4 30000 1.1×0.6 250 -

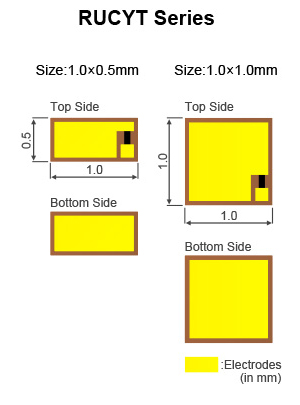

Shape
