This article describes how to calculate the output ripple voltage of a DC-DC converter.

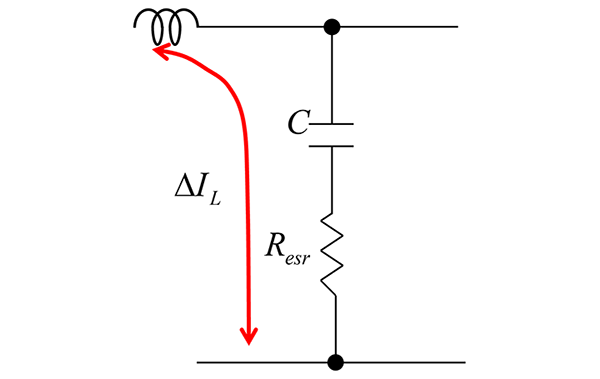

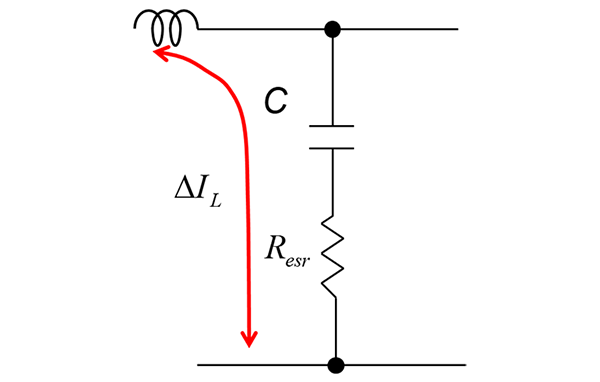

Assuming that all the ripple current ΔIL flows through the output capacitor, the ripple voltage ΔVo is as follows.

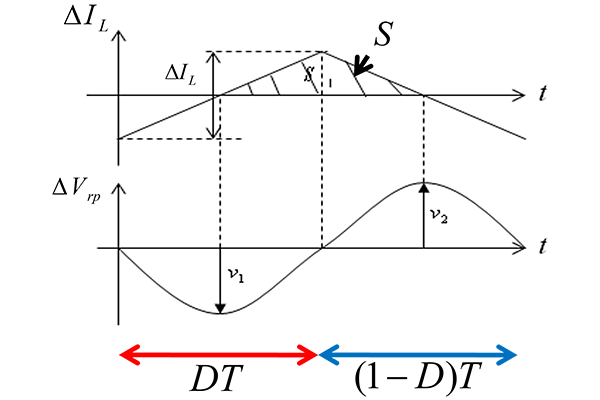

The ripple voltage Vrp generated for a capacitance C of the capacitor is as follows.
The voltage Vesr generated in the ESR of the capacitor is as follows.
To suppress the ripple voltage due to ESR, a ceramic capacitor with low ESR can be connected in parallel to reduce Resr, which is effective in suppressing ripple.
