For the management of clothing, shoes, and leather goods | UHF band RFID

Features

Compact and easy to use

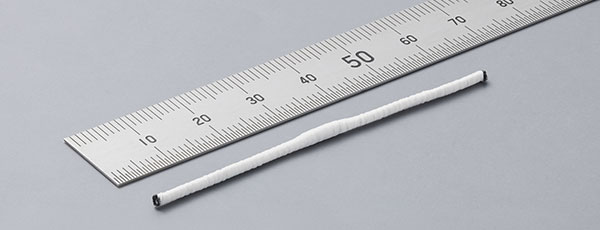

E-Lix adopts a Murata RFID module and is compact at just 60 mm long and 1.8 mm in diameter. This makes it extremely small as an RFID tag for clothing, shoes, and leather goods, which facilitates embedding.

High durability

Passed a 200-wash laundry test: E-Lix has been confirmed to withstand 200 washes in an industrial laundry test compliant with the NF EN ISO 15797 standard. It can be safely used for work clothing and other items subject to repeated washing.
Compatible with high-temperature sterilization treatment: E-Lix is resistant to high-temperature sterilization, in conformance with the ISO 11140-1 and NF EN 867-1 standards. It can withstand up to 200 cycles of prion sterilization at 134 to 138°C for 18 to 60 minutes.

Extensive product lineup

The lineup includes the E-Lix (white) single unit, E-Lix (white/black pocket tags), and E-Lix (thermal transfer). The various products can be embedded in clothing, shoes, and leather goods in a natural and inconspicuous way.

Series Lineup

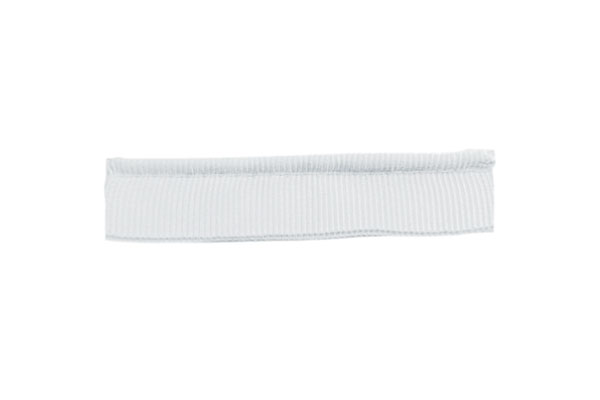

Product name	E-Lix	E-Lix Thermo	E-Lix P black	E-Lix P white
Product name	Single unit	Thermal transfer type	Sew-on type (black)	Sew-on type (white)
Application	Management of clothing and shoes (uniforms, work clothes, work shoes, etc.) and leather goods (accessories, etc.)

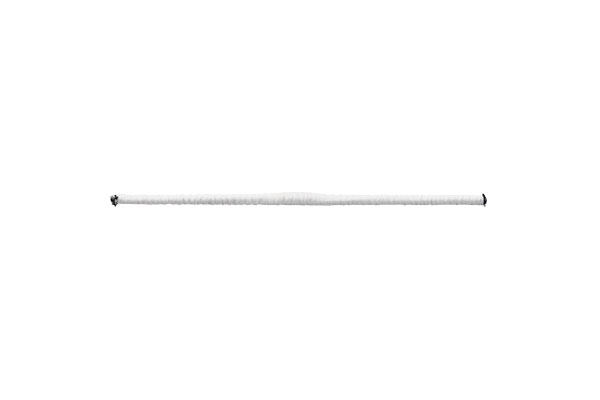

Appearance
RFID standard	ISO 18000-63 / EPC Global Gen2v2
Frequency	UHF band (860 to 960 MHz)
IC	Impinj M750
EPC memory	96 bit
User memory	32 bit
Size	Total length: 60 mm		Total length: 60 mm
	Diameter: 1.8 mm		Diameter: 2 mm
	-		Width: 12.5 mm
Read range^*	6 m or less		5.5 m or less

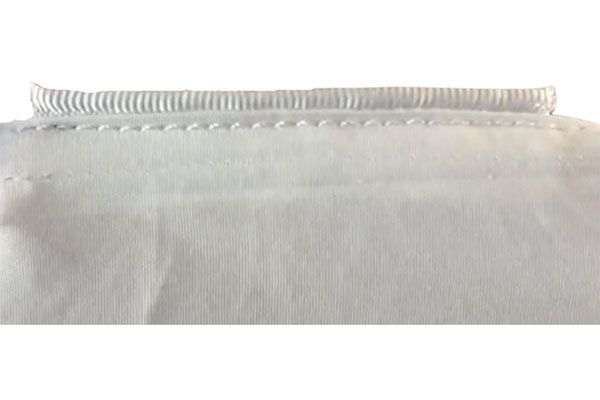

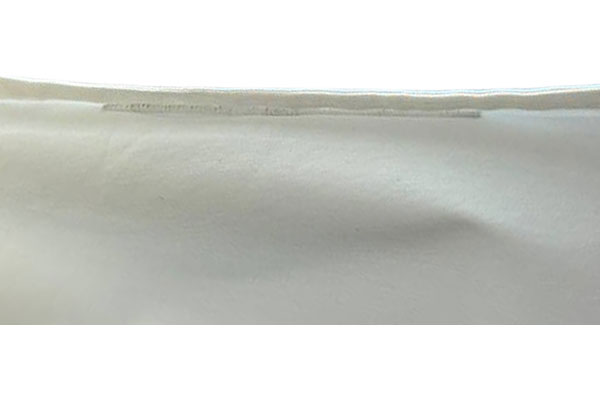

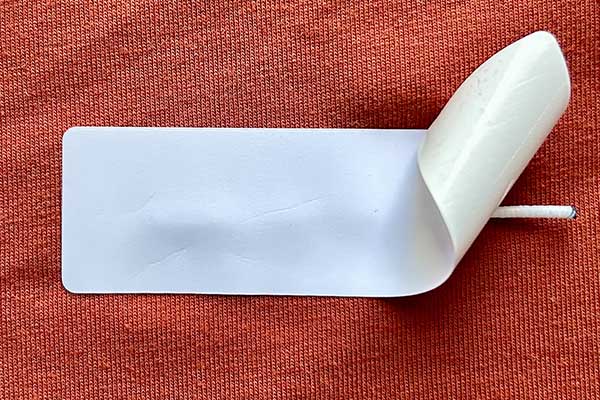

Recommended embedding method	Cover with a thermal transfer label and press with an iron set to 80 to 100°C for 12 seconds.	Sandwich between clothing layers and press with an iron set to 105°C for 12 seconds.	Sandwich the cloth part of E-Lix between clothing layers and sew it on.
