    Wi-Fi® + Bluetooth® ModulesType WM

    Order Number LBEP5CLWMC-633

    • To be discontinued
    Read more

    Contents

    Overview

    Ultra Small Wi-Fi® 11a/b/g/n + Bluetooth® 5.1 Module
    • 2.4GHz & 5GHz Wi-Fi® + Bluetooth® Module
    • Chipset: TI (WiLink8 WL1833)
    • Processor: No
    High Performance Capabilities for Internet of Things
    • For Industrial IoT, Smart Home, Sensor Network, Gateway
    • 802.11 a/b/g/n 72Mbps
    • Included in Module: On-board reference clock, RF switches and Diplexer to feed a common RF port

    Contact menu

    Contact Us
    Back to the contents

    Description

    The Type WM is a Wi-Fi® 802.11a/b/g/n and Bluetooth® v5.1 wireless module based on the TI WiLink 8.0 WL1833. This next-generation mobile market platform features a compact WSP package and includes all required RF front ends, a complete power management system, and comprehensive coexistence mechanisms.

    The Type WM is ideally suited for enabling wireless connectivity in automotive content sharing and viewing from smartphones and tablets-to-in-car systems, easy pairing of devices, navigation, and even wire replacement to sensors on tires and other equipment.

    Back to the contents

    Specs

    Back to the contents

    Documents

    Document Statement

    For latest version of datasheet and other related documents, please engage with Murata sales team and wireless team to determine if this module is suitable for your applications.
    Back to the contents

    Software

    Software

    Please get TI Wi-Fi® driver software through TI support channel. For deeper software technical support, driver porting support or advanced features support, Intelligraphics can provide you the best support. Please refer to the Software Guide and contact to Intelligraphics for the detail.
    Software Guide
    Driver Firmware Linux / Android driver through TI support channel. Intelligraphics can provide advanced software.
    Back to the contents

    Block Diagram

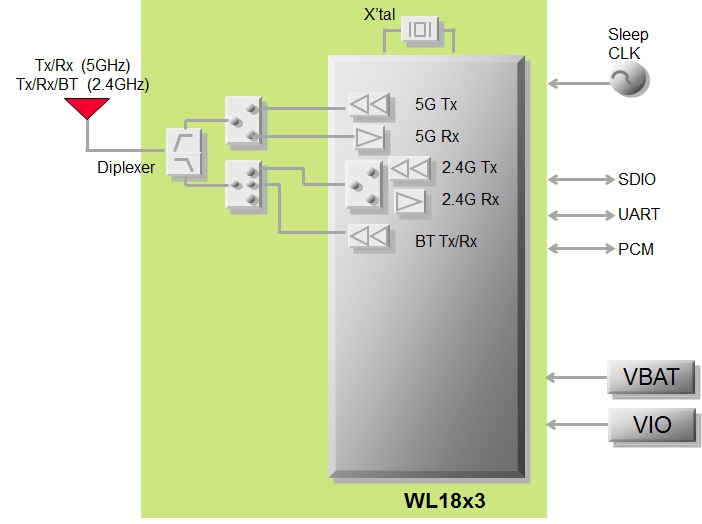

    Block Diagram : Type WM
    Back to the contents

    Eval Tool

    Dev Kit Features
    For RF testing - order both the -D (Daughter Card) and -AA (Mother Board)
    • LBEP5CLWMC-TEMP-D
    • LBEP5CLWMC-TEMP-AA
    For Platform testing order -D (Daughter Card) and request SDIO and UART cable assemblies.
    • LBEP5CLWMC-TEMP-D
    Back to the contents

    Purchase

    Production Part Number LBEP5CLWMC-633
    Development Kit Part Number LBEP5CLWMC-TEMP-D
    Purchase

    Please engage with Murata sales team and wireless team to determine if this module is suitable for your applications.

    Murata reserves the right to support or not to support requests based on the corporate policy that includes export control and application restrictions, annual volume requirement (100kpcs) or other requirements.

    To expedite the qualification of your application for these modules, please submit the information through the Contact Us button on the top.
    Order Increment 2,000
