Wi-Fi® + Bluetooth® ModulesuSD-M2 Adapter

Order Number LBEE0ZZ1WE-TEMP

  • inproduction
  • recommended
Read more

Overview

Adapter interface for Murata’s Wi-Fi®/Bluetooth® modules using Embedded Artists’ M.2 EVBs
  • Adapter
  • microSD or full-size SD interconnect for WLAN-SDIO
  • Flex Flat Cable (FFC) or jumper cable interconnect for BT-UART and control signals
  • Custom interconnect solution for NXP i.MX RT, 6, and 8 families
  • Native MCUXpresso software support with NXP’s i.MX RT 10xx family
  • Native Linux software support on NXP’s i.MX 6 and 8 families
  • Provides customizable interconnection to other application processor EVKs
  • New Rev. B1 adapter currently shipping (backwards compatible to Rev. A)
  • Replaces legacy Murata V1/V2 interconnect (i.MX 6 EVKs)

Description

Murata collaborated closely with Embedded Artists AB to arrive at a seamless interconnect solution to enable Murata’s Wi-Fi®/Bluetooth® modules on NXP’s i.MX Reference Platforms. Murata provides the uSD-M.2 Adapter; while Embedded Artists provides various M.2 module solutions with Murata module onboard.

Murata’s uSD-M.2 Adapter plugs into the NXP i.MX EVK; with Embedded Artists’ M.2 module interconnecting with the uSD-M.2 Adapter. All necessary WLAN/Bluetooth® signals including WLAN-SDIO, BT-UART, BT PCM/I2S, and WLAN/BT control/debug signals are included on M.2 connector pins (Key “E”). You can learn more about Murata’s wireless solutions for NXP i.MX family here. Additional useful landing pages include NXP-based modules, and Infineon (Cypress) based modules. Current Murata module support includes:

  • NXP Type 2DS, 1XK, and 1ZM on MCUXpresso platforms.
  • NXP Type 1XK, 1ZM, and 1YM (WLAN-SDIO) on Linux/Android platforms.
  • Infineon/Cypress Type 1DX, 1MW, and 1LV on MCUXpresso/Linux platforms.

Murata’s wireless i.MX Solution landing page provides detailed descriptions on various hardware/software configurations supported with the uSD-M.2 Adapter interconnect. Just highlighting key NXP i.MX platforms supported here:

  • NXP i.MX 8M Mini/Nano Evaluation Kits
  • NXP i.MX 6Quad(Plus)/DualLite/Solo Sabre Boards
  • NXP i.MX 6SoloX Sabre Board
  • NXP i.MX 6UL/ULL Evaluation Kits
  • NXP i.MX RT1064/1060/1050/1020 Evaluation Kits

Murata’s uSD-M.2 Adapter provides an ideal solution when microSD or SD connection is required for WLAN support. With some of the newer NXP platforms (i.MX RT1170 EVK), a direct M.2 connector is provided onboard; thereby only requiring Embedded Artists’ Wi-Fi®/BT M.2 EVB with Murata module onboard. In addition to NXP’s i.MX platforms, Embedded Artists provide enhanced solutions for customers enabling all different Murata wireless modules on a wide spectrum of NXP i.MX processors. For hardware specifics on supported i.MX interconnects with Murata’s uSD-M.2 Adapter, please refer to Murata’s Wi-Fi®/BT Solution for i.MX Hardware User Manual.

Specs

Product Type Adapter
Product Status in production recommended
Accessory Details
  • Provides uSD-M2 interconnect for NXP i.MX (RT/6/8) EVKs
  • M.2 screw for attaching Embedded Artists’ M.2 Module Family
  • Flex Flat Cable (FFC) for additional I/O connection – i.MX 6 EVKs
  • Male-to-female jumper cables for Arduino header connection - i.MX RT/8 EVKs
  • Nylon stand-offs and screws for proper mechanical support
  • microSD to SD Adapter - i.MX 6 EVKs
  • Test points, WLAN-JTAG connector
  • Onboard voltage level (VIO) shifters for BT-UART and WLAN/BT CTRL GPIOs

Documents

Products Data Sheet

Last Update: Jan 26, 2021

Products Related Files

If you would like a product catalog or technical data, please check the check box and download it from the download button below.

Swipe left or right to change screens. View in landscape mode.
Type File Name File size Last Update
Product Brief usd-m2_product_brief_revB1.pdf PDF: 432KB -

Block Diagram

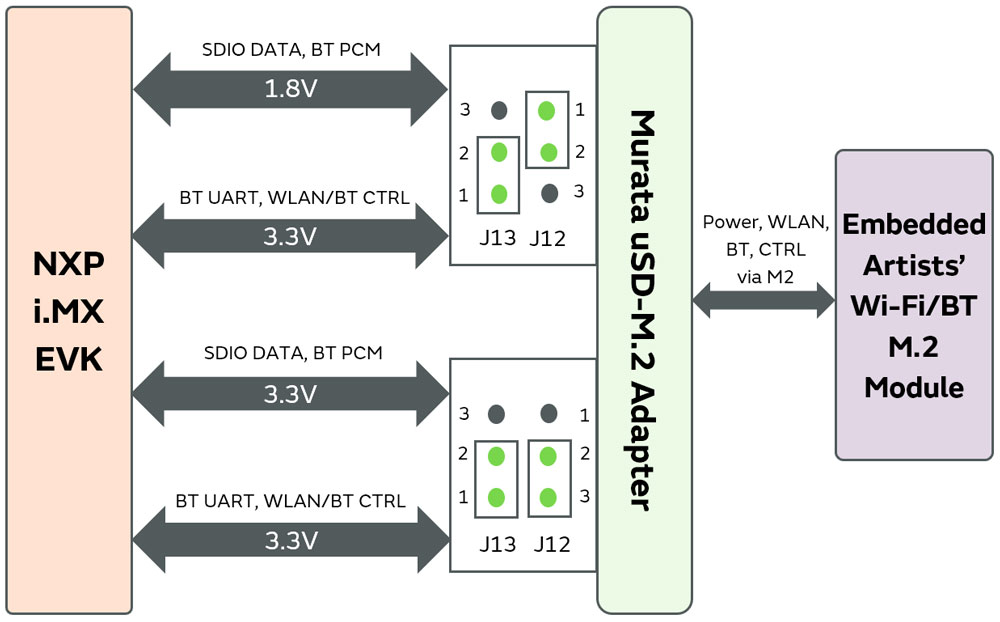

Block Diagram : uSD-M2 Adapter

Eval Tool

Evaluation Tool

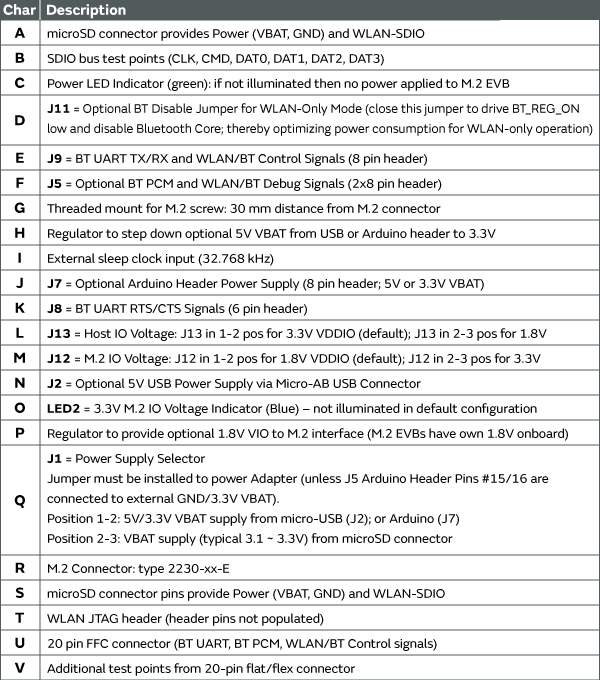

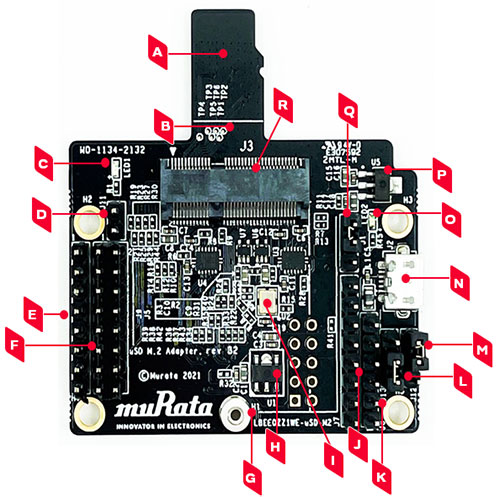

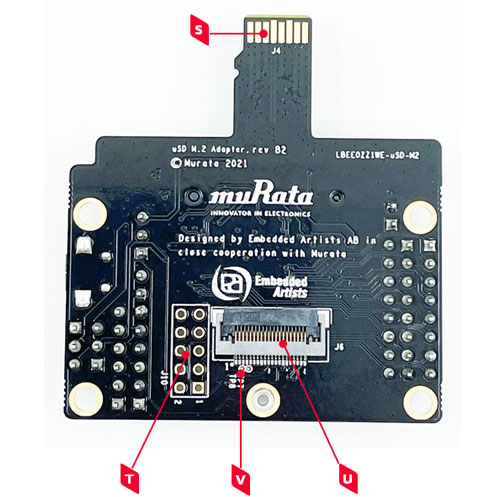

Top and bottom views of the uSD-M.2 Adapter are shown below, with the table providing detailed explanations. The uSD-M.2 Adapter supports additional signals to WLAN-SDIO using either Arduino headers (J5, J8, and J9) or 20 pin FFC connector (J6). The 20 pin FFC connector is currently supported by NXP’s i.MX 6 Platforms. The Arduino headers provides interconnect options to i.MX RT/8 Platforms. For more details on interconnecting with NXP’s evaluation platforms, refer to Murata’s Wi-Fi®/BT Solution for i.MX Hardware User Manual.

Further below Adapter pictures, are examples of uSD-M.2 Adapter interconnect with supported NXP platforms. Again for more information, please refer to Murata’s wireless i.MX Solution landing page.

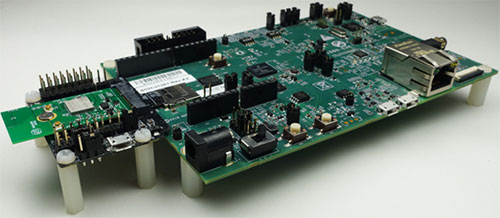

i.MX RT 1050 EVK with uSD-M.2 Adapter and Type 1DX M.2 EVB

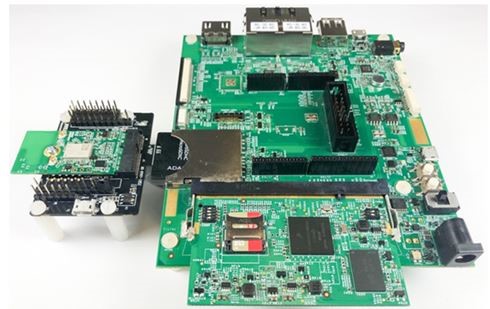

i.MX 6UL EVK with uSD-M.2 Adapter and Type 1LV M.2 EVB

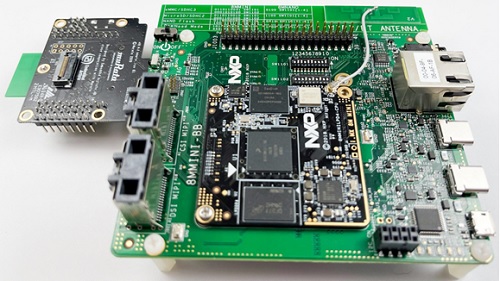

i.MX 8M Mini EVK with uSD-M.2 Adapter + Type 1ZM M.2 EVB (WLAN Only)
