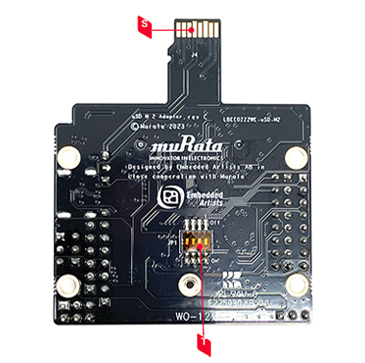

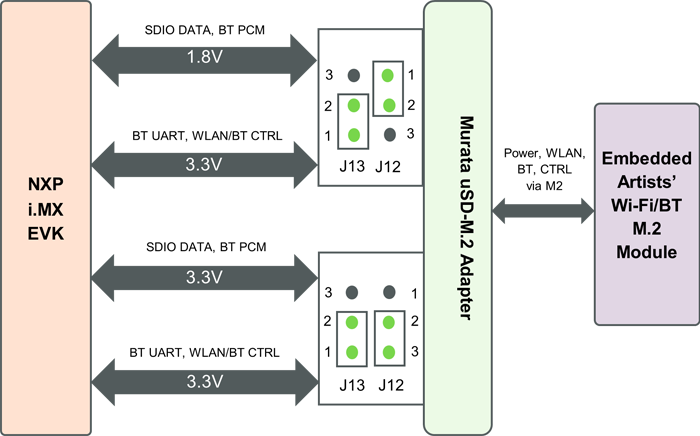

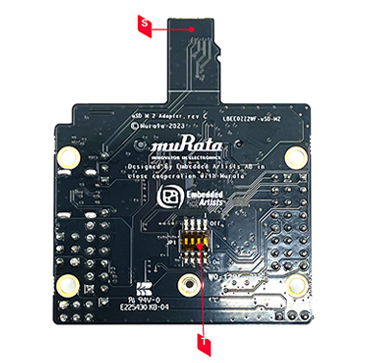

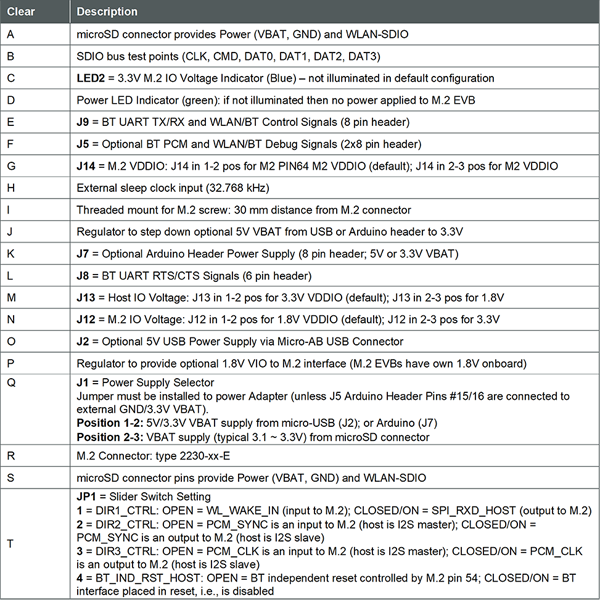

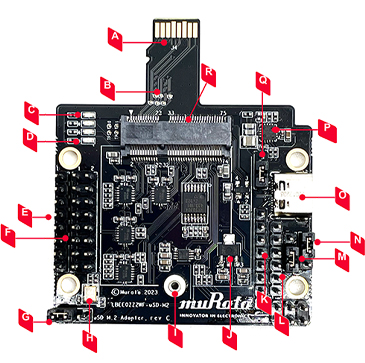

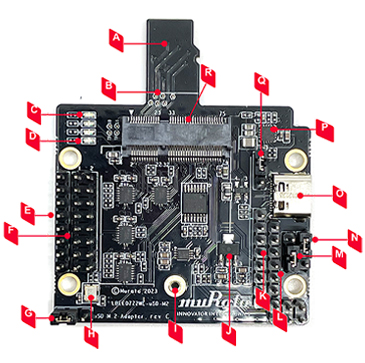

Top and bottom views of the uSD-M.2 Adapter are shown below, with the table providing detailed explanations. The uSD-M.2 Adapter supports additional signals to WLAN-SDIO using either Arduino headers (J5, J8, and J9) or 20 pin FFC connector (J6). The Arduino headers provides interconnect options to i.MX RT/8 Platforms. For more details on interconnecting with NXP’s evaluation platforms, refer to Murata’s Wi-Fi®/BT Solution for i.MX Hardware User Manual.

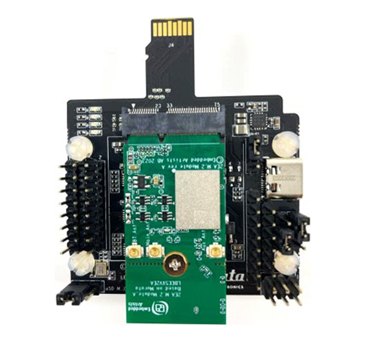

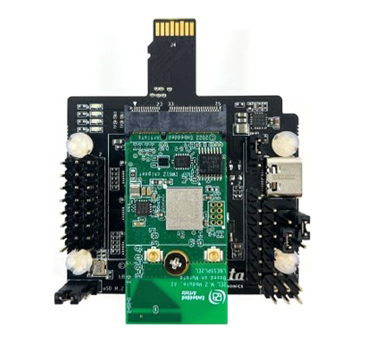

Further below Adapter pictures, are examples of uSD-M.2 Adapter interconnect with supported NXP platforms. Again for more information, please refer to Murata’s wireless i.MX Solution landing page.
