Ceramic CapacitorRecommended leaded MLCC product series

Leaded MLCCs feature "ease of use"

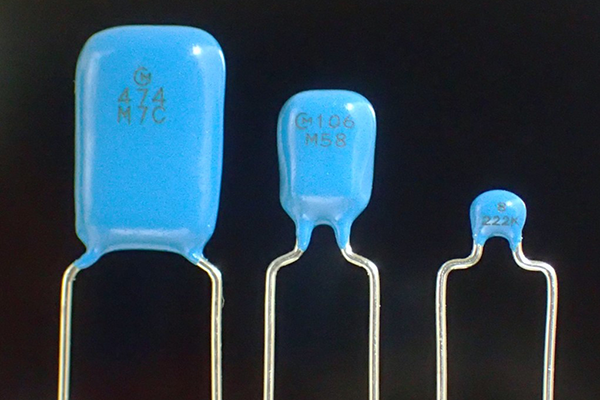

A leaded MLCC is a resin-coated product consisting of lead wires connected to the electrodes of a chip MLCC.
The resin coating and lead wires provide various added value in addition to the MLCC features of compact size, large capacitance, and long-term reliability.

Five features
Application Examples
Specifications
Lineup
Questionnaire

Five features

1. Products with high wiring flexibility

Leaded MLCCs can be used for boardless mounting called point-to-point construction.

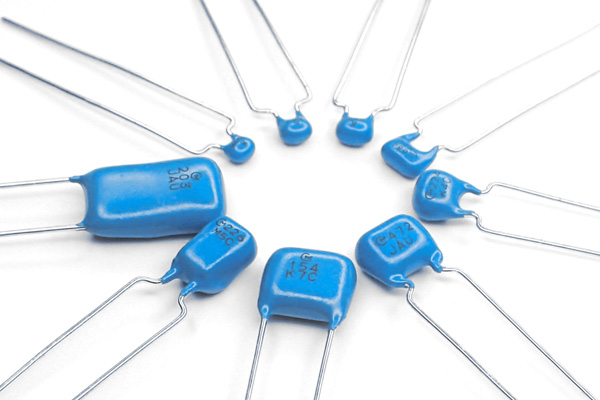

By forming the lead wires, various layouts can be considered even in limited spaces where board use is not desired or boards cannot fit.
These products can also be added relatively easily to existing layouts, making it easy to respond to sudden design changes.

2. Lead wires can be crimped and welded

In addition to wiring by soldering or crimping the lead wire tips with crimping terminals, the lead wires can also be welded. The standard lead wire material is CP wire +Sn/Cu plating, and this can be changed to Cu wire by request.

What is CP wire? ...... It is wire material consisting of a mild steel wire core plated with copper and tin. For more details, please visit the following webpage.

FAQ: What is the material of lead type products ?

3. Applicable to a wide range of board mounting and THD

Of course, mounting on boards is also possible!
The lead space can be selected to match the board through-hole layout.
The standard lead spaces are 5 mm and 2.5 mm. In addition to standard products, custom mounting such as 7.5 mm and 10 mm is also available.

4. High environmental resistance and insulation resistance enable use in various locations

Leaded MLCCs are also used in equipment that is used outdoors and in environments inaccessible to people where dust accumulates.
This is due to the long-term reliability of ceramic capacitors and the excellent environmental and insulation resistance provided by the epoxy resin used in the exterior coating.
Taking advantage of this feature, leaded MLCCs have also been adopted in applications with the goal of securing the insulation distance required by IEC/EN standards.

5. Extensive product lineup

Murata provides an extensive lineup of compact, large-capacity high dielectric constant-type and temperature compensation-type MLCCs that have long-term reliability, a maximum rated voltage of 1 kV, and can be used in environments with temperatures up to 150°C.

Lineup / Ceramic Capacitors (Lead)

Due to these features, we also receive inquiries from customers who are considering replacement from film capacitors and electrolytic capacitors.
Please feel free to request product samples.

Introducing useful tools for designing

Design support software "SimSurfing" provides functions for displaying various characteristics, downloading characteristic data and calculating characteristics.

SimSurfing

You can also download CAD models from "SnapEDA" by visiting the detail page of each part number.
Please kindly use it when designing circuits if you need.

Application Examples

Leaded MLCCs can be used for applications such as noise suppression, smoothing of power supply voltages, and insulation between boards.

For Automotive Powertrain/Safety Equipment

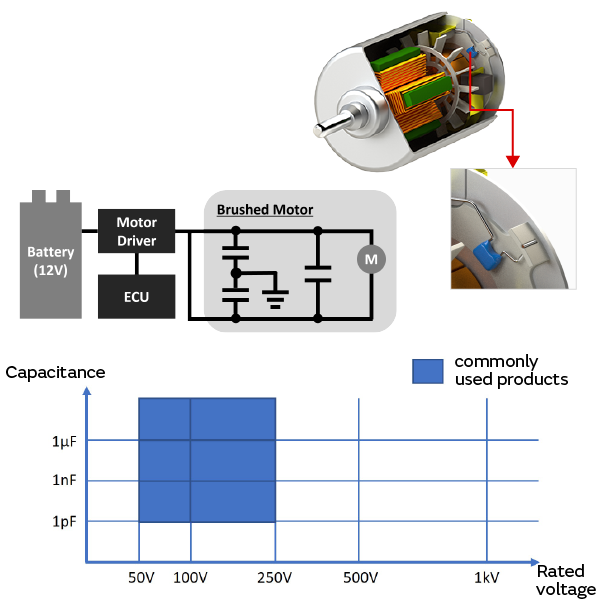

Brushed DC motors

Leaded MLCCs are used for noise suppression of brushed motors.
Generally speaking, 30–70W motors often have built-in capacitors, and leaded MLCCs that are compact and have excellent environmental durability are used.

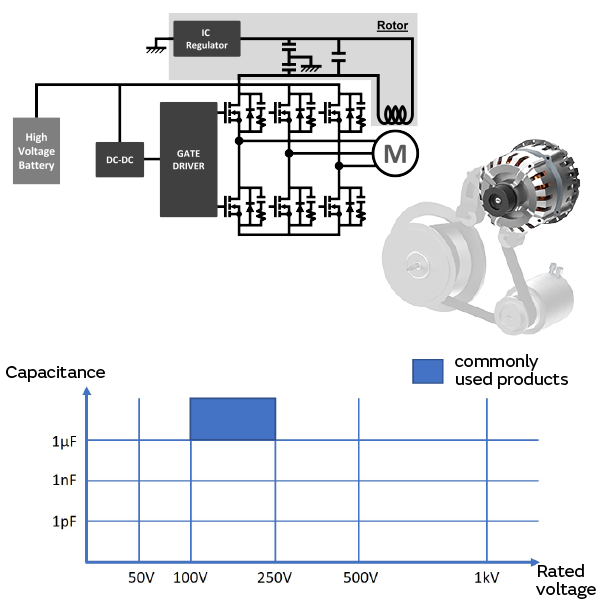

High-voltage devices for EV, HV, and MHV

Leaded MLCCs are also used in EVs, HVs, and MHVs in the peripherals of high-power motors and in applications that operate at high voltages.
For example, these include high-power brushless DC motor inverters such as BSG and ISG inverters. For examples of application in other devices, refer to the following pages.

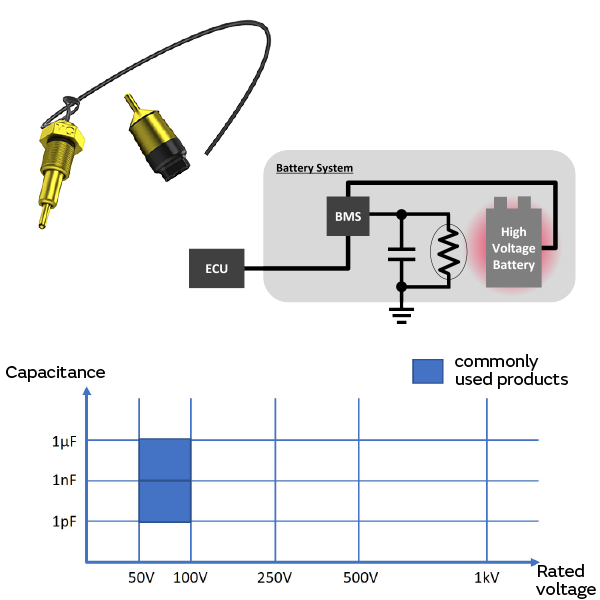

Automotive sensors

Leaded MLCCs suppress noise that impacts detection accuracy and prevent malfunctions.
They are used in applications where detection accuracy is required, such as temperature sensors for large-capacity batteries and tire speed sensors (on the antenna side).

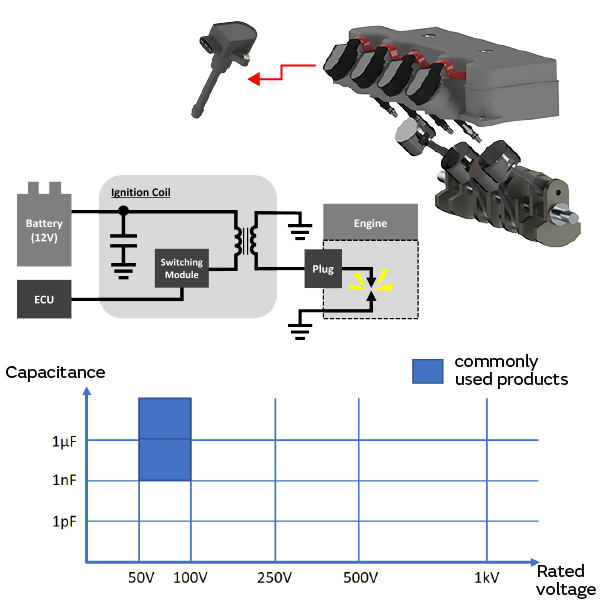

Engine Peripherals

Ignition coils, EGR valves, oil pumps, etc.
Leaded MLCCs are also used in engine room applications that require heat resistance and environmental durability.
The RHE series can be used in environments up to 150°C.

For Consumer Electronics & Industrial Equipment

FA equipment/Household appliances

It is used to remove noise from various motors.

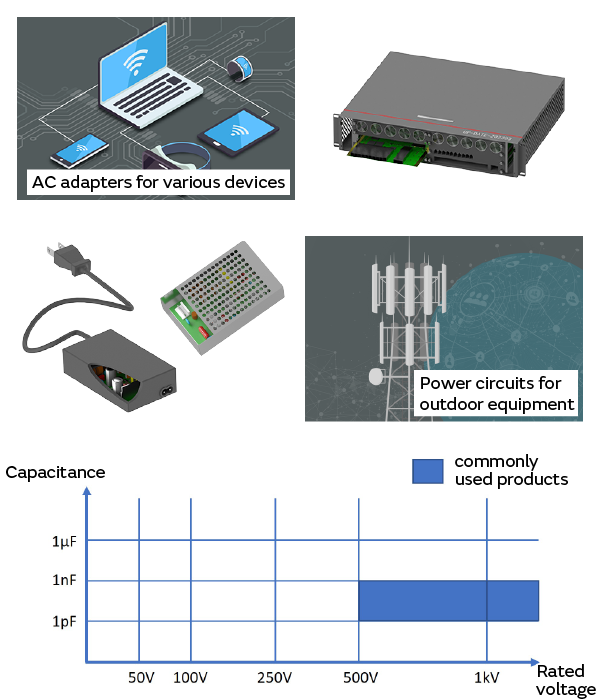

Various power supply circuits

It can be used for smoothing power circuits. It is recommended not only for home appliances but also for environments such as data centers and base stations where weather-and stain-resistance is required.

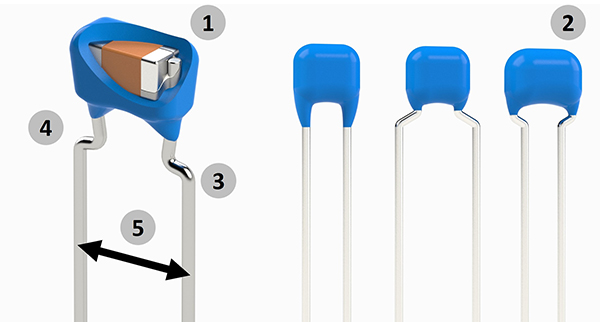

Specifications

Please check the lineup for product performance such as temperature characteristics, operating temperature, and rated voltage.

1. Chip MLCCs

An extensive lineup of high dielectric constant-type and temperature compensation-type MLCCs is available.

Lineup / Ceramic Capacitors (Lead)

2. Lead wire shapes

The standard specifications are inside crimp, outside crimp, and straight shape.

3. Lead wire materials

The standard specification is CP wire +Sn/Cu plating.
Change to Cu wire is available.

4. Exterior coat resin material

The exterior coating resin material is epoxy resin with excellent environmental resistance and insulation resistance.

5. Lead space

The standard specifications are 5.0 mm and 2.5 mm.

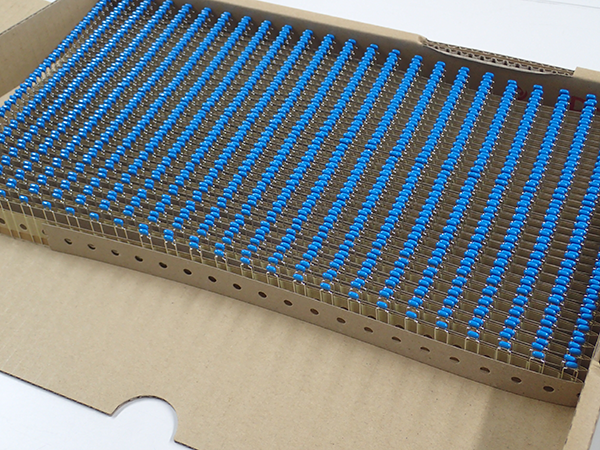

Packaging specification

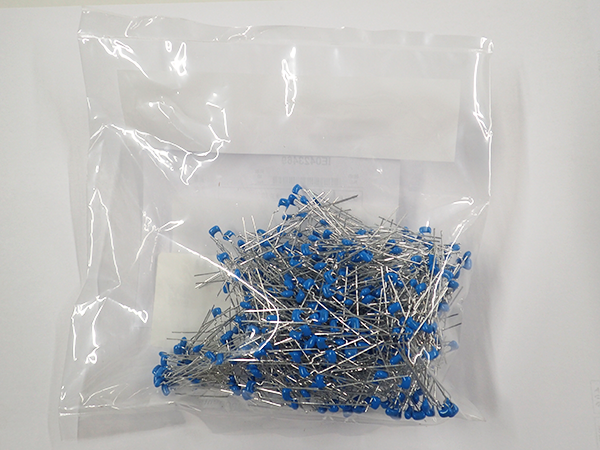

The standard packaging specifications are ammo pack taping and single unit packaging. Reel taping is also available.

Ammo pack taping

Single unit packaging

Lineup

Leaded MLCC for Consumer Electronics & Industrial Equipment RDE Series

Small size and large capacity. This product is ideal for flow soldering.

Leaded MLCC for Automotive Powertrain/Safety Equipment RCE Series

Small lead type capacitor for automotive. It is good used for under 125°C.

150°C Operation Leaded MLCC for Automotive Powertrain/Safety Equipment RHE Series

Can be used in environments around engines that exceed 125°C.

Find out more about the development here!

When you log in to My murata, we publish product information in development.
If you are interested, please visit!

*You need to register as a member of My murata.

Questionnaire

In order to provide better web content and products, we appreciate your cooperation with the questionnaires. Your opinions will be used as a reference for future web content improvement and product development.

Webpage questionnaire

Response time : around 1 minute

We appreciate your cooperation with the web content improvement questionnaire.

Product questionnaire

Response time : around 3 minutes

In order to provide better products, we appreciate your cooperation with the questionnaire.
