CeramicCapacitorGR4 Series

  • General
  • Complied with RoHS
  • REACH
Read more

Chip Multilayer Ceramic Capacitors for Ethernet LAN and primary-secondary coupling of DC-DC converters

Size (L*W) : 4.5x2.0mm - 5.7x5.0mm / X7R Char. / DC2kV
Realized large capacity and small size while maintaining high withstand voltages by the multilayer structure.

Features

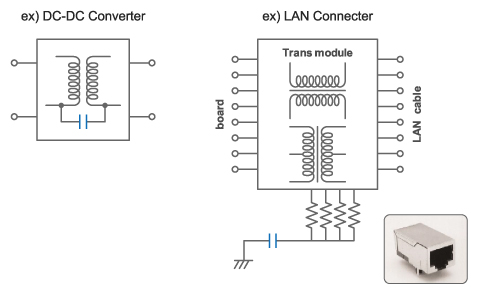

1. For information devices of Ethernet LAN (IEEE802.3.) and primary - secondary couplings of DC-DC converters.

Dedicated for information devices for Ethernet LAN (IEEE802.3.) and primary - secondary couplings of DC-DC converters.

2. Realized large capacity and small size while maintaining high withstand voltages by the multilayer structure.

Example of Structure

3. Dedicated for reflow soldering.

Specifications

Size(mm) 4.5x2.0mm - 5.7x5.0mm
Rated Voltage 2000Vdc
Capacitance 100pF - 10000pF
Main applications For Ethernet LAN,Primary-secondary coupling for DC-DC converters

Lineup

  • You can see the search result of the item you click on the capacitance chart.
