タイミングデバイス(MEMS振動子/水晶振動子/セラミック発振子)アプリケーション別 製品使用例

タイミングデバイス製品が使用されるアプリケーションです。
機能別にムラタのおすすめ製品をご確認いただけます。
下記ブロック図をご覧ください。
シリーズ名をクリックすると、シリーズの特徴とスペック詳細をご覧いただけます。

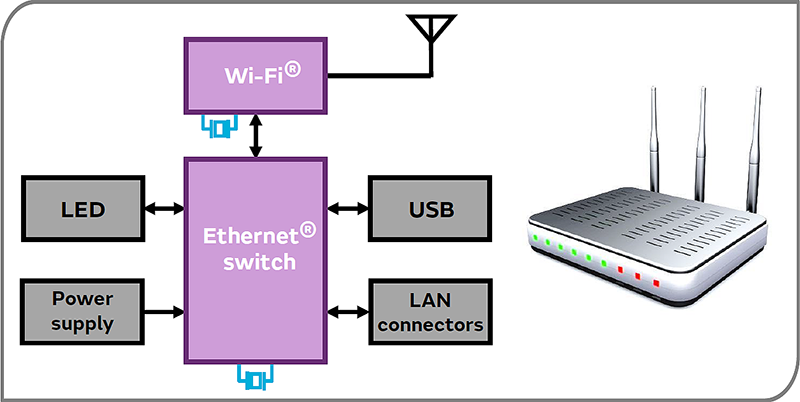

AP Router / Wi-Fi®AP ルータ

Wi-Fi AP Router
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Crystal UnitCrystal Units 2.0 × 1.6 XRCGB-F-M series 25.000 MHz Ethernet®
XRCGB-F-S series 37.400 / 38.400 /
40.000 MHz
Wi-Fi®
MEMS Resonator MEMS Resonator 0.95 × 0.60 WMRAG series 32.768 kHz Wi-Fi®

Bluetooth®Headphone / Bluetooth®ヘッドフォン

Bluetooth Headphone
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Crystal UnitCrystal Units 2.0 × 1.6 XRCGB-F-S series 24.000 / 26.000 / 32.000 /40.000 MHz Bluetooth®
MEMS Resonator MEMS Resonator 0.95 × 0.60 WMRAG series 32.768 kHz

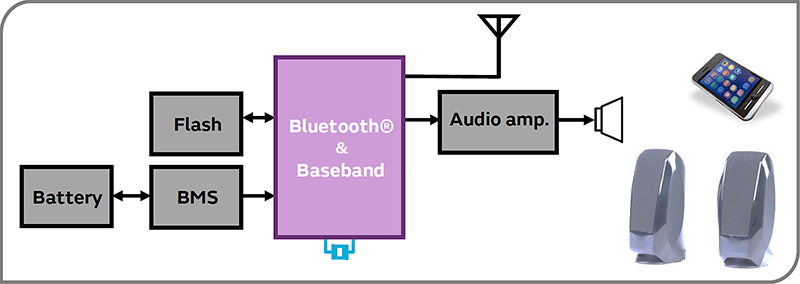

Bluetooth®Speaker / Bluetooth®スピーカ

Bluetooth Speaker
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Crystal UnitCrystal Units 2.0 × 1.6 XRCGB-F-S series 24.000 / 26.000 / 32.000 /40.000 MHz Bluetooth®
MEMS Resonator MEMS Resonator 0.95 × 0.60 WMRAG series 32.768 kHz

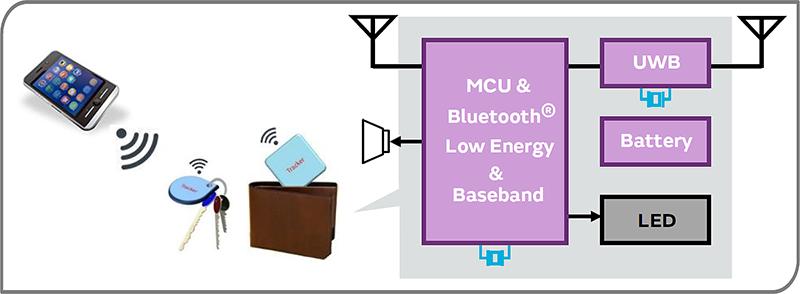

Bluetooth®Tracker / Bluetooth®トラッカー

Bluetooth Tracker
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Crystal Unit Crystal Units
2.0 × 1.6 XRCGB-F-P series 16.000 / 24.000 / 32.000 MHz Bluetooth® Low Energy
XRCGB-F-S series 38.400 MHz UWB
MEMS Resonator MEMS Resonator
0.95 × 0.60 WMRAG series 32.768 kHz Bluetooth® Low Energy
Piezoelectric SounderPiezoelectric Sounders
12.0 × 12.0 PKLCS series 2.0 / 2.4 / 4.0 kHz Beeper
9.0 × 9.0 PKMCS series 4.0 / 4.8 kHz
Battery 12.5 to 36.5 × 1.6 to 7.7 CR Standard series
CR Heat-resistant (X) series
Capacity : 30 to 2000 mAh
Operating Temperature Range :
Standard Series : -30°C to 70°C
X Series : -40°C to 85°C
Power supply

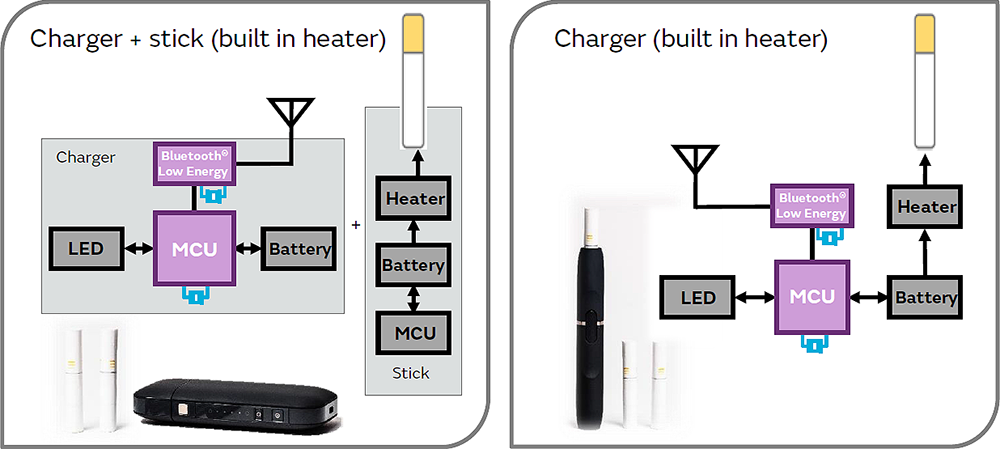

E-cigarette (heater type) / 電子タバコ (加熱タイプ)

左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Crystal Unit Crystal Units 2.0 × 1.6 XRCGB-F-L series
XRCGB-F-M series
16.000 to 48.000 MHz MCU
XRCGB-F-P series 16.000 / 32.000 MHz Bluetooth® Low Energy
MEMS Resonator MEMS Resonator 0.95 × 0.60 WMRAG series 32.768 kHz MCU, Bluetooth® Low Energy

ESL (Electronic Shelf Label) / 電子棚札

Electronic Shelf Label
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Crystal Unit Crystal Units 2.0 × 1.6 XRCGB-F-P series 16.000 / 24.000 / 32.000 MHz Bluetooth® Low Energy, Zigbee®
MEMS Resonator MEMS Resonator 0.95 × 0.60 WMRAG series 32.768 kHz
Battery 12.5 to 24.5 × 1.6 to 5 CR Standard series Capacity : 30 to 610 mAh
Operating Temperature Range :
-30°C to 70°C
Power supply

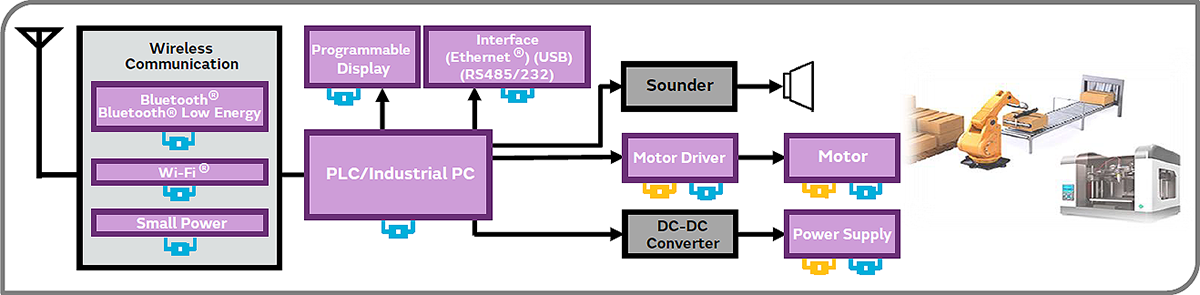

Industry Automation / 産業機器

Industry Automation
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Ceramic Resonator Ceramic Resonators
4.5 × 2.0 CSTCR-G series 4.000 to 7.999 MHz Power supply, Motor
3.2 × 1.3 CSTNE-G series
CSTNE-V series
8.000 to 20.000 MHz
Crystal Unit Crystal Units 2.0 × 1.6 XRCGB-F-M series 16.000 to 50.000 MHz Ethernet®, USB, PLC, Display, Motor driver, Motor, Power Supply
XRCGB-F-P series 16.000 / 24.000 / 32.000 MHz Bluetooth® Low Energy
XRCGB-F-S series 24.000 / 26.000 / 32.000 MHz Bluetooth®, LPWA
XRCGB-F-S series 40.000 MHz Wi-Fi®
MEMS Resonator MEMS Resonator
0.95 × 0.60 WMRAG series 32.768 kHz Bluetooth® Low Energy, LPWA, PLC
Piezoelectric Sounder Piezoelectric Sounders
12.0 × 12.0 PKLCS series 2.0 / 2.4 / 4.0 kHz Beeper
Φ12.6 × 9.4 PKHPS series 4.0 kHz

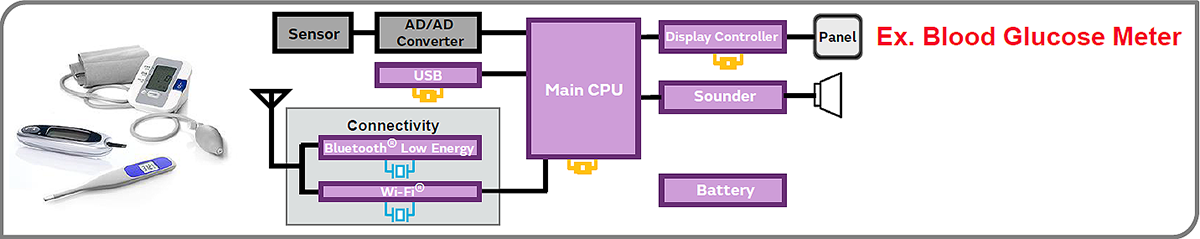

Healthcare / ヘルスケア

Healthcare applications
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Ceramic Resonator Ceramic Resonators
4.5 × 2.0 CSTCR-G series 4.000 to 7.999 MHz Main CPU, USB, Display
Controller
3.2 × 1.3 CSTNE-G series
CSTNE-V series
8.000 to 20.000 MHz
Crystal Unit Crystal Units 2.0 × 1.6 XRCGB-F-P series 16.000 / 24.000 / 32.000 MHz Bluetooth® Low Energy
XRCGB-F-S series 37.400 / 38.400 / 40.000 MHz Wi-Fi®, Bluetooth® Low Energy
MEMS Resonator MEMS Resonator 0.95 × 0.60 WMRAG series 32.768 kHz Bluetooth® Low Energy
Piezoelectric Sounder Piezoelectric Sounders
12.0 × 12.0 PKLCS series 2.0 / 2.4 / 4.0 kHz Beeper
9.0 × 9.0 PKMCS series 4.0 / 4.8 kHz
Battery (SR/LR)
6.8 to 11.6 × 2.05 to 5.4
(CR)
12.5 to 24.5 × 1.6 to 5
SR Standard series
SR/LR High Drain series
CR Standard series
Capacity :
(SR/LR) 20 to 150 mAh
(CR) 30 to 610 mAh
Operating Temperature Range :
(SR/LR) -10°C to 60°C
Power supply

HEMS

HEMS
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Ceramic Resonator Ceramic Resonators
4.5 × 2.0 CSTCR-G series 4.000 to 7.999 MHz Main CPU
3.2 × 1.3 CSTNE-G series
CSTNE-V series
8.000 to 20.000 MHz
Crystal Unit Crystal Units 2.0 × 1.6
XRCGB-F-M series 25.000 MHz Ethernet®
XRCGB-F-P series 16.000 / 24.000 /
32.000 MHz
Bluetooth® Low Energy, ZigBee®
XRCGB-F-S series 37.400 / 38.400 /
40.000 MHz
Wi-Fi®, LPWA
MEMS Resonator MEMS Resonator
0.95 × 0.60 WMRAG series 32.768 kHz Bluetooth® Low Energy, ZigBee®, LPWA

M2M

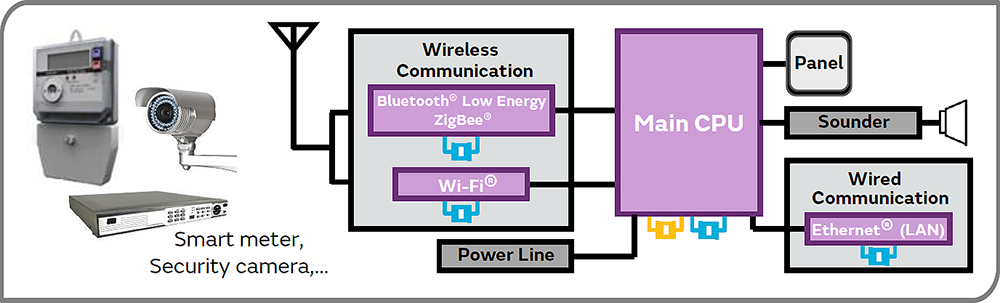

M2M
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Ceramic Resonator Ceramic Resonators
4.5 × 2.0 CSTCR-G series 4.000 to 7.999 MHz Main CPU
3.2 × 1.3 CSTNE-G series
CSTNE-V series
8.000 to 20.000 MHz
Crystal Unit Crystal Units
2.0 × 1.6 XRCGB-F-M series 25.000 MHz Ethernet®
XRCGB-F-P series 16.000 / 24.000 /
32.000 MHz
Bluetooth® Low Energy, ZigBee®
XRCGB-F-S series 37.400 / 38.400 /
40.000 MHz
Wi-Fi®
MEMS Resonator MEMS Resonator
0.95 × 0.60 WMRAG series 32.768 kHz Bluetooth® Low Energy, ZigBee®, LPWA
Piezoelectric Sounder Piezoelectric Sounders
12.0 × 12.0 PKLCS series 2.0 / 2.4 / 4.0 kHz Beeper
9.0 × 9.0 PKMCS series 4.0 / 4.8 kHz
Φ12.6 × 9.4 PKHPS series 4.0 kHz

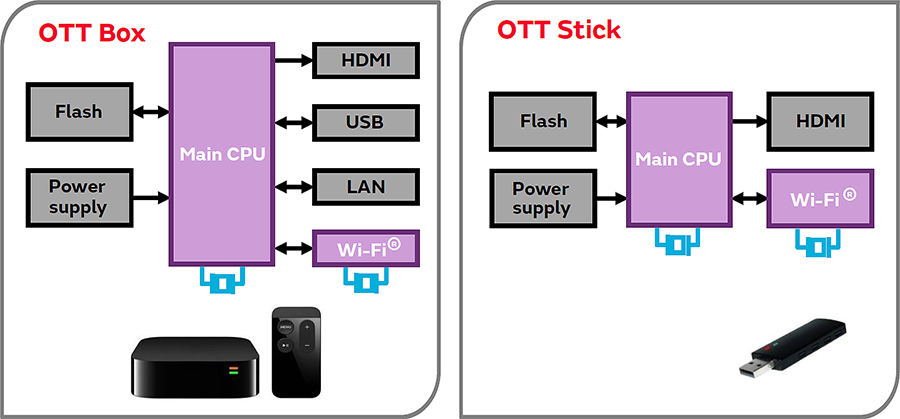

OTT (Over The Top)

OTT
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Crystal Unit Crystal Units
2.0 × 1.6 XRCGB-F-P series 24.000 MHz Main CPU
XRCGB-F-S series 37.400 / 38.400 /
40.000 MHz
Wi-Fi®
MEMS Resonator MEMS Resonator
0.95 × 0.60 WMRAG series 32.768 kHz Main CPU

Payment Terminal / 決済端末

Payment Terminal
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Crystal Unit Crystal Units
2.0 × 1.6 XRCGB-F-P series 24.000 MHz Main CPU
XRCGB-F-M series
25.000 MHz Ethernet®
27.120 MHz NFC
XRCGB-F-S series 37.400 / 38.400 /
40.000 MHz
Wi-Fi®
MEMS Resonator MEMS Resonator 0.95 × 0.60 WMRAG series 32.768 kHz Main CPU
Piezoelectric Sounder Piezoelectric Sounders
12.0 × 12.0 PKLCS series 2.0 / 2.4 / 4.0 kHz Beeper
9.0 × 9.0 PKMCS series 4.0 / 4.8 kHz
Φ12.6 × 9.4 PKHPS series 4.0 kHz

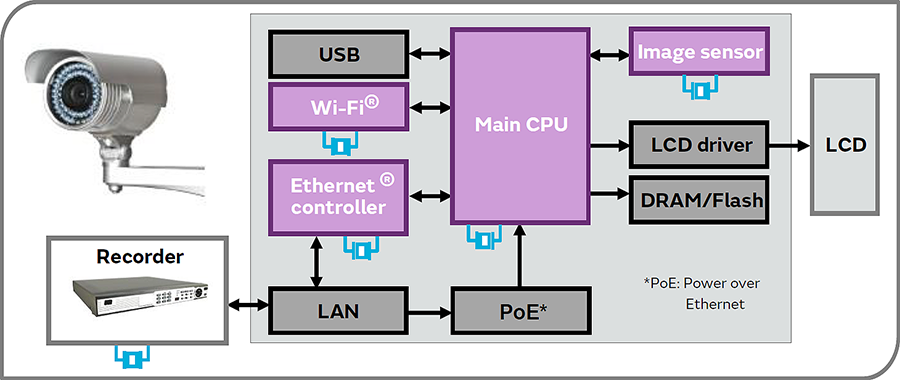

Security Camera / セキュリティカメラ

Security Camera
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Crystal UnitCrystal Units
2.0 × 1.6 XRCGB-F-P series 24.000 / 27.000 MHz Main CPU,
Image Sensor
XRCGB-F-M series 25.000 MHz Ethernet®
XRCGB-F-S series 37.400 / 38.400 /
40.000 MHz
Wi-Fi®
MEMS Resonator MEMS Resonator
0.95 × 0.60 WMRAG series 32.768 kHz Main CPU

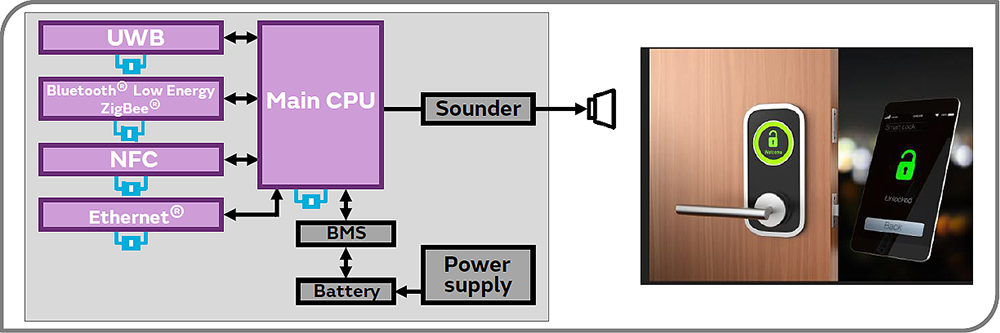

Smart Door Lock / スマートロック

左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Crystal Unit Crystal Units 2.0 × 1.6 XRCGB-F-P series 16.000 / 24.000 /
32.000 MHz
Main CPU,
Bluetooth® Low Energy, ZigBee®
XRCGB-F-M series 25.000 MHz Ethernet®
XRCGB-F-S series 38.400 MHz UWB
MEMS Timing Device
0.95 × 0.60 WMRAG series 32.768 kHz Bluetooth® Low Energy, ZigBee®
Piezoelectric Sounder Piezoelectric Sounders
12.0 × 12.0 PKLCS series 2.0 / 2.4 / 4.0 kHz Beeper
9.0 × 9.0 PKMCS series 4.0 / 4.8 kHz

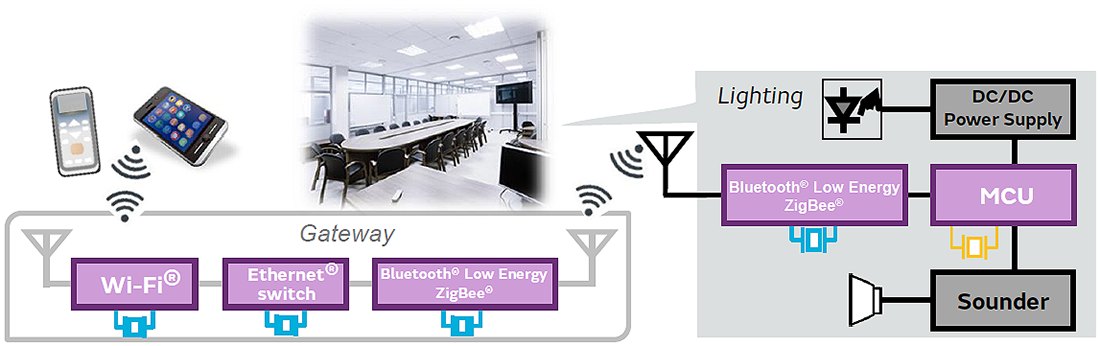

Smart Lighting / スマートライティング

Smart Lighting
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Ceramic Resonator Ceramic Resonators
4.5 × 2.0 CSTCR-G series 4.000 MHz Main CPU
3.2 × 1.3 CSTNE-G series
CSTNE-V series
8.000 / 12.000 / 16.000 /
20.000 MHz
Crystal Unit Crystal Units 2.0 × 1.6 XRCGB-F-M series 25.000 MHz Ethernet®
XRCGB-F-P series 16.000 / 24.000 /
32.000 MHz
Bluetooth® Low Energy, ZigBee®
XRCGB-F-S series 37.400 / 38.400 /
40.000 MHz
Wi-Fi®
MEMS Resonator MEMS Resonator
0.95 × 0.60 WMRAG series 32.768 kHz Bluetooth®Low Energy, ZigBee®
Piezoelectric Sounder Piezoelectric Sounders
12.0 × 12.0 PKLCS series 2.0 / 2.4 / 4.0 kHz Beeper

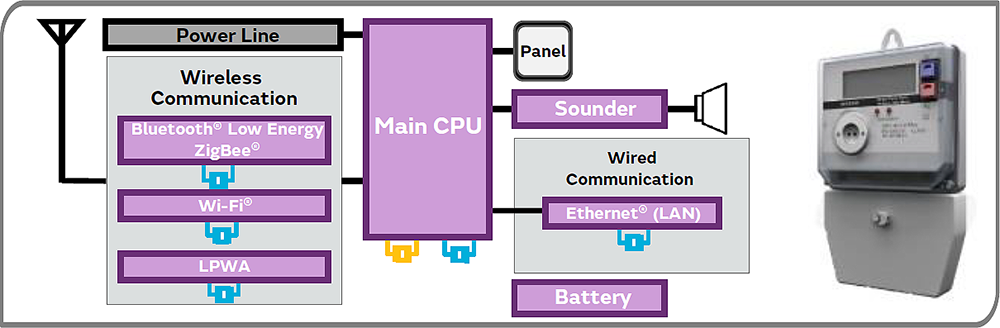

Smart Meter / スマートメータ

Smart Meter
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Ceramic Resonator Ceramic Resonators
4.5 × 2.0 CSTCR-G series 4.000 to 7.999 MHz Main CPU
3.2 × 1.3 CSTNE-G series
CSTNE-V series
8.000 to 20.000 MHz
Crystal Unit Crystal Units 2.0 × 1.6 XRCGB-F-M series 25.000 MHz Ethernet®
XRCGB-F-P series 16.000 / 24.000 / 32.000 MHz Bluetooth® Low Energy, ZigBee®
XRCGB-F-S series 37.400 / 38.400 / 40.000 MHz Wi-Fi®, LPWA
MEMS Resonator MEMS Resonator
0.95 × 0.60 WMRAG series 32.768 kHz Bluetooth® Low Energy, ZigBee®, LPWA, Main CPU
Piezoelectric Sounder Piezoelectric Sounders
12.0 × 12.0 PKLCS series 2.0 / 2.4 / 4.0 kHz Beeper
9.0 × 9.0 PKMCS series 4.0 / 4.8 kHz
Φ12.6 × 9.4 PKHPS series 4.0 kHz
Battery 20 to 36.5 × 3.2 to 7.7 CR Heat-resistant (X) series Capacity : 220 to 2000 mAh
Operating Temperature Range :
-40°C to 85°C
Backup power supply

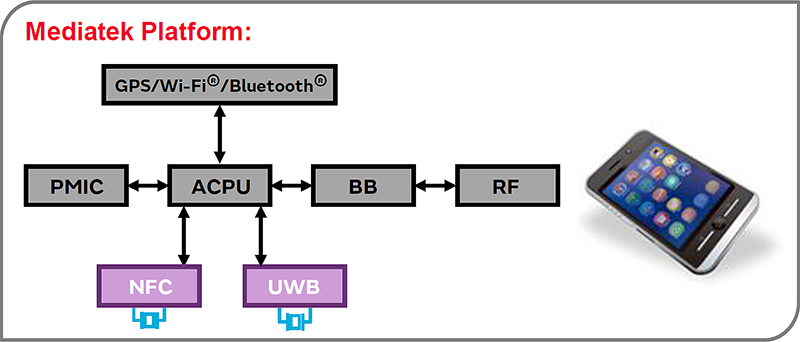

Smart Phone / スマートフォン

Smart Phone
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Crystal Unit Crystal Units
2.0 × 1.6 XRCGB-F-M series 27.120 MHz NFC
XRCGB-F-S series 37.400 / 38.400 /
40.000 MHz
Wi-Fi®
38.400 MHz Wi-Gig, UWB
MEMS Resonator MEMS Resonator 0.95 × 0.60 WMRAG series 32.768 kHz PMIC
Smart Phone
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Crystal Unit Crystal Units
2.0 × 1.6 XRCGB-F-M series 27.120 MHz NFC
XRCGB-F-S series 38.400 MHz UWB
MEMS Resonator MEMS Resonator
0.95 × 0.60 WMRAG series 32.768 kHz PMIC

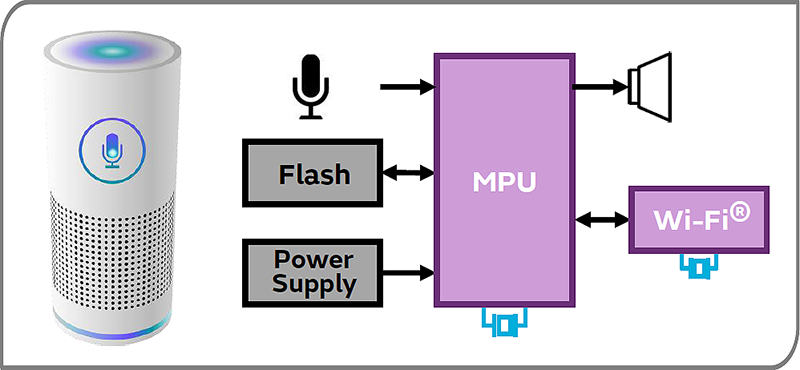

Smart Speaker / スマートスピーカ

Smart Speaker
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Crystal Unit Crystal Units
2.0 × 1.6 XRCGB-F-M series 16.000 to 50.000 MHz MPU
XRCGB-F-S series 37.400 / 38.400 /
40.000 MHz
Wi-Fi®
MEMS Resonator MEMS Resonator
0.95 × 0.60 WMRAG series 32.768 kHz MPU

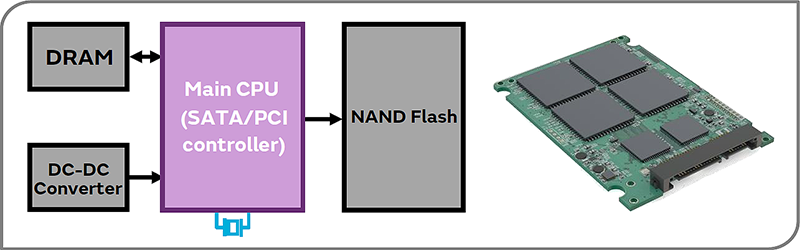

SSD

SSD
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Crystal Unit Crystal Units 2.0 × 1.6 XRCGB-F-L series
XRCGB-F-M series
25.000 to 50.000 MHz Main CPU

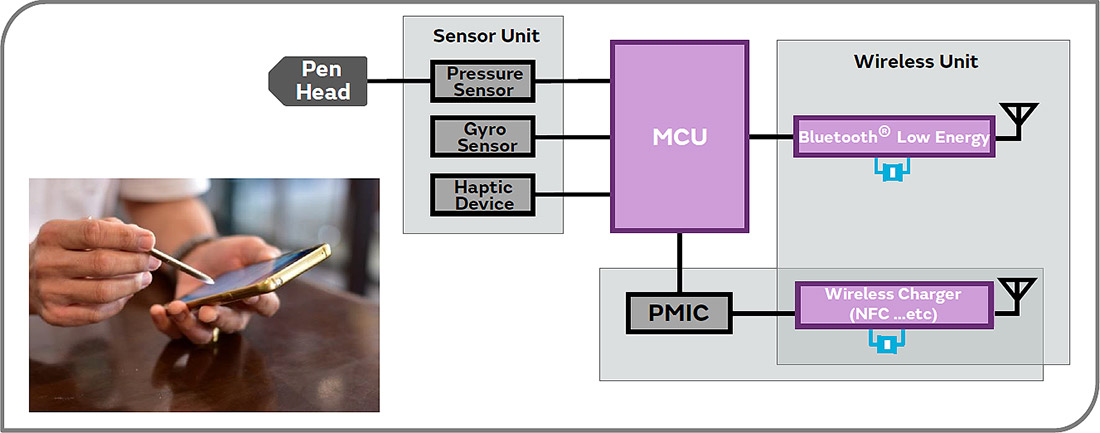

Stylus Pen

Stylus Pen
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Crystal Unit Crystal Units
2.0 × 1.6 XRCGB-F-M series 27.12 MHz NFC (Wireless Charger)
XRCGB-F-P series 32 MHz Bluetooth® Low Energy
MEMS Resonator MEMS Resonator
0.95 × 0.60 WMRAG series 32.768 kHz MCU, Bluetooth® Low Energy
Battery Φ4 ×12 CT04120 Capacity : 3 mAh Operating Temperature Range : -20°C to 70°C

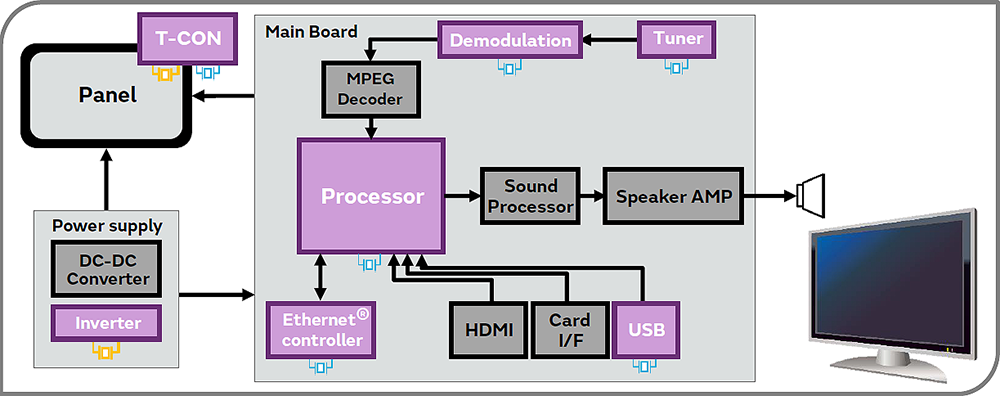

TV / テレビ

Digital TV
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Ceramic Resonator Ceramic Resonators
4.5 × 2.0 CSTCR-G series 4.000 to 7.999 MHz Inverter,
T-CON
3.2 × 1.3 CSTNE-G series
CSTNE-V series
8.000 to 20.000 MHz
Crystal Unit Crystal Units
2.0 × 1.6 XRCGB-F-P series 16.000/ 24.000 /
27.000 MHz
Processor, Tuner, etc.
XRCGB-F-M series 25.000 MHz Ethernet®
MEMS Resonator MEMS Resonator 0.95 × 0.60 WMRAG series 32.768 kHz Processor

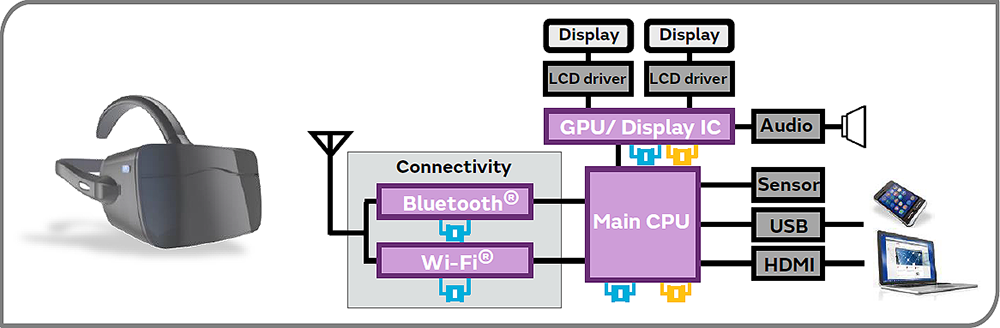

VR AR

VR, AR
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Ceramic Resonator Ceramic Resonators
4.5 × 2.0 CSTCR-G series 4.000 to 7.999 MHz Main CPU, Display IC
3.2 × 1.3 CSTNE-G series
CSTNE-V series
8.000 to 20.000 MHz
Crystal Unit Crystal Units 2.0 × 1.6 XRCGB-F-P series 16.000 to 32.000 MHz Main CPU, Display IC
XRCGB-F-S series 24.000 / 26.000 / 32.000 / 37.400 / 38.400 / 40.000 MHz Wi-Fi®, Bluetooth®
MEMS Resonator MEMS Resonator
0.95 × 0.60 WMRAG series 32.768 kHz Main CPU
Piezoelectric Sounder Piezoelectric Sounders
12.0 × 12.0 PKLCS series 2.0 / 2.4 / 4.0 kHz Beeper
9.0 × 9.0 PKMCS series 4.0 / 4.8 kHz

Walkie-Talkie / トランシーバ

Walkie-Talkie
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
BPF Crystal Filters
7.0 × 5.0 XDCAF series
XDCAG series
XDCAH series
20.000 to 150.000 MHz IF filter

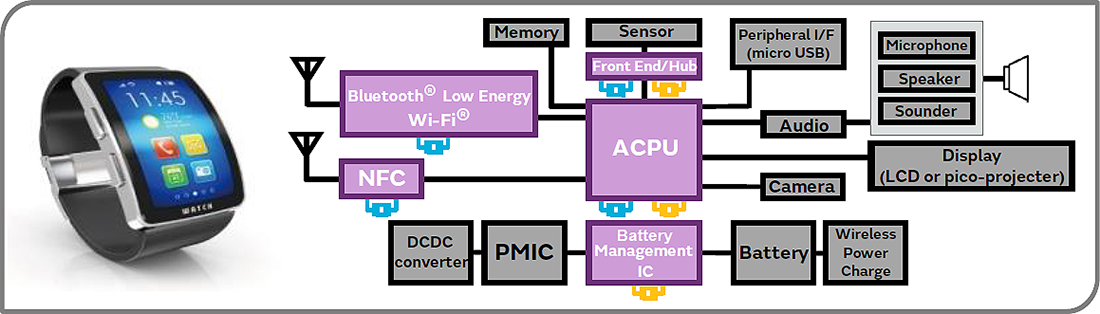

Wearable Device / ウェアラブルデバイス

Wearable device
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Ceramic Resonator Ceramic Resonators
4.5 × 2.0 CSTCR-G series 4.000 to 7.999 MHz ACPU, Front End/Hub, Battery Management
3.2 × 1.3 CSTNE-G series
CSTNE-V series
8.000 to 20.000 MHz
Crystal Unit Crystal Units
2.0 × 1.6 XRCGB-F-M series 27.120 MHz NFC
XRCGB-F-P series 16.000 / 24.000 / 32.000 MHz Bluetooth® Low Energy, ACPU
XRCGB-F-S series 24.000 / 26.000 / 32.000 MHz Bluetooth®
XRCGB-F-S series 37.400 / 38.400 / 40.000 MHz Wi-Fi®
MEMS Resonator MEMS Resonator 0.95 × 0.60 WMRAG series 32.768 kHz Bluetooth® Low Energy, Battery Management
Piezoelectric Sounder Piezoelectric Sounders
9.0 × 9.0 PKMCS series 4.0 / 4.8 kHz Beeper

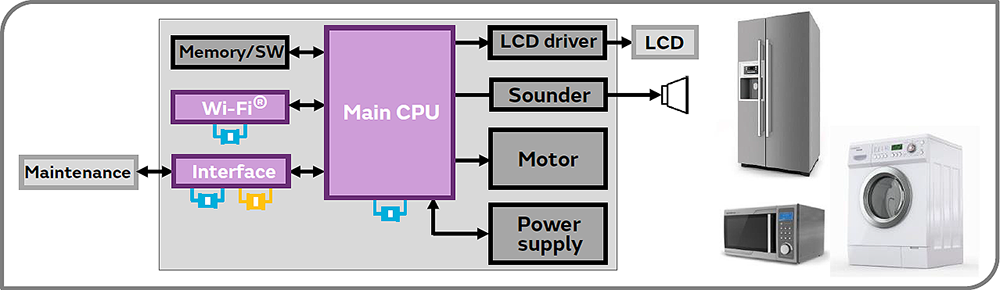

White Goods / 白物家電

White Goods
左右にスワイプ可能です 横持ちでご覧ください
Device Size(mm) Series / Spec. Function
Ceramic Resonator Ceramic Resonators
4.5 × 2.0 CSTCR-G series 4.000 MHz Interface / CAN-Bus
3.2 × 1.3 CSTNE-G series 8.000 / 12.000 MHz
CSTNE-V series 16.000 / 20.000 MHz
Crystal Unit Crystal Units 2.0 × 1.6 XRCGB-F-P series 24.000 MHz Main CPU
XRCGB-F-M series 25.000 MHz Interface / Ethernet®
XRCGB-F-S series 37.400 / 38.400 /
40.000 MHz
Wi-Fi®
Piezoelectric Sounder Piezoelectric Sounders
12.0 × 12.0 PKLCS series 2.0 / 2.4 / 4.0 kHz Beeper
9.0 × 9.0 PKMCS series 4.0 / 4.8 kHz
Φ12.6 × 9.4 PKHPS series 4.0 kHz
