LC Trap Filters

We take a look here at our 01005 inch size LC trap filter.
This is a product that integrates an LC filter circuit, comprised of a combination of L and C components, into a single chip with a mounting area of 01005 inches. It is ideal for noise suppression in the Wi-Fi band for wearable devices and RF modules.

Noise suppression for wireless headphones
Sound skipping countermeasures and size reduction
Solving your design problems!

LC trap filter

Appearance & Shape
Specifications
Product Data
Document download
Related Links
Inquiries

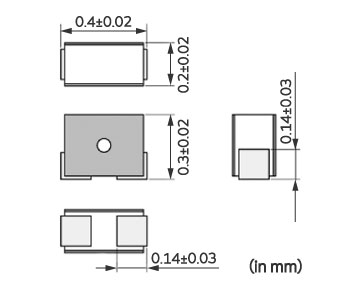

Appearance & Shape

LQZ02HQ Series

Specifications

LQZ02HQ Series

Specifications Sheet : Download PDF

Part number	Impedance (Ω Typ.)			Insertion Loss Characteristic (dB Typ.)			DC Resistance Max. (Ω)	Rated Current (mA)	Self Resonant Frequency (GHz Typ.)
Part number	at 2.40GHz	at 2.44GHz	at 2.50GHz	at 2.40GHz	at 2.44GHz	at 2.50GHz	DC Resistance Max. (Ω)	Rated Current (mA)	Self Resonant Frequency (GHz Typ.)
LQZ02HQ242A02	460	600	345	15.0	15.7	13.0	0.55	200	2.44

Operating Temperature. −55°C to +125°C

Product Data

LQZ02HQ Series

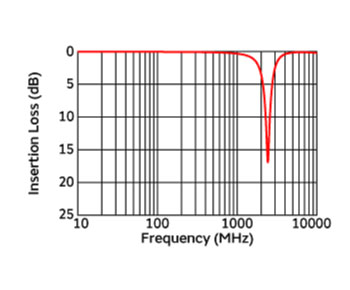

Insertion Loss Characteristics

Document download

Only the “my Murata” Inductor Site (registration required)

* These are listed on the “my Murata” website for members. You need to create a my Murata account, log into it and then apply to use the “Inductor Site” to view the data.
