UWB ModulesType 2BP

Murata Type2BP is the ultra small UWB module which includes NXP's SR150 UWB chipset, clock, filters and peripheral components.
Ideally suited for general IoT devices including battery operated devices.

Features
Product Information
Block Diagram
Documents
Evaluation Kit
Purchase

Features

Small size UWB module with comformal shielding

Chipset : NXP Trimension SR150
UWB Channel 5,9 support
Interface : SPI
3 Antenna support (3D AoA or 2D AoA support)
Small size : Resin molded + Comformal shielding structure
Power calibration & Xtal calibration support

Product Information

Item	Explanation
Part Number	LBUA0VG2BP
Product Type	Module
Product Status	In Production
Grade	Consumer
Frequency	UWB Ch 5 & 9
Frequency MHz (min) UWB	6250
Frequency MHz (max) UWB	8250
Chipset	NXP SR150
CPU Core	ARM Cortex-M33
Flash / RAM	- / 128kB CODE RAM, 128kB Data RAM
Antenna	External
RF Conn/ Antenna	Not Included
Sleep Clock	Internal X'tal (32.768kHz)
System Clock	Internal X'tal (38.4MHz)
Operating Temperature Range	-30 to 85
Operating Temperature °C (min)	-30
Operating Temperature °C (max)	85
Mounting Type	SMT
Package	LGA
Dimension	6.6 × 5.8 × 1.2(max)mm
Supply Voltage (Vdc)	1.8V
Supply Voltage min	1.71V
Supply Voltage max	1.98V
Technology	UWB
Host Interface	SPI
FCC/IC/MIC(Japan) Certified	Yes
ETSI report	Yes
FiRa Certified	Yes
ISO9001	Yes

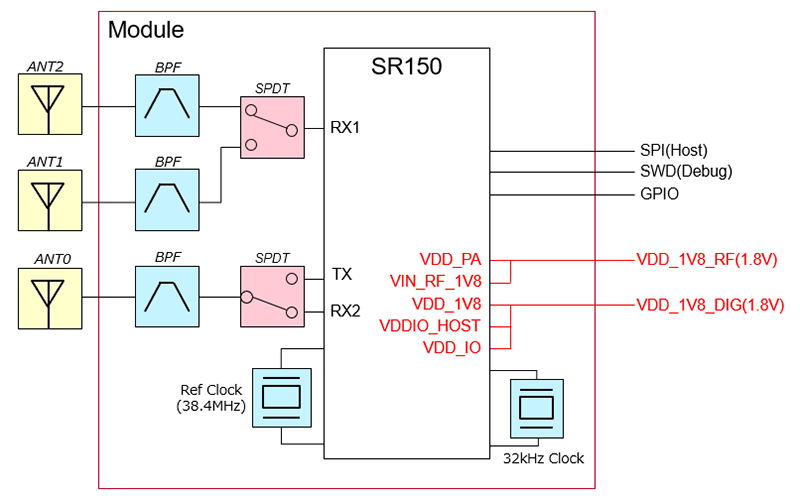

Block Diagram

Documents

Products Data Sheet

Last Update: October 23, 2023

Data Sheet

EVK Product Brief

Last Update: November 2, 2023

Product Brief

Related material of environment

RoHS適合性証明書（Wi-Fi®/Bluetooth®/LoRa/UWB Module）

Evaluation Kit

Item	Explanation
Product P/N	LBUA0VG2BP-EVK-P Web代理店 \| 在庫検索

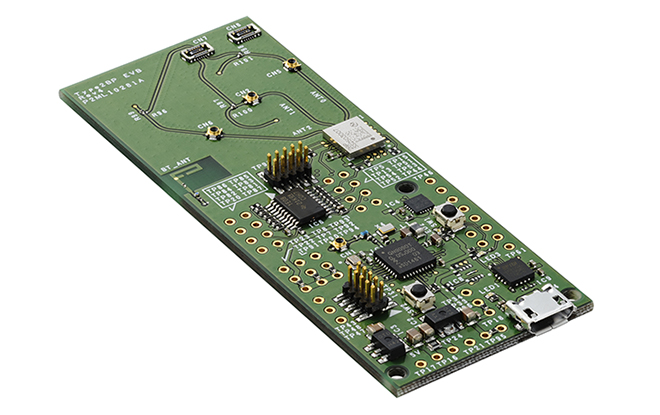

Content	Murata UWB module Type2BP evaluation board. Type2BP and NXP QN9090(BLE chip), USB-UART conversion IC are on this EVB. Power supplied via USB cable, and from COM port of PC, Type-2BP can be controlled through QN9090. This development kit is approved by Apple® for the purpose of evaluating UWB-enabled accessories that leverage Apple's Nearby Interaction framework in order to interact with Apple products that include the U1 chip.
Dimension	81 × 32 × 6.36 (mm)

Please contact our sales or send your inquiry for the evaluation kit.
FiRa Certified™ and the FiRa Certified certification logo are certification marks and trademarks of FiRa Consortium, Inc. Unauthorized use is strictly prohibited.

NXP Based UWB Modules / Type2BP Document Site, Forum (my Murata*)にて、データシートやデザインガイドなどの詳細資料をご案内しております。またSDKもダウンロード可能となっております。ぜひご活用ください。
初めてのご利用は、Access Guide（登録説明資料）をご参照ください。

my Murata*へアクセスする

※アクセスには、ご購入いただいた評価キットに同梱の登録番号が必要です。

*my Murata: 登録された方だけが閲覧できる無料ログインサイトです。ご利用にあたっては、利用規約にご同意の上アカウント作成が必要です。

Purchase

Order Number	LBUA0VG2BP
Sample Part Number	LBUA0VG2BP-SMP
Production Part Number	LBUA0VG2BP-741
Development Kit Part Number	LBUA0VG2BP-EVK-P
Purchase	Please check the following links for 2BP module. Web代理店 \| 在庫検索国内取り扱い商社（アヴネット株式会社） No annual volume requirement for purchasing from distributors. Please engage with Murata sales team and wireless team to determine if this module is suitable for your applications. Murata reserves the right to support or not to support requests based on the corporate policy that includes export control and application restrictions, annual volume requirement (100kpcs) or other requirements. To expedite the qualification of your application for these modules, please submit the information through the Contact Us button on the top.
MOQ	2,000
