マイクロ電池アプリケーション別製品使用例

マイクロ電池製品が使用されるアプリケーションです。機能別にムラタのおすすめ製品をご確認いただけます。
下記ブロック図をご覧ください。
シリーズ名をクリックすると、シリーズの特徴とスペック詳細をご覧いただけます。

Contents一覧

※クリックで各項目に移動します。

Automotive

Wireless Seatbelt Reminder

Medical

Smart Drug Delivery Device
Continuous Glucose Monitoring
Capsule Endoscopy

Consumer

Smart Thermometer

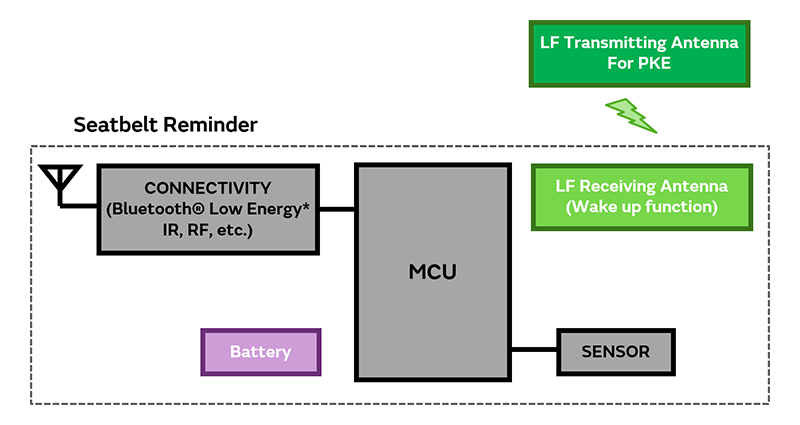

Wireless Seatbelt Reminder

Device	Size	Series / Spec.		Function
Battery	20 to 36.5 × 3.2 to 7.7 mm	CR Extended Temperature (X) series	Capacity : 220 to 2000 mAh	Operating Temperature Range : -40°C to 85°C
LF Receiving Antenna	12.0 × 12.0 × 3.4 mm (Typ.)	SA-X20 series	Inductance x,y 4.7 to 8.0 mH z 7.2 to 13.0 mH	Operating Temperature Range : -40°C to 85°C
LF Transmitting Antenna	Transmitting Antenna is customized products. Please contact us for more information.

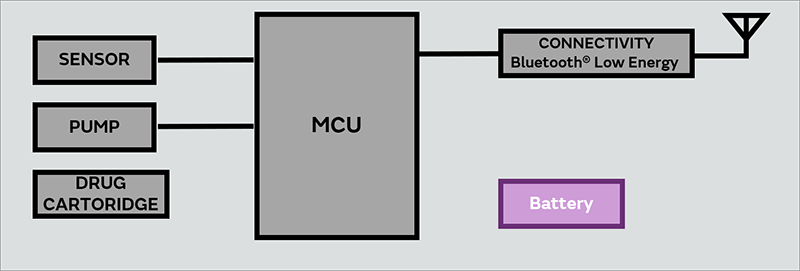

Smart Drug Delivery Device

Device	Size	Series / Spec.		Function
Battery	SR : 9.5 to 11.6 × 2.7 to 5.4 mm	SR/LR High Drain series	Capacity : SR : 45 to 150 mAh	Operating Temperature Range : -10°C to 60°C

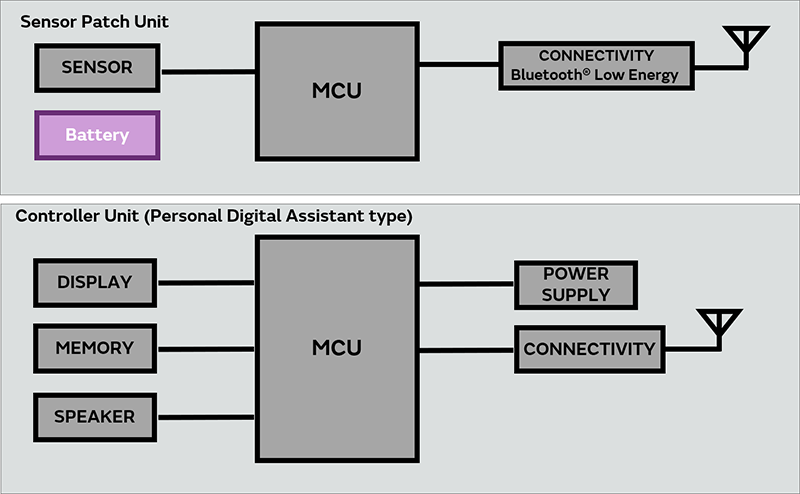

Continuous Glucose Monitoring

Device	Size	Series / Spec.		Function
Battery	SR : 6.8 to 11.6 × 2.05 to 5.4 mm CR : 12.5 to 24.5 × 1.6 to 5 mm	SR Standard series CR Standard series	Capacity : SR : 20 to 110 mAh CR : 30 to 610 mAh	Operating Temperature Range : SR/LR : -10°C to 60°C CR : -30°C to 70°C

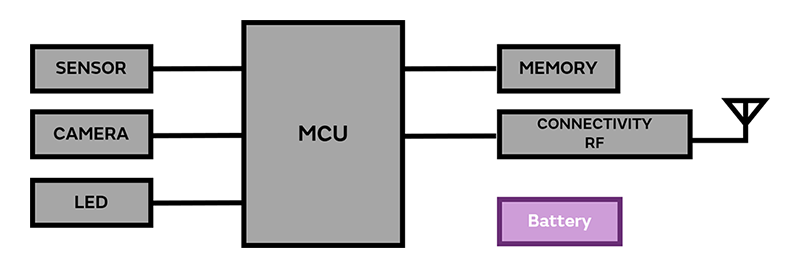

Capsule Endoscopy

Device	Size	Series / Spec.		Function
Battery	SR : 6.8 to 11.6 × 2.05 to 5.4 mm	(Long life) SR Standard series (High drain) SSR/LR High Drain series	Capacity : 20 to 150 mAh	Operating Temperature Range : -10°C to 60°C

Smart Thermometer

Device	Size	Series / Spec.		Function
Battery	Φ4 × 12 mm	CT04120	Capacity : 3 mAh	Operating Temperature Range : -20°C to 70°C
