Ceramic CapacitorCaution

Swipe left or right to change screens View in landscape mode
Derating 1

Derating 1
The test voltage of these products is less than 150% of the rated voltage in the Durability / Operational Life Test.
*Usually MLCC used with derating. So even this kind of products, special derating have not set specially.

Please refer to below links for details

Derating 2

Derating 2
When the product temperature exceeds 105°C, please use this product within the voltage and temperature derated conditions in the figure below.

Derating 3

Derating 3
Please apply the derating curve according to the operating temperature.
Please refer to detailed specifications sheet for details.

Derating 4

Derating 4
When the product temperature exceeds 125°C,
please use this product within the voltage and temperature derated conditions in the figure below.

voltage and temperature derated conditions in the figure below
Derating 5

Derating 5

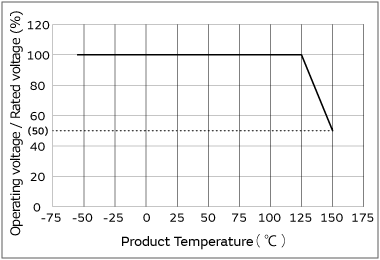

When the product temperature exceeds 150℃, please use this product
within the voltage and temperature derated conditions in the figure below.

Derating 6

Derating 6

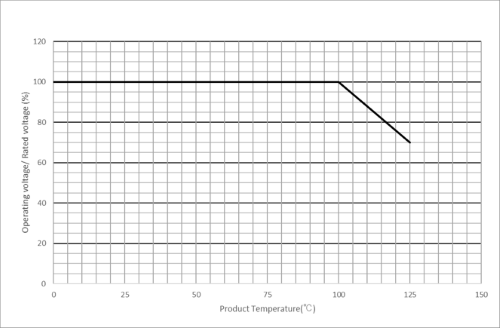

When the product temperature exceeds 105℃, please use this product within the voltage and temperature derated conditions in the figure below.

voltage and temperature derated conditions in the figure below
Only for Mobile devices

Mobile application specific MLCC
These MLCC products are designed for use in devices with a typical lifetime of less than 5 years.
(Examples: Cellular phone, Smartphone, Tablet PC, Digital camera, Watch, Electronics dictionary, Small-scale server, IPC-9592B class1 equipment, etc. )

These MLCC products are designed so that the useful lifetime can be extended longer than 5 years under the following conditions: 「80% of the rated voltage or less, Maximum operating temperature -20 degree C or less」

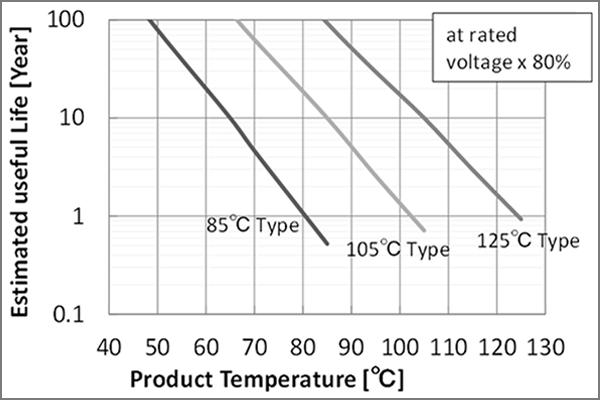

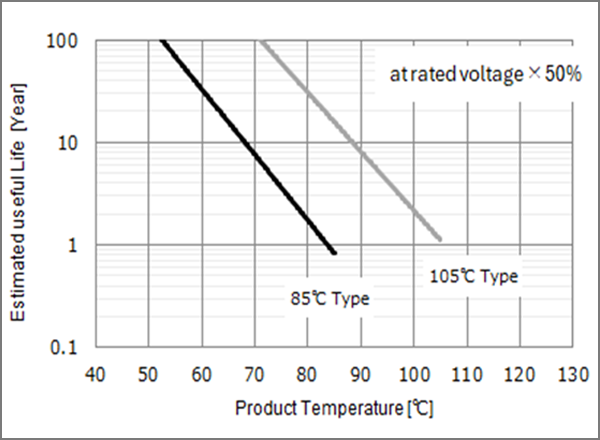

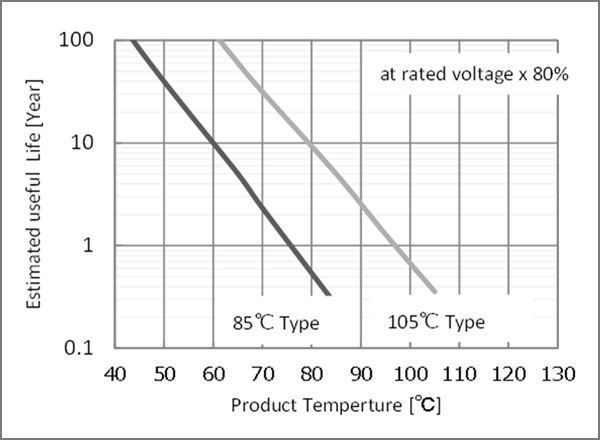

Extended useful lifetime, under specific operating conditions, can be estimated from the following chart.

※The useful lifetime is the time when cumulative failure rate becomes 1%.
※Please note that the useful lifetime data is for reference only and not guaranteed.
※If you have any questions, please feel free to contact us.

Lifetime of MLCC can also be estimated from voltage acceleration and temperature acceleration factors.
Please refer to following URL about these lifetime estimation.

Useful lifetime for mobile application specific MLCC Useful lifetime for mobile application specific MLCC
