UWB ModulesType 2AB

Murata Type2AB module is designed as Ultra-small, high quality and lower power consumption UWB module.
Ideally suited for small, battery operated IoT devices and applications.

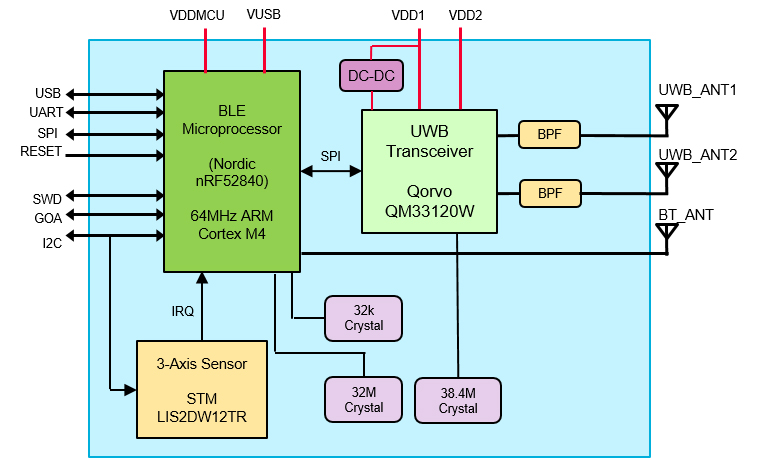

Features

Main Features

  • Support Channels : Band 5 & 9
  • UWB Chip set : Qorvo DW3110/3120
  • FCC/IC/TELEC Reference Certified (Planed)
  • Hostless module Integrated Nordic IC / nRF52840
    which also have Blutooth Low Energy function for waking up UWB and updating FW.
  • Integrated 3-Axis sensor for saving battery
  • Reference clock for UWB and MCU are embedded

Contribute to customer product

  • Smallest/highly integrated UWB module available in the market
  • 75% less square area than CoB solution
  • Frequency, Tx power and Antenna delay are calibrated for each device
  • Support Multi Antenna design and evaluation

Product Information

Item explanation
Product Type Module
Product Status Under Development
Grade Consumer
Frequency UWB Ch 5 & 9 + Bluetooth LE 2.4GHz
Frequency MHz (min) UWB 6250
Frequency MHz (max) UWB 8250
Chipset
  • Qorvo DW3110/3120
  • Nordic nRF52840
CPU Core ARM Cortex-M4
Flash / RAM 1MB / 256KB
Antenna External
RF Conn/ Antenna Not Included
Sleep Clock Internal X'tal (32.768kHz)
System Clock Internal X'tal (32MHz and 38.4MHz)
Operating Temperature Range -40 to 85
Operating Temperature °C (min) -40
Operating Temperature °C (max) 85
Mounting Type SMT
Package LGA
Dimension 10.5 × 8.3 × 1.44(max)mm
Supply Voltage (Vdc)
  • 3.0V for VDD1,VDD2 and VDDMCU
  • 5.0V for VUSB1.8V
Supply Voltage min
  • 2.5V for VDD1,VDD2 and VDDMCU
  • 4.35V for VUSB
Supply Voltage max
  • 3.6V for VDD1,VDD2 and VDDMCU
  • 5.5V for VUSB
Bluetooth 5.2
Power Class Class 1
Technology UWB + Bluetooth Low energy
Host Interface USB,UART,SPI, I2C
FCC/IC/MIC(Japan) Certified Yes (Planned)
ETSI report Yes (Planned)
ISO9001 Yes

Datasheet and Documentations

Please contact our sales or send your inquiry here for the latest datasheet and other related documentations.

Evalutation Kit

Item explanation
Product P/N LBUA5QJ2AB-EVB
Conent

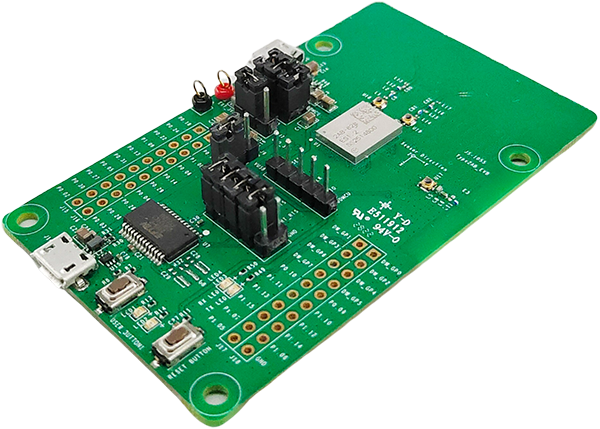

muRata UWB/Bluetooth Low Energy module Type2AB evaluation board.

To connect Type-C USB terminal on the board to PC via USB interface, It's powered and serial port is avairable.

Customer can evaluate RF performance to enter the AT command via serial terminal. If customer re-program the demo-FW into the module, also can evalate shimple TWR and PDoA functions.


Please contact our sales or send your inquiry here.
