Timing Devices (Crystal Unit / Ceramic Resonator)Product examples by application (Automotive)

Murata offers and extensive lineup of timing devices, enabling designers to select the optimum product to meet the application requirements.

List of applications by function

For those applications in which timing device products are used,
you can evaluate Murata's recommended products according to the function.
Click on the series name for details on the features and specifications of the series.

ADAS (Camera)
ADAS (Radar)
TPMS
Remote Keyless Entry (RKE)
Ethernet^®
Wireless Charger

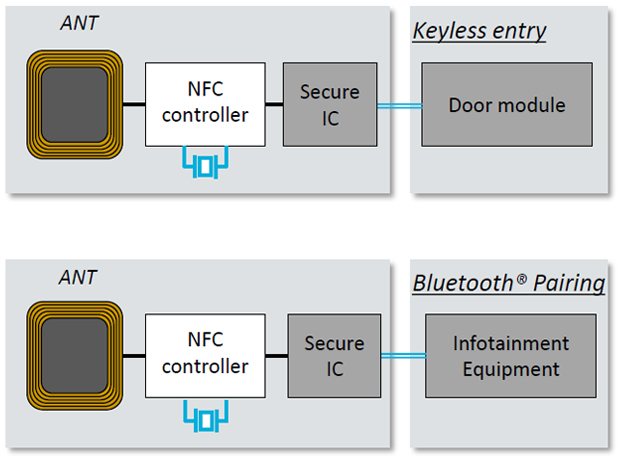

NFC (Key)
Instrument Cluster (General)
Instrument Cluster (Digital)
Parking Assist System
Surround View Camera System
Drive Recorder
EV/HEV

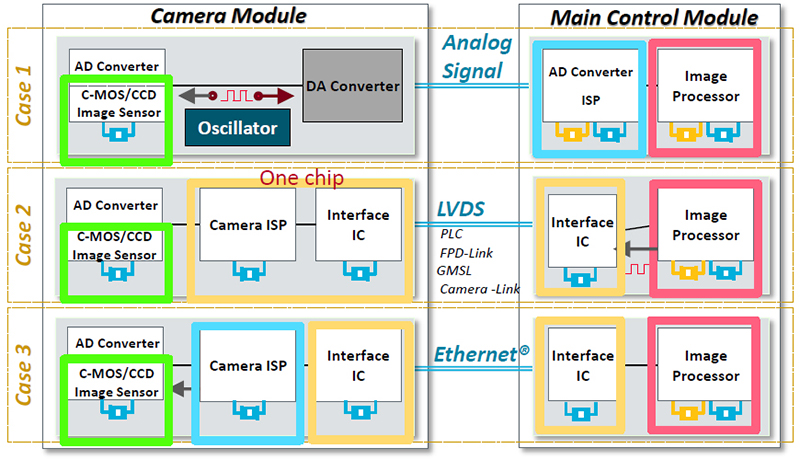

ADAS (Camera)

Image sensor
Camera ISP
Interface IC
Image processor IC

Appearance	Device	Series P/N		SPEC
	Ceramic Resonator	CSTNR-G-C series (4MHz to 7.99MHz) CSTNE-G-C series (8MHz to 13.99MHz) CSTNE-V-C series (14MHz to 20MHz) CSTNE-V-T series (16MHz, 20MHz, 24MHz)	Image Processor	Frequency Tolerance : +/-2700ppm (C series) +/-2300ppm (T series)
	Crystal Unit	XRCGB24M000F3A00R0 XRCGB27M000F3A00R0	Image sensor Camera ISP Image processor	Frequency Tolerance : +/-85ppm, +/-135ppm
		XRCGB25M000F3A00R0	Interface IC Image processor
		XRCGB30M000F5A00R0	Image sensor Camera ISP

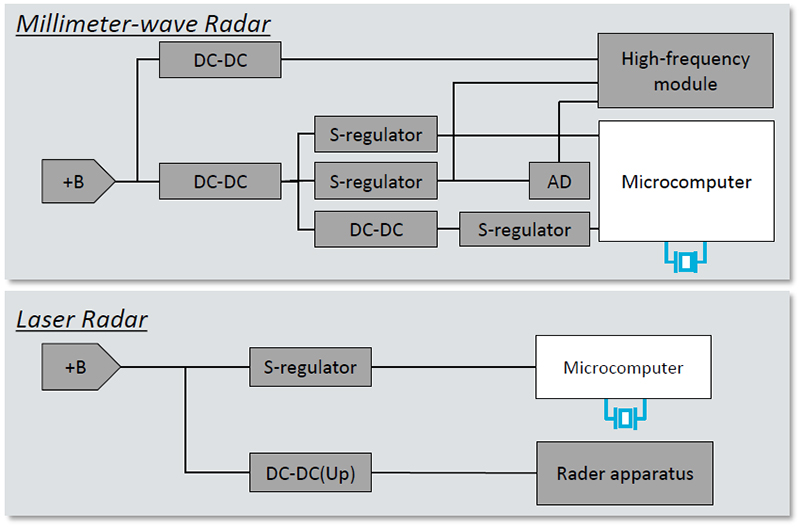

ADAS (Radar)

Appearance	Device	Series P/N		SPEC
	Crystal Unit	Representative P/N XRCGB30M000F5A00R0 (for MCU) XRCGB40M000F5A00R0 (for MCU)		Frequency Tolerance : +/-135ppm

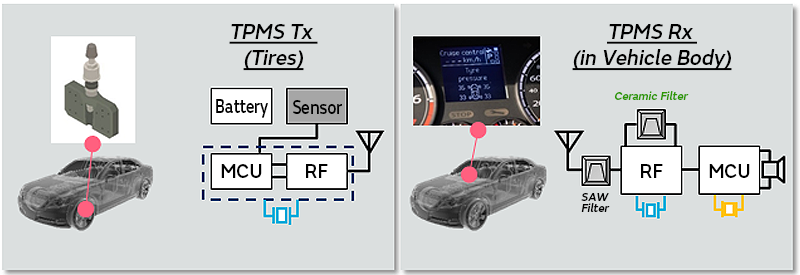

TPMS

Appearance	Device	Series P/N		SPEC
	Ceramic Resonator	CSTNR-G-C series (4MHz to 7.99MHz) CSTNE-G-C series (8MHz to 13.99MHz) CSTNE-V-C series (14MHz to 20MHz) CSTNE-V-T series (16MHz, 20MHz, 24MHz)		Frequency Tolerance : +/-2700ppm (C series) +/-2300ppm (T series)
	Crystal Unit	Representative P/N XRCGB26M000F3A00R0 (for TPMS_Tx/Rx)		Frequency Tolerance : +/-85ppm
	Battery	CR Heat-resistant (W) series		Operating Temperature Range : -40°C to 125°C

Remote Keyless Entry(RKE)

Appearance	Device	Series P/N		SPEC
	Ceramic Resonator	CSTNR-G-C series (4MHz to 7.99MHz) CSTNE-G-C series (8MHz to 13.99MHz) CSTNE-V-C series (14MHz to 20MHz) CSTNE-V-T series (16MHz, 20MHz, 24MHz)		Frequency Tolerance : +/-2700ppm (C series) +/-2300ppm (T series)
	Crystal Unit	Representative P/N XRCGB27M600F2C00R0 (for RF control)		Frequency Tolerance : +/-60ppm (-30 to 85 °C)

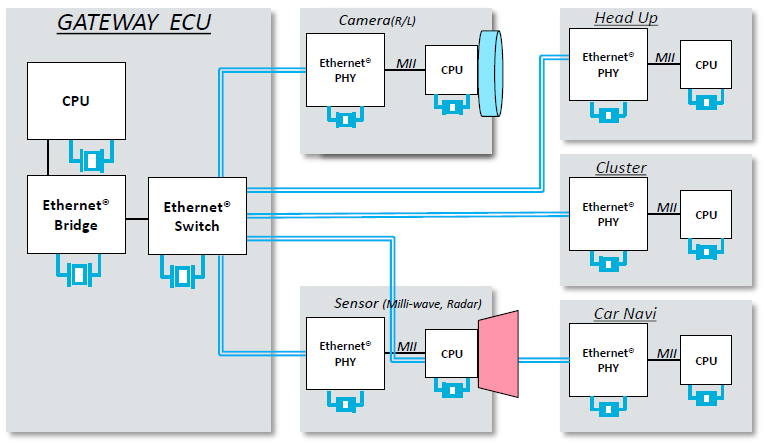

Ethernet^®

Appearance	Device	Series P/N		SPEC
	Crystal Unit	XRCGB25M000F3A00R0 (for Ethernet^® PHY) XRCGB-F-A series (24MHz to 48MHz, for CPU)		Frequency Tolerance : +/-85ppm

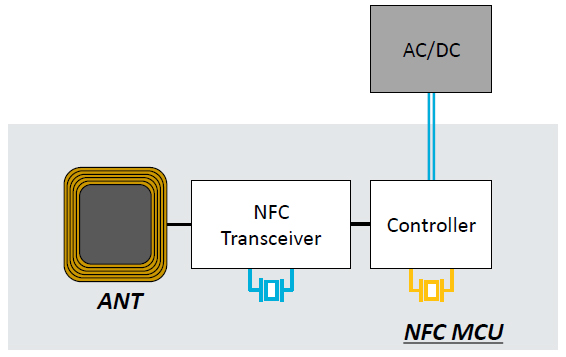

Wireless Charger

Appearance	Device	Series P/N		SPEC
	Ceramic Resonator	CSTNE8M00G55A000R0		Frequency Tolerance : +/-8000ppm
	Crystal Unit	Representative P/N XRCGB27M120F3A00R0 (for NFC Transceiver)		Frequency Tolerance : +/-85ppm

NFC (Key)

Appearance	Device	Series P/N		SPEC
	Crystal Unit	XRCGB27M120F3A00R0		Frequency Tolerance : +/-85ppm

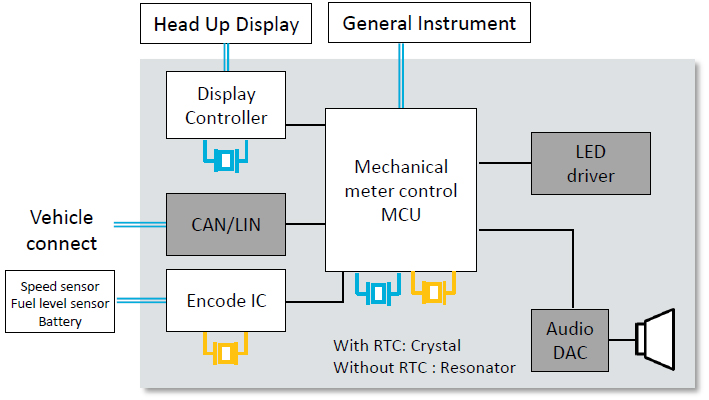

Instrument Cluster (General)

Appearance	Device	Series P/N		SPEC
	Ceramic Resonator	CSTNR-G-C series (4MHz to 7.99MHz) CSTNE-G-C series (8MHz to 13.99MHz) CSTNE-V-C series (14MHz to 20MHz) CSTNE-V-T series (16MHz, 20MHz, 24MHz)		Frequency Tolerance : +/-2700ppm (C series) +/-2300ppm (T series)
	Crystal Unit	XRCGB-F-A series (24MHz to 48MHz)		Frequency Tolerance : +/-85ppm, +/-135ppm
	Piezoelectric Sounders	PKLCS1212E24A0-R1 PKLCS1212E40A1-R1		SPL 80dB (Typ.) @10cm, ±1.5Vo-p square wave SPL 84dB (Typ.) @10cm, ±1.5Vo-p square wave
	Piezoelectric Sounders	PKMCS1818E20A0-R1		SPL 100dB (Typ.) @10cm, +12Vo-p square wave

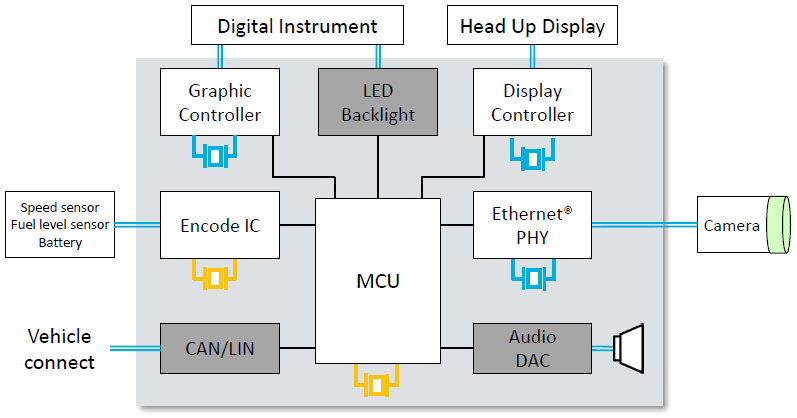

Instrument Cluster (Digital)

Appearance	Device	Series P/N		SPEC
	Ceramic Resonator	CSTNR-G-C series (4MHz to 7.99MHz) CSTNE-G-C series (8MHz to 13.99MHz) CSTNE-V-C series (14MHz to 20MHz) CSTNE-V-T series (16MHz, 20MHz, 24MHz)		Frequency Tolerance : +/-2700ppm (C series) +/-2300ppm (T series)
	Crystal Unit	XRCGB-F-A series (24MHz to 48MHz)		Frequency Tolerance : +/-85ppm, +/-135ppm
	Piezoelectric Sounders	PKLCS1212E24A0-R1 PKLCS1212E40A1-R1		SPL 80dB (Typ.) @10cm, ±1.5Vo-p square wave SPL 84dB (Typ.) @10cm, ±1.5Vo-p square wave
	Piezoelectric Sounders	PKMCS1818E20A0-R1		SPL 100dB (Typ.) @10cm, +12Vo-p square wave

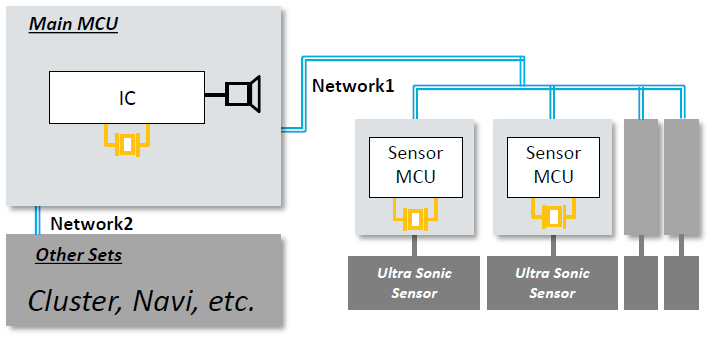

Parking Assist System

Appearance	Device	Series P/N		SPEC
	Ceramic Resonator (Standard Tol.)	CSTCR-G-B series (4MHz to 7.99MHz) CSTNE-G-A series (8MHz to 13.99MHz) CSTNE-V-C series (14MHz to 20MHz)		Frequency Tolerance : +/-8000ppm
	Ceramic Resonator (Tight Tol.)	CSTNR-G-C series (4MHz to 7.99MHz) CSTNE-G-C series (8MHz to 13.99MHz) CSTNE-V-C series (14MHz to 20MHz) CSTNE-V-T series (16MHz, 20MHz, 24MHz)		Frequency Tolerance : +/-2700ppm (C series) +/-2300ppm (T series)

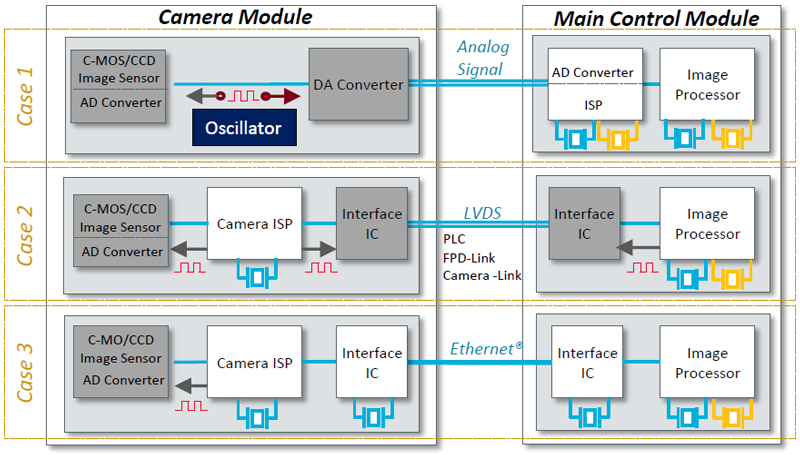

Surround View Camera System

Appearance	Device	Series P/N		SPEC
	Ceramic Resonator	CSTNR-G-C series (4MHz to 7.99MHz) CSTNE-G-C series (8MHz to 13.99MHz) CSTNE-V-C series (14MHz to 20MHz) CSTNE-V-T series (16MHz, 20MHz, 24MHz)		Frequency Tolerance : +/-2700ppm (C series) +/-2300ppm (T series)
	Crystal Unit	Representative P/N XRCGB25M000F3A00R0 (for Ethernet^®) XRCGB27M000F3A00R0 (for Camera ISP)		Frequency Tolerance : +/-85ppm

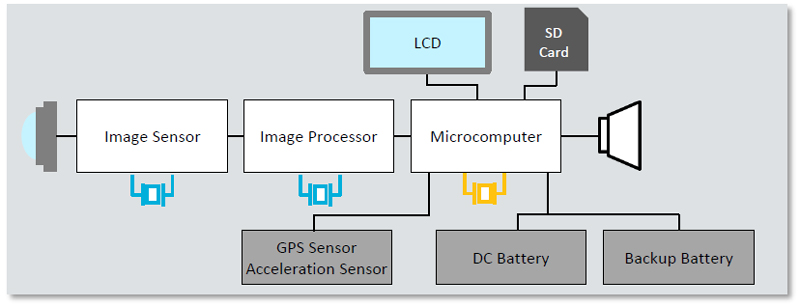

Drive Recorder

Appearance	Device	Series P/N		SPEC
	Ceramic Resonator	CSTNR-G-C series (4MHz to 7.99MHz) CSTNE-G-C series (8MHz to 13.99MHz) CSTNE-V-C series (14MHz to 20MHz) CSTNE-V-T series (16MHz, 20MHz, 24MHz)		Frequency Tolerance : +/-2700ppm (C series) +/-2300ppm (T series)
	Crystal Unit	Representative P/N XRCGB24M000F3A00R0 XRCGB27M000F3A00R0 (for Image Sensor/Processor)		Frequency Tolerance : +/-85ppm
	Piezoelectric Sounders	PKLCS1212E24A0-R1 PKLCS1212E40A1-R1		SPL 80dB (Typ.) @10cm, ±1.5Vo-p square wave SPL 84dB (Typ.) @10cm, ±1.5Vo-p square wave
	Piezoelectric Sounders	PKMCS1818E20A0-R1		SPL 100dB (Typ.) @10cm, +12Vo-p square wave

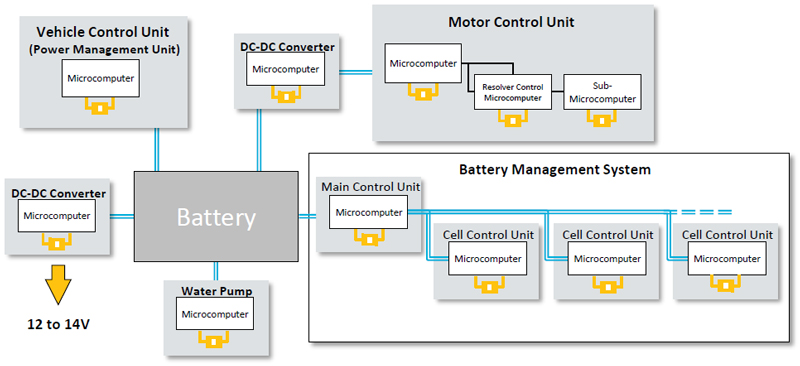

EV/HEV

Appearance	Device	Series P/N		SPEC
	Ceramic Resonator	CSTNR-G-C series (4MHz to 7.99MHz) CSTNE-G-C series (8MHz to 13.99MHz) CSTNE-V-C series (14MHz to 20MHz) CSTNE-V-T series (16MHz, 20MHz, 24MHz)		Frequency Tolerance : +/-2700ppm (C series) +/-2300ppm (T series)
