電源関連製品DOSA DC-DC Module Cross Reference Guide

Replace classic DC-DC module with vertical integration of murata's leading edge technology.

High Efficiency
Ultra Low Profile
Small Footprint
Low Input/Output Ripple
Low EMI
Excellent Thermal Performance

Technical Reference
Implementation example
DOSA Isolated Brick Cross Reference(PW<90W)
DOSA Isolated Brick Cross Reference(90W≦PW<150W)
DOSA Isolated Brick Cross Reference(150W≦PW<240W)
DOSA Isolated Brick Cross Reference(PW≧240W)
DOSA PoL Cross Reference
関連リンク

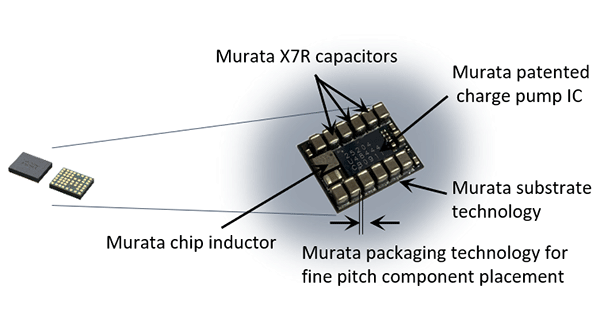

Excellent Peformance with murata's Virtually Lossless Charge Pump Techonolgy

Highly Scalable Soluiton without any external components

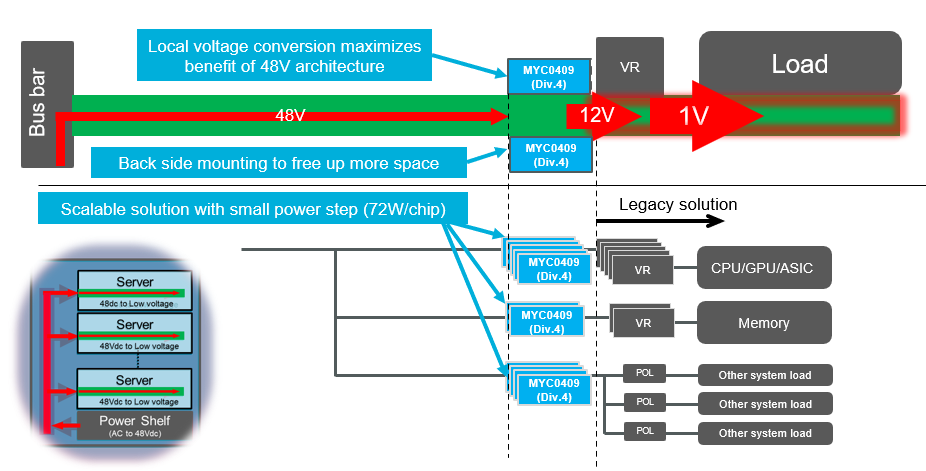

Best Possible Solution for 48V Datacenter Application

DOSA Isolated Brick Cross Reference

Evaluation kit available

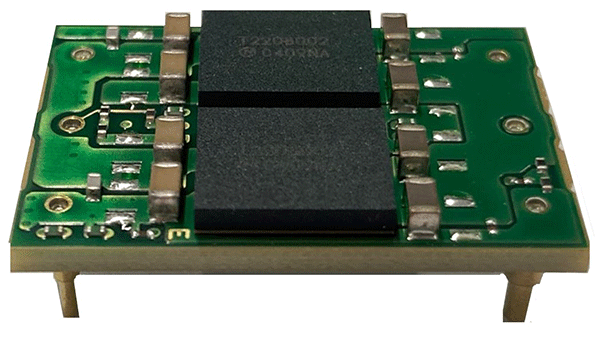

Fully pin compatible with 16th brick
Easy installation for quick system evaluation

PW<90W

Part Number	Po (W)	Form factor	Vin (V)	Vo (V)	Murata P/N	# of parallel	Po (W)	Size(mm)	Vin(V)	Vo(V)	Isolation voltage (V)	Product Page
KSTW002A5B	30	16th Brick	36-75	12	MYC0409-NA	1	72	11.5 × 9.5 × 2.0	20-60	Vin/4 (Unregulated)	N/A (Non-isolated)	Link
PKU5513E	50	16th Brick	36-75	12
V36SE12004	50	16th Brick	36-75	12
KSTW004A2B	50.4	16th Brick	36-75	12
V48SC12005	60	16th Brick	36-75	12
E48SC12005	60	8th Brick	36-75	12
KSTW006A0B	72	16th Brick	36-75	12
iSA48007A120V	78	16th Brick	36-75	12
iEA48007A120V	78	8th Brick	36-75	12
PKU4813C	84	16th Brick	36-75	12
SSQE48S0712	84	16th Brick	36-75	12

90W≦PW<150W

Part Number	Po (W)	Form factor	Vin (V)	Vo (V)	Murata P/N	# of parallel	Po (W)	Size(mm)	Vin(V)	Vo(V)	Isolation voltage (V)	Product Page
V48SC12007	90	16th Brick	36-75	12	MYC0409-NA	2	144	11.5 × 20.0 × 2.0	20-60	Vin/4 (Unregulated)	N/A (Non-isolated)	Link
E48SC12008	96	8th Brick	36-75	12
V48SC12008	99.6	16th Brick	36-75	12
PKU4166C	100	16th Brick	36-75	12
PKU4913D	100	16th Brick	36-75	12
SRSB-80T12C	100	16th Brick	45-55	12
SRSB-80T12L	100	16th Brick	36-75	12
PKU4113D	120	16th Brick	36-75	12
SQE48T10120	120	8th Brick	36-75	12
E48SC12010	120	8th Brick	36-75	12
E48SH12010	120	8th Brick	36-75	12
PKB4113C	144	8th Brick	36-75	12
0RCY-C2T12	144	8th Brick	36-75	12

150W≦PW<240W

Part Number	Po (W)	Form factor	Vin (V)	Vo (V)	Murata P/N	# of parallel	Po (W)	Size(mm)	Vin(V)	Vo(V)	Isolation voltage (V)	Product Page
E48SH12013	150	8th Brick	36-75	12	MYC0409-NA	3	216	11.5 × 30.5 × 2.0	20-60	Vin/4 (Unregulated)	N/A (Non-isolated)	Link
PKU4213D	204	16th Brick	36-75	12	MYC0409-NA	3	216	11.5 × 30.5 × 2.0	20-60	Vin/4 (Unregulated)	N/A (Non-isolated)	Link

PW≧240W

Part Number	Po (W)	Form factor	Vin (V)	Vo (V)	Murata P/N	# of parallel	Po (W)	Size(mm)	Vin(V)	Vo(V)	Isolation voltage (V)	Product Page
PKB4204	240	8th Brick	40-75	12	MYC0409-NA	4	288	11.5 × 41.0 × 2.0	20-60	Vin/4 (Unregulated)	N/A (Non-isolated)	Link
0RCY-D4T12	240	8th Brick	36-75	12
0RCP-D4T12	240	8th Brick	36-75	12
SQE48T20120	240	8th Brick	36-75	12
E48SC12020	240	8th Brick	36-75	12
E48SP12020	240	8th Brick	36-75	12

DOSA PoL Cross Reference

Part Number	Io (A)	Vin (V)	Vo (V)	Size(mm)	Communication	Murata P/N	Io (A)	Vin (V)	Vo (V)	Size(mm)	Communication	Product Page
PVX003	3	3.0-14.4	0.6-5.5	12.2 × 12.2 × 6.25	Analog	MYTNA1R84RELA2RA	4	6.0-14.4	0.7-1.8	10.5 × 9.5 × 2.1	Analog	Link
iCF12003A007V	3	4.5-14.0	0.7-5.5	12.2 × 12.2 × 4.25	Analog
SLAN-03D2A	3	3.0-14.4	0.6-5.5	12.2 × 12.2 × 6.25	Analog
PDT003	3	3.0-14.4	0.6-5.5	12.2 × 12.2 × 6.25	PMBus	MYTNC1R84RELA2RA	4	6.0-14.4	0.7-1.8	10.5 × 9.5 × 2.1	I²C	Link
iCF12005A007V	5	4.5-14.0	0.7-5.5	12.2 × 12.2 × 4.45	Analog	MYTNA1R86RELA2RA	6	6.0-14.4	0.7-1.8	10.5 × 9.5 × 2.1	Analog	Link
PVX006	6	3.0-14.4	0.6-5.5	12.2 × 12.2 × 7.25	Analog
SLAN-06D2A	6	3.0-14.4	0.6-5.5	12.2 × 12.2 × 7.30	Analog
PDT006	6	3.0-14.4	0.6-5.5	12.2 × 12.2 × 7.25	PMBus	MYTNC1R86RELA2RA	6	6.0-14.4	0.7-1.8	10.5 × 9.5 × 2.1	I²C	Link
BMR4612	6	4.5-14.0	0.6-5.0	12.2 × 12.2 × 8.00	PMBus	MYTNC1R86RELA2RA	6	6.0-14.4	0.7-1.8	10.5 × 9.5 × 2.1	I²C	Link
